Emerson Liebert HiPulse E Series - Page 13

Communication System Manual UPS System: HIPULSE E
(Modbus/Jbus Interface) Mechanical Installation
(04/07) Page 3-3

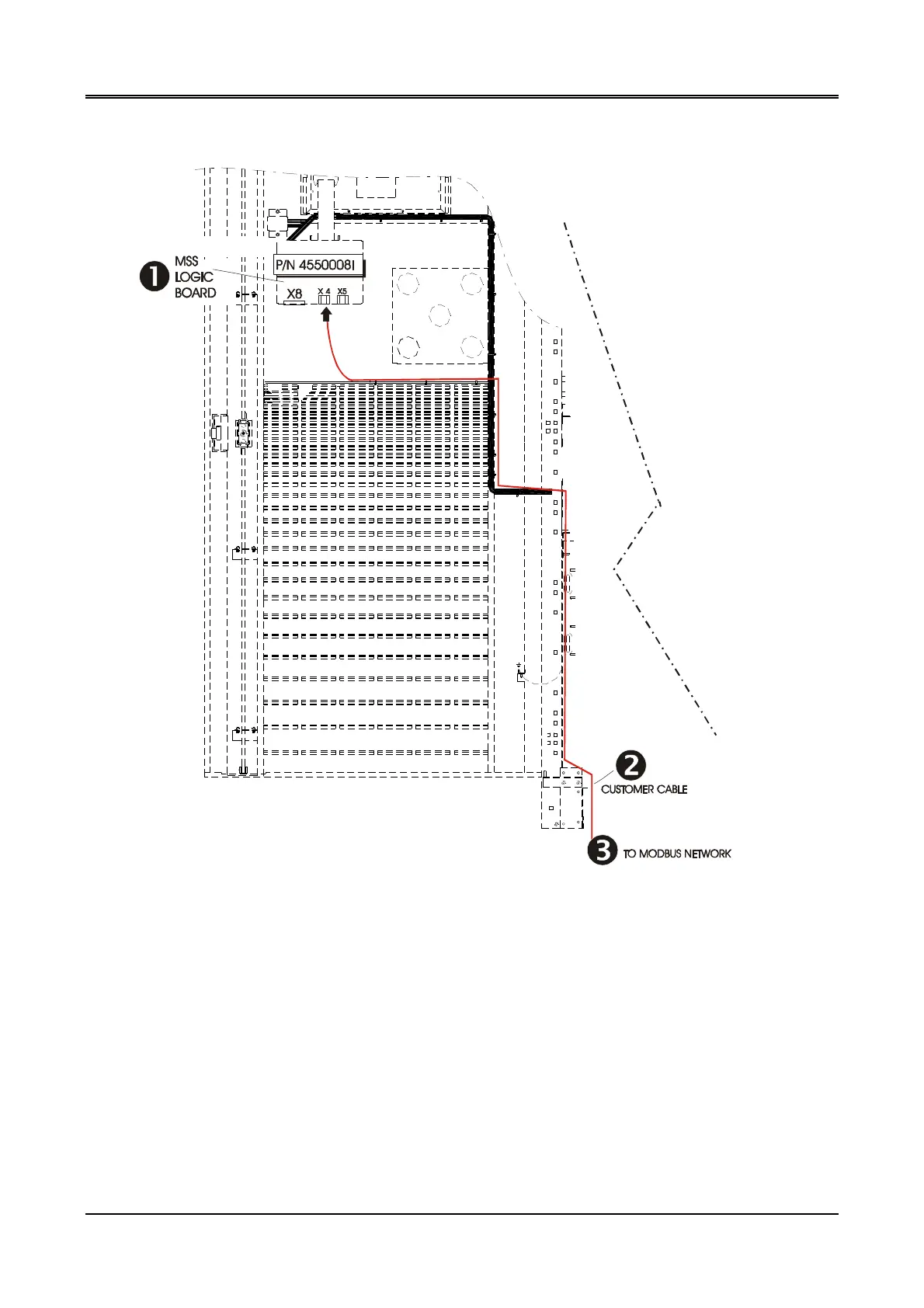

Figure 3-3 Location of Operator Logic Board (P/N 4550008I) on the HIPULSE E MSS
and connection with the Modbus network (BMS).
