Communication System Manual
UPS System: HIPULSE E
(Modbus/Jbus Interface) Programming Operator Panel
(04/07)
Page 4-1
4. PROGRAMMING PARAMETERS ON THE OPERATOR PANEL DISPLAY
During installation, a series of parameters must be programmed to permit the UPS (or MSS) to function with the
MODBUS protocol; this is done with the menu in the Operator Panel display.
Note: Modifications to set-up must be made strictly by qualified personnel only.
4.1 Operator Panel
The Operator Panel display is located on the front of the device. The function keys are used during programming to
accept current selections or modify them to suit the user’s needs.
The functions of individual keys are described below; refer to the User Manual for more detailed information.
ENTER
Used to confirm selection and go on to the next window.
If a parameter has been entered or selected, it will be saved in memory when you
press ENTER.
ESC
ESC cancels the last action and returns to the previous window. If pressed twice, it
will take you back to the first window. Press ESC when entering data or parameters
to exit without saving.
MENU keys may be used to move the cursor around within the window to make a
selection.
UP
Moves the cursor up through available choices in the window. When a setting has
been selected, it moves the cursor one character to the right.
DOWN
Moves the cursor downward during selection. When a setting has been selected,
scrolls through the table of values stored in memory for that setting, with the current
value highlighted by the cursor.
ENTER
ESC
UP
DOWN
MENU
ESC

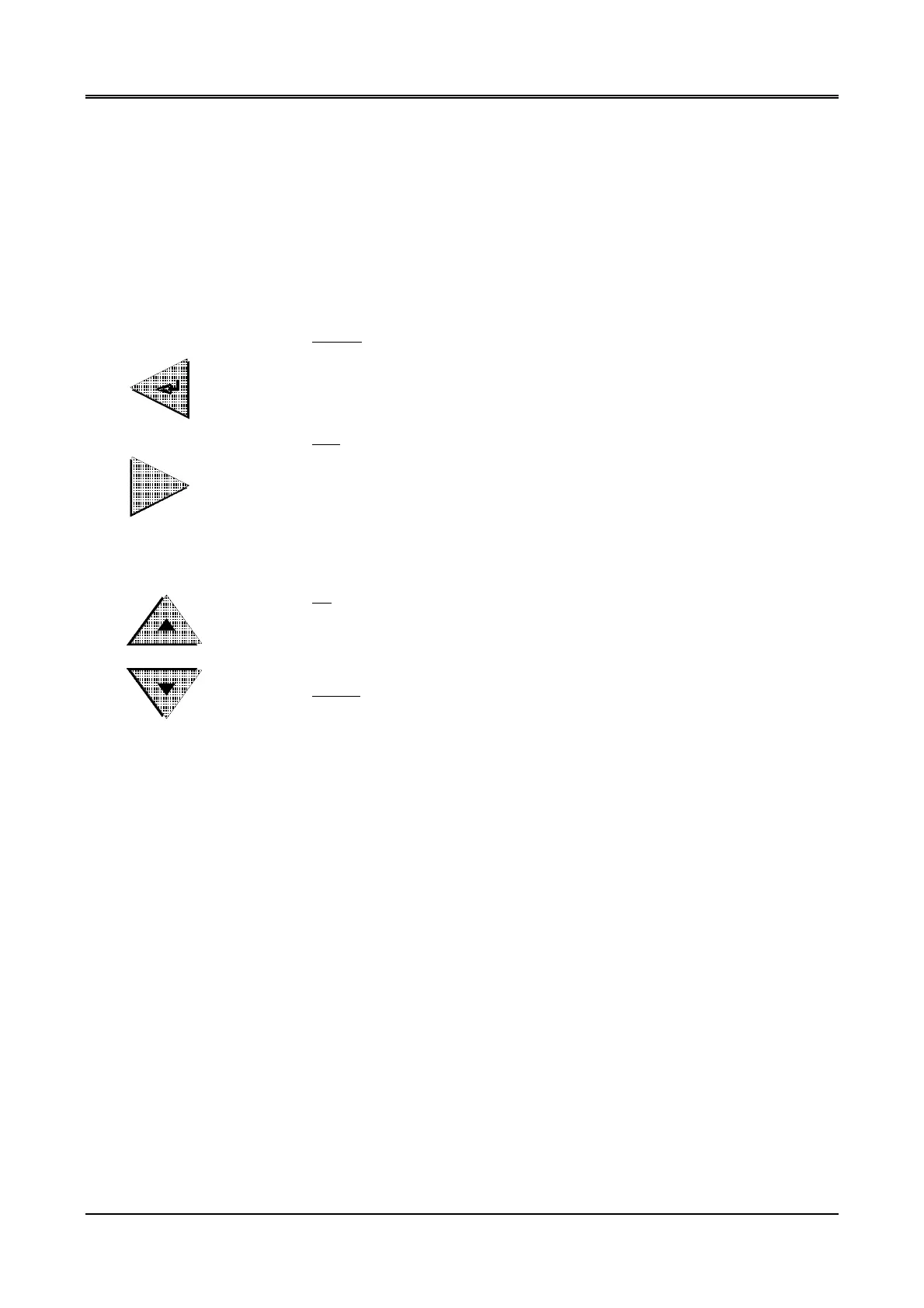

Fig. 4-1 Operator Panel Keys
