Liebert iCOM Display Components and Functions

Liebert

iCOM

for Liebert DSE

™

Unit Screen

The Unit screen provides a summary of individual unit operations, temperatures and unit status. The

temperatures at the top of the main unit screen are determined by the configuration of the Liebert

iCOM. The values are based on which sensors are used for controlling airflow, cooling capacity and

humidification.

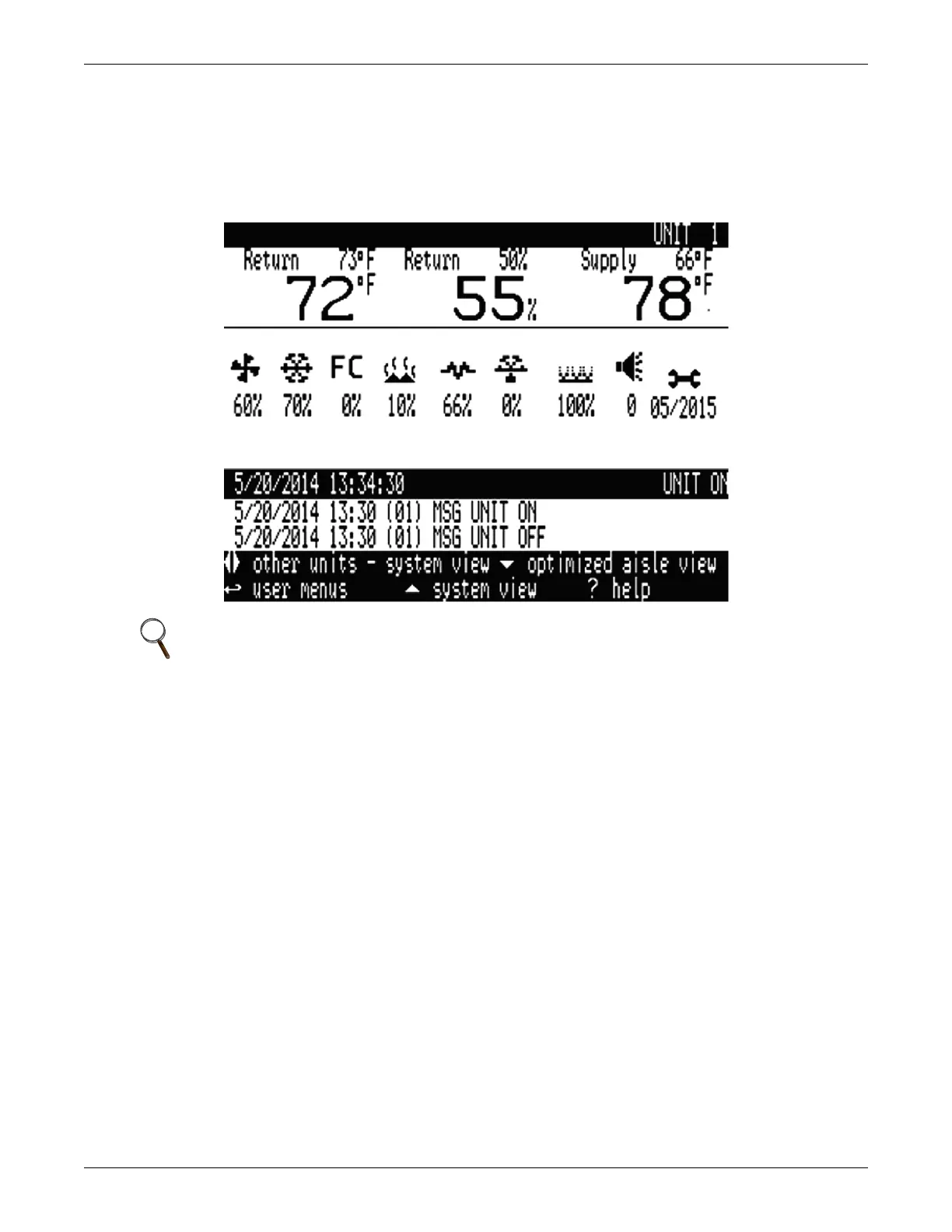

Figure 6 Unit screen

NOTE

A simple unit screen is shown above. The unit screen type may be programmed differently

based on user preference. See Liebert iCOM Display Readout on page 10 for more

information.
