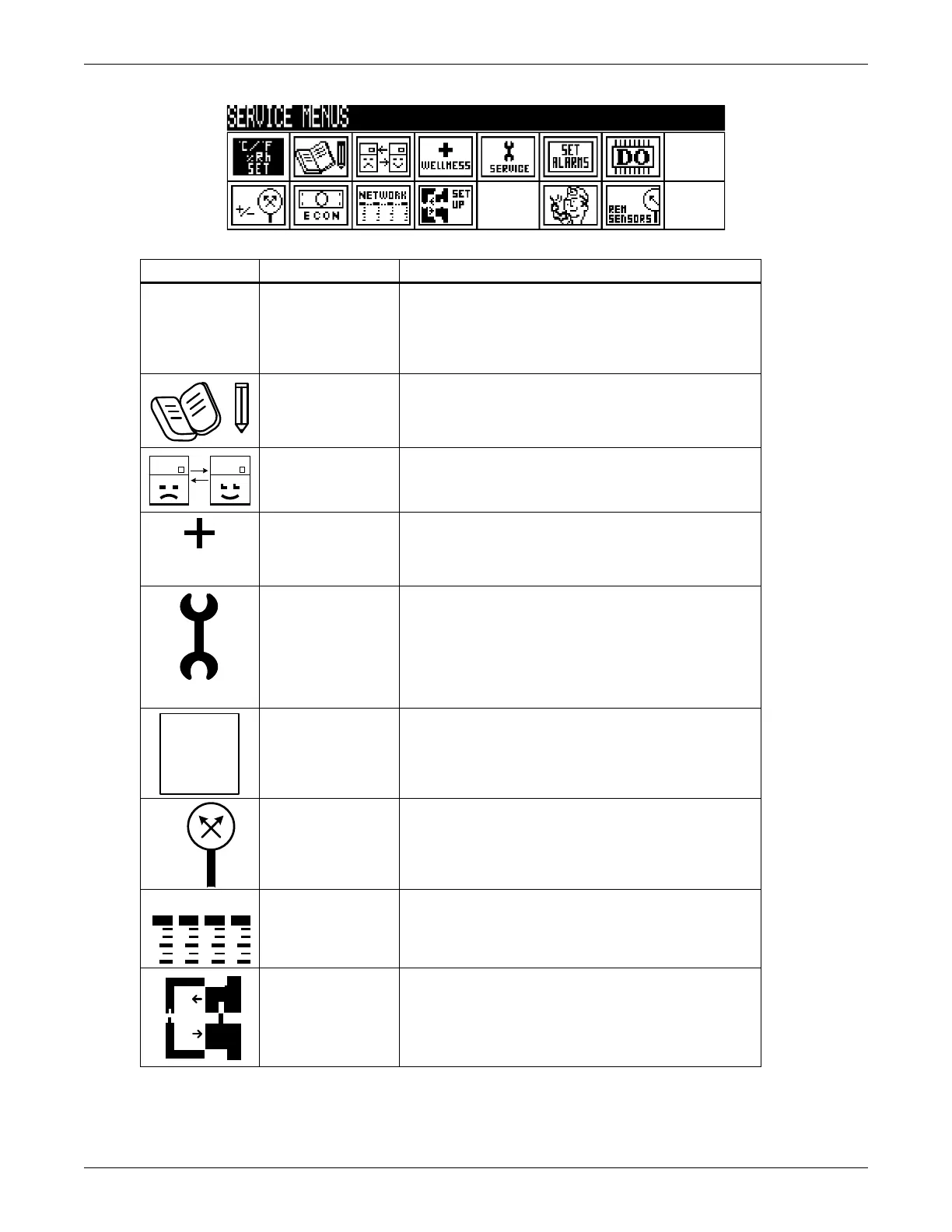

Figure 15 Service menu icons and descriptions
Table 4 Service menu icons
Icon Name
Description
Setpoints To view and change temperature and humidity setpoints
Unit Diary
Shows all entered program changes and maintenance
performed on the unit
Standby Settings/
Lead-Lag
Allows lead/lag setup when multiple units are connected
Maintenance/
Wellness Settings
Allows setting maintenance interval reminder,
maintenance message, number of unit starts and stops,
and time since last maintenance
Diagnostics/
Service Mode
Allows troubleshooting, manual mode, read analog and
digital inputs
Set Alarms Allows enable, disable and settings for alarms
Sensor
Calibration/Setup
Allows calibration of sensors
System/Network
Setup
Allows setup and U2U communication for multiple units
Options Setup Allows setup of component operation
Service Menu
password: 5010
