Unit Screen with EconoPhase View
The unit screen with EconoPhase View provides a summary of individual unit operations including
return and supply temperatures, EconoPhase Status, Pump Status, and other key information to the
EconoPhase circuit.

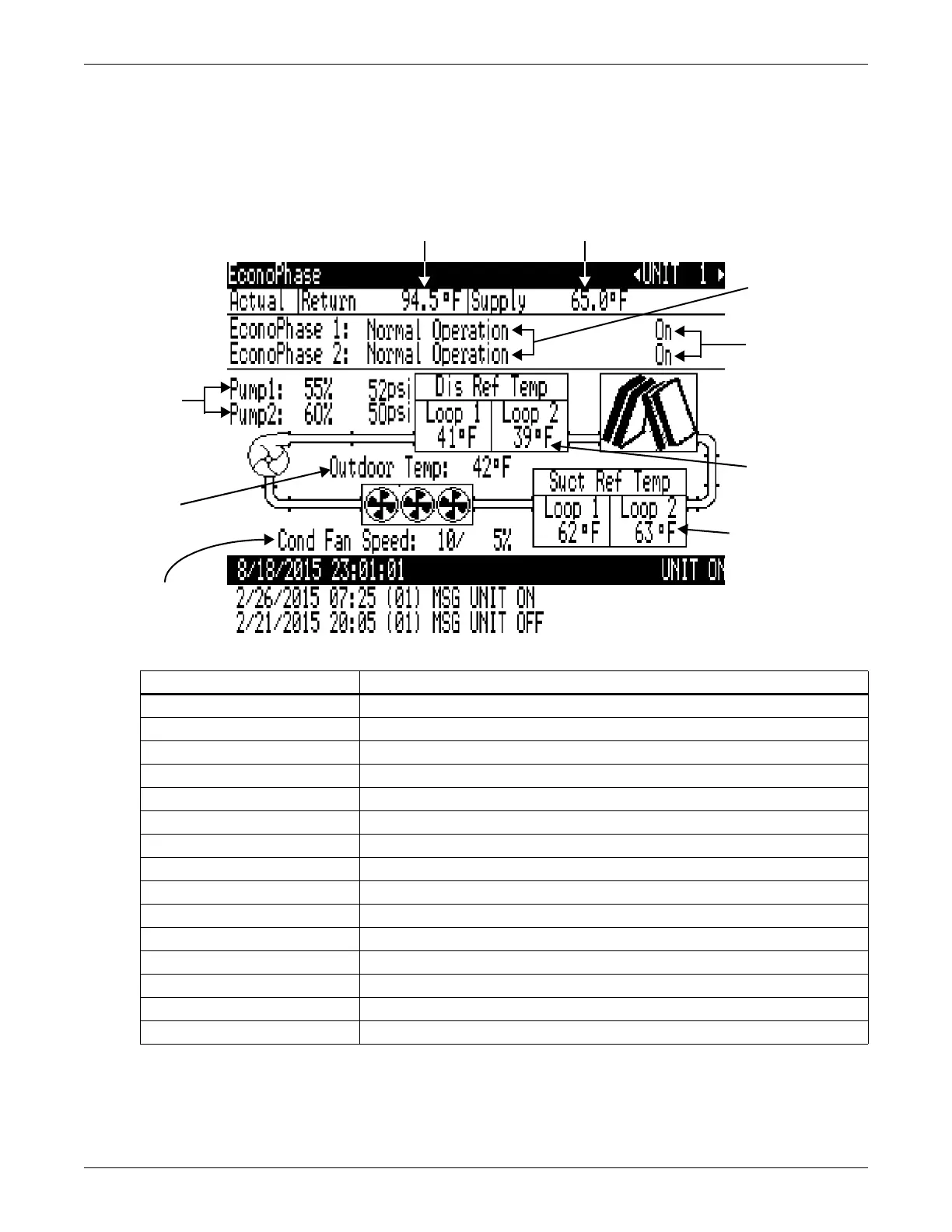

Figure 8 Unit Screen with EconoPhase View
Table 2 Liebert EconoPhase status
EconoPhase Status Status Description
Normal Operation PRE mode is active (pumps may be on or off).
PB Comms Error PRE pump board comms error.
GC Comms Error GC board comms error.
EEV Comms Error EEV board comms error.
Pump Recovery Time Temporary pump failure (will try later).
Pump Cycle Lock-Out Lock-Out too many pump-to-compressor transitions @ cold ambient.
Outdoor Temp Too High Outside Temperature too high for PRE pump operation.
Unit Is Off Unit is OFF (no cooling, heating, etc.).
Transitioning to PRE Mode Transition to PRE, waiting for the compressor to stop.
Pump Failure Permanent pump failure.
Not Configured for Operation The Pump has not been enabled.
Sensor Reading(s) Invalid Liebert Microchannel ambient or iCOM control (supply, remote, or return) error.
Other Waiting for other circuit
Compressor Dehum Op Dehumidification operation has priority over Mixed/Pump at this time.
Waiting for Reduced Cntrl Temp Control temperature too high to start the pump.
EconoPhase
Operation State
Pumps 1 and
2 Status
Return Air
Temperature
Supply Air
Temperature
EconoPhase
Pump Speed
and Differential
Pressure
Highest Outdoor
Temperature
Sensed by
Connected
Liebert MC
Supply Air
Temperature
Suction Refrigerant
Temperature for
Each Loop
Pump Discharge
Refrigerant
Temperature for
Each Loop
