Emerson Liebert iCOM - Service-Icom-DO Setup Menu Screens; Figure 120 Set Alarms Screen; Figure 121 Icom-DO Overview and Override Screen

To Next Page

To Previous Page

Service Menu Parameters

139 Liebert

iCOM

for Liebert DSE

™

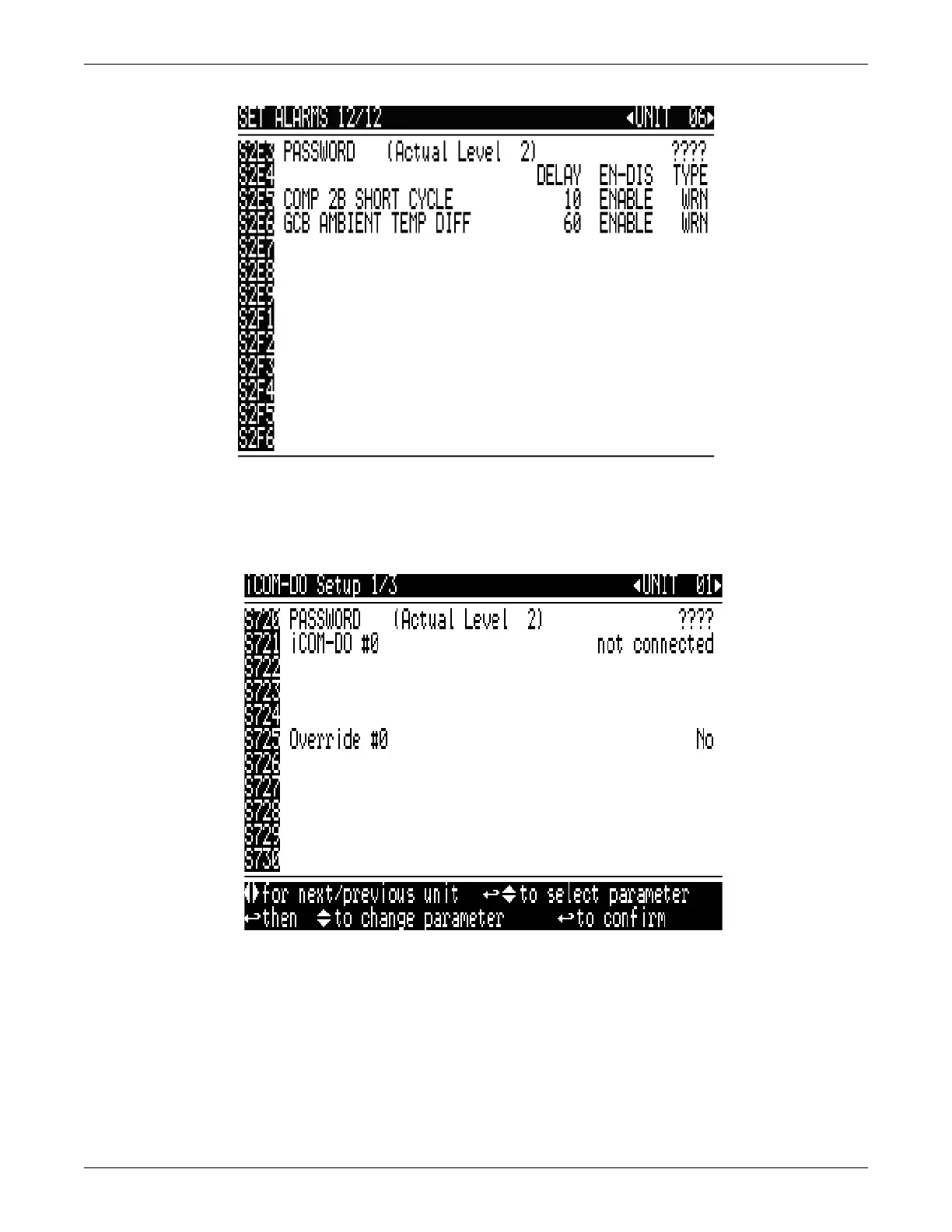

Figure 120 Set alarms screen, page 12 of 12

8.6 Service-iCOM-DO Setup Menu Screens

The iCOM-DO Setup menu is used to configure the Liebert iCOM-DO.

Figure 121 iCOM-DO overview and override screen, page 1 of 3

S721 Liebert iCOM-DO

™

—Shows the connection status of a Liebert iCOM-DO card. It displays

“connected” when a Liebert iCOM-DO card has been set up and connected to the Liebert iCOM via the

controller area network (CAN) bus.

S725 Override—Permits manual testing the Liebert iCOM-DO by activating each output on the

following screen.
