Emerson Micro Motion 1000 Series

Configuration and Use Manual 121
Measurement Performance
Measurement Performance TroubleshootingCustody TransferCompensation

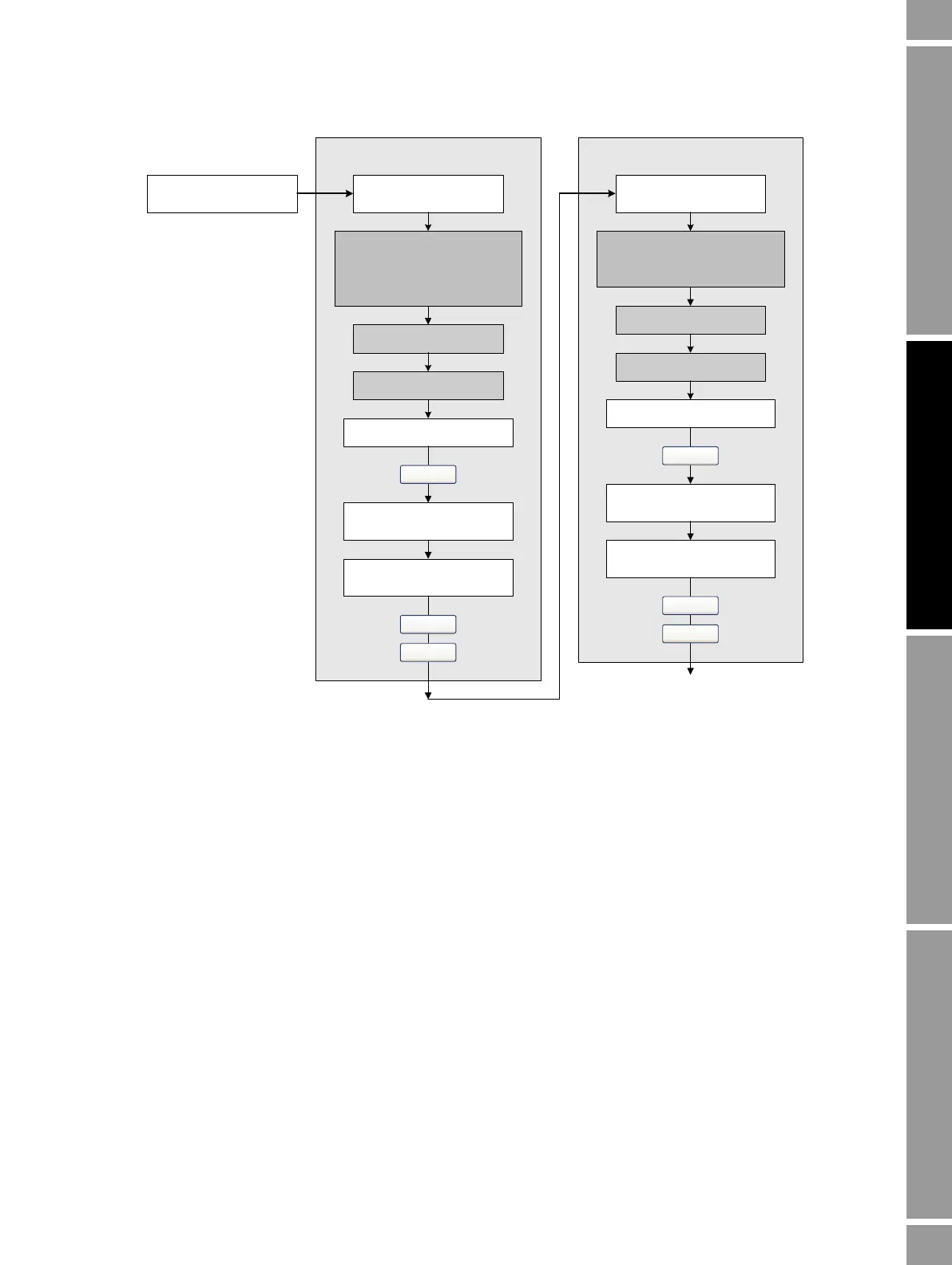

Figure 10-14 D1 and D2 density calibration – Communicator
Enter density of D1 fluid
Density Calibration
Complete message
Calibration in Progress
message
D1 calibration
Close shutoff valve
downstream from sensor
Fill sensor with D1 fluid Fill sensor with D2 fluid
D2 calibration
OK
1 Dens Pt 1
Perform Cal
OK
Home
Enter density of D2 fluid
Density Calibration
Complete message
Calibration in Progress
message
OK
2 Dens Pt 2
Perform Cal
OK
Home
Done
On-Line Menu >
3 Diag/Service >
3 Calibration >
2 Density cal
3 Diag/Service >
3 Calibration >
2 Density cal
