170 Micro Motion Series 1000 and Series 2000 Transmitters
Flowmeter Installation Types and Components

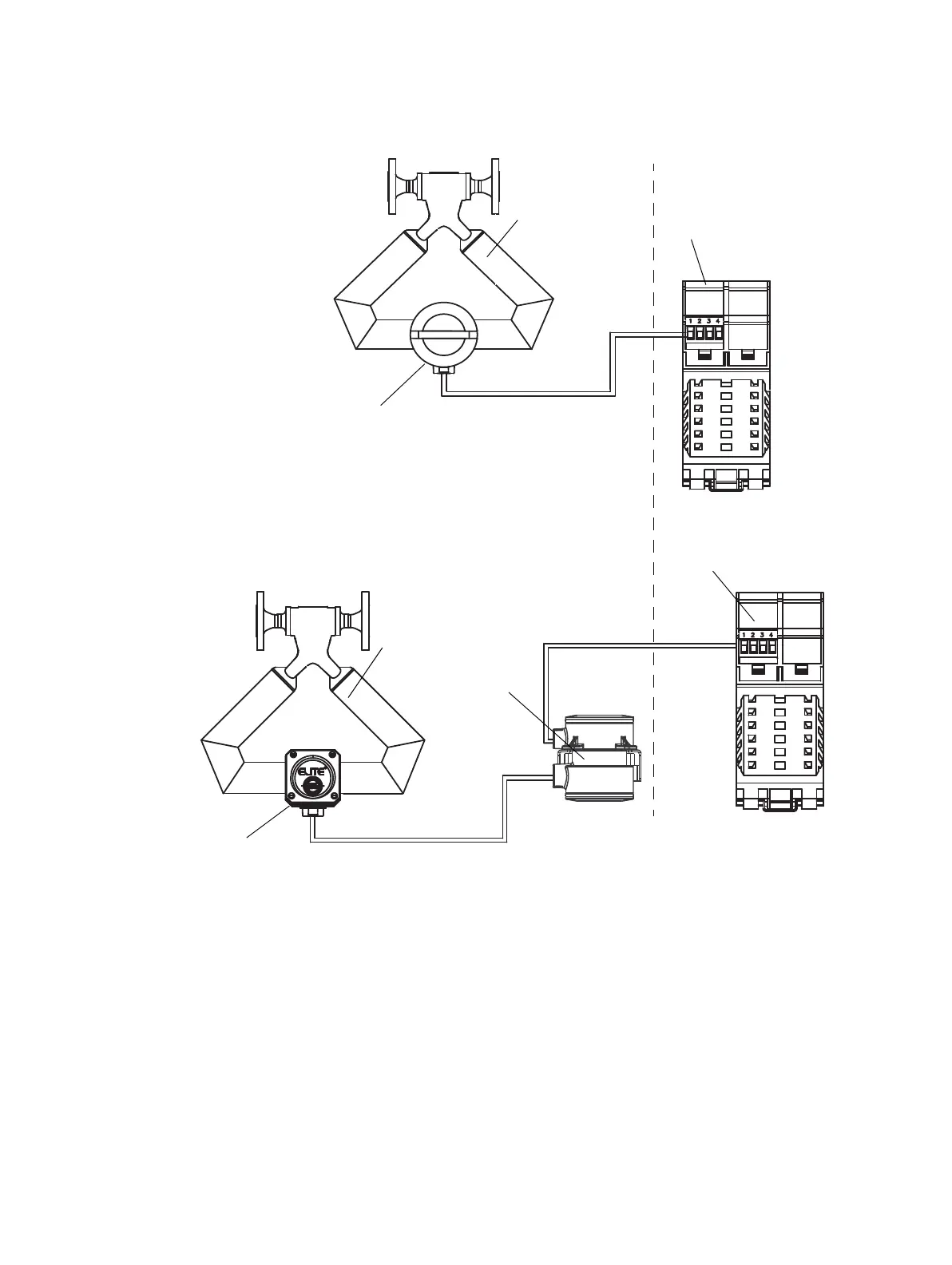

Figure B-1 Installation types – Model 1500/2500 transmitters
Model 1500 or 2500
transmitter (top view)
Sensor
Core processor
(standard or enhanced)
4-wire cable
Sensor
Core processor
(standard only)
Junction box
9-wire cable
4-wire cable
4-wire remote
Remote core processor with remote transmitter
Hazardous area Safe area
Model 1500 or 2500
transmitter (top view)
