Configuration and Use Manual 215
Menu Flowcharts – Model 1700/2700 AN Transmitters
Model 1700/2700 IS Display CodesModel 2700 CIOModel 1700/2700 AN

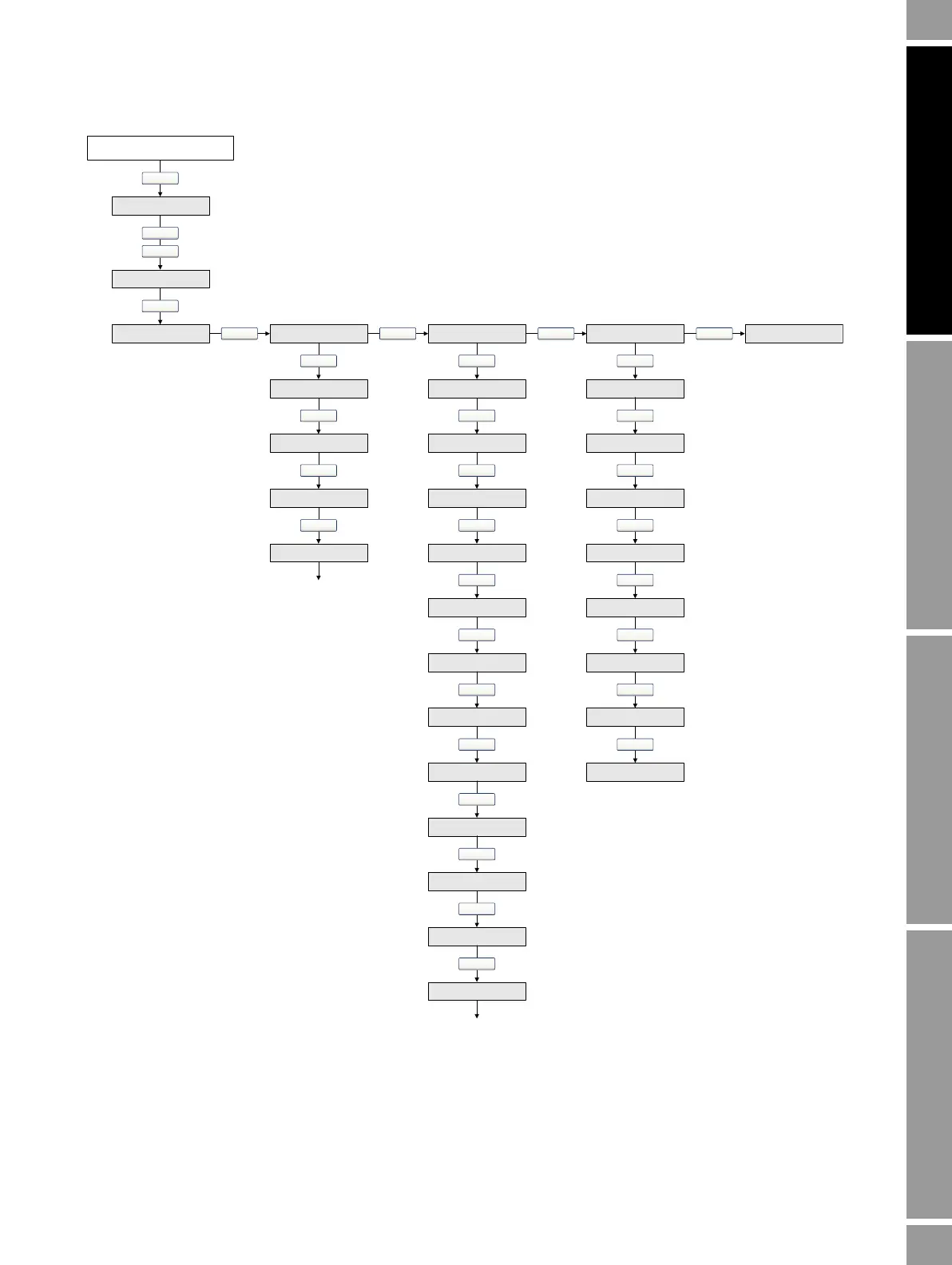

Figure E-16 Display menu – Off-line maintenance: Configuration continued
OFF-LINE MAINT
Scroll and Select simultaneously
for 4 seconds
Scroll
Select
Select
Scroll
CONFG
UNITS
MASS
MTR F
VOL
Select
Scroll
Scroll
DENS
EXIT
Scroll
Scroll Scroll
TOTALS RESET
DISPLAY
TOTALS STOP
DISPLAY OFFLN
(1)
Select
Scroll
Scroll
Scroll
DISPLAY ALARM
EXIT
Scroll
DISPLAY ACK
Scroll
AUTO SCRLL
(2)
Scroll
CODE OFFLINE
(3)
Scroll
DISPLAY RATE
DISPLAY BKLT
DISPLAY LANG
Scroll
Scroll
Scroll
Scroll
ADDRESS HART
COMM
LOOP CURR HART
EXIT
Select
Scroll
Scroll
Scroll
LOCK
CODE ALARM
(3)
PROTOCOL
BAUD
PARITY
STOP BITS
Scroll
Scroll
Scroll
Scroll
ADDRESS MBUS
Scroll
Scroll
(1) If you disable access to the offline menu, the offline
menu will disappear as soon as you exit. To
re-enable access, you must use ProLink II or the
Communicator.
(2) If Auto Scroll is enabled, a Scroll Rate screen is
displayed immediately after the Auto Scroll screen.
(3) If either password is enabled, a Change Code
screen will be displsayed.
To Next Page
