Emerson Micro Motion Configuration And Use Manual

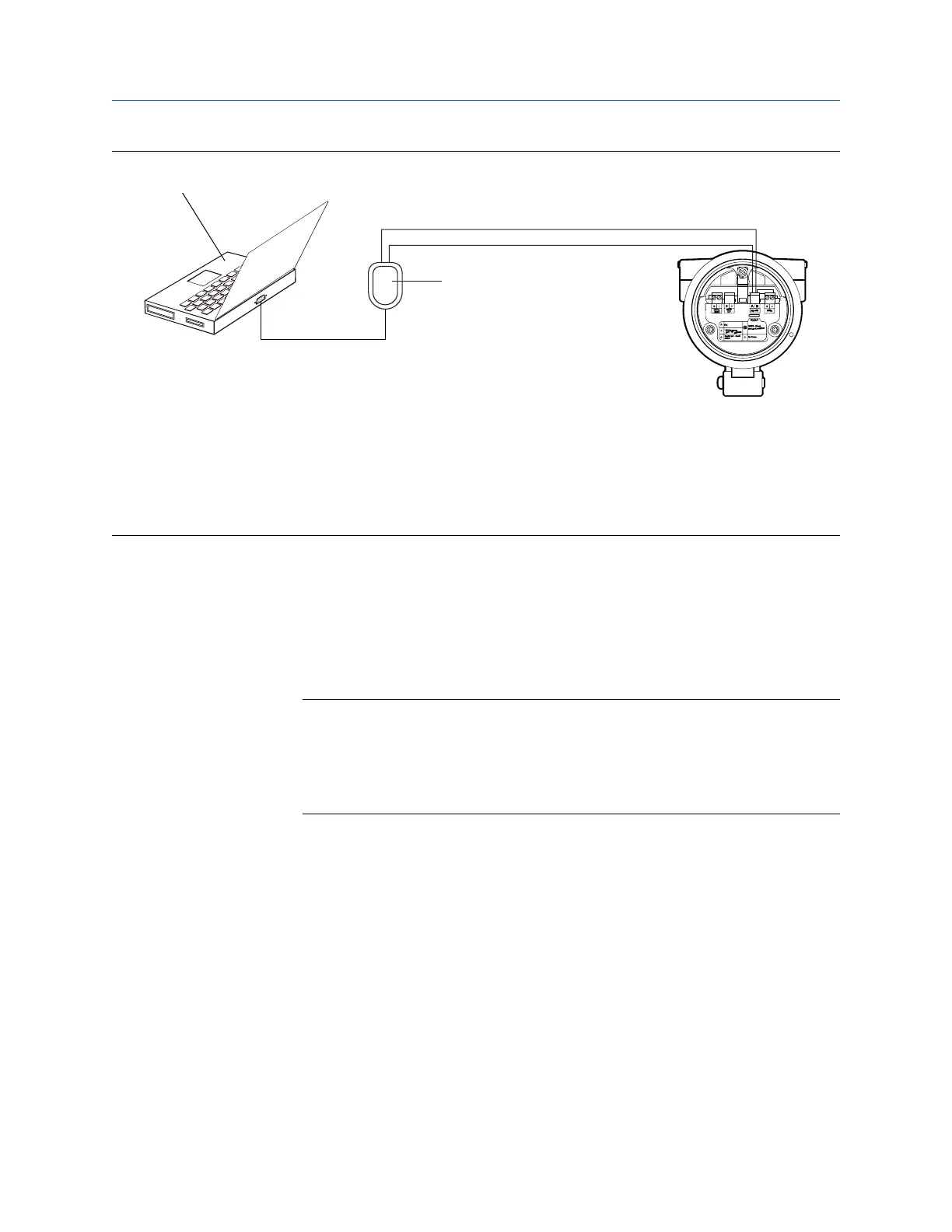

Connection to RS-485 terminalsFigure C-1:
A
C
B
A. PC
B. RS‐232 to RS‐485 converter
C. Transmitter with end‐cap removed
Note
This figure shows a serial port connection. USB connections are also supported.
3. To connect over the RS-485 network:
a. Attach the leads from the signal converter to any point on the network.
b. Add resistance as necessary.
c. Ensure that the PLC or DCS is not trying to communicate to this meter at this
time.
Restriction
The meter does not support concurrent connections from ProLink III and a PLC or DCS. If
another host is already communicating with the meter, ProLink III will not be able to
connect, but its connection attempts will corrupt messages from the other host. To make
a ProLink III connection, you can temporarily stop host communications or you can
disconnect the cable from the host.
Using ProLink III with the transmitter
184 Micro Motion
®
Fork Density Meters (FDM)

Emerson Micro Motion Specifications

General

Category	Measuring Instruments
Manufacturer	Emerson
Brand	Micro Motion
Type	Coriolis Flow Meter
Output	4-20 mA, HART, Foundation Fieldbus, Profibus, Modbus
Power Supply	24 V DC
Material	Stainless Steel, Hastelloy
Process Connection	Flanged, Threaded
Certifications	ATEX, IECEx, CSA, SIL
Pressure Rating	Varies by model; up to 10, 000 psi (690 bar)
Temperature Range	Varies by model; -400 to 750°F (-240 to 400°C)
