Emerson Micro Motion Configuration And Use Manual

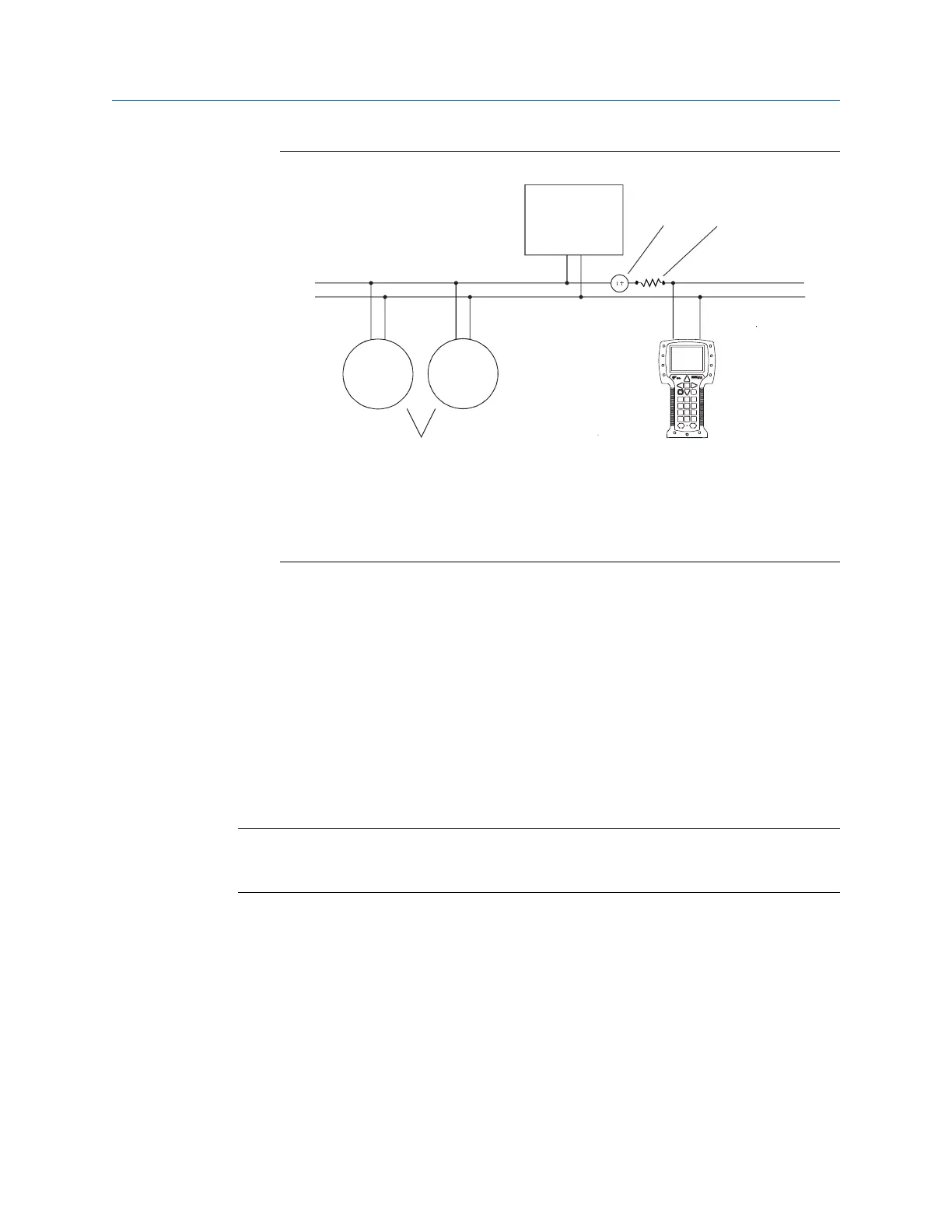

Field Communicator connection to multidrop networkFigure D-3:
A
C
D
B
E
A. Field Communicator
B. Devices on the network
C. External power supply (may be provided by the PLC)
D. 250–600
Ω resistance (may be provided by the PLC)
E. Master device
4. Turn on the Field Communicator and wait until the main menu is displayed.
5. If you are connecting across a multidrop network:
• Set the Field Communicator to poll. The device returns all valid addresses.
• Enter the HART address of the transmitter. The default HART address is 0.
However, in a multidrop network, the HART address has probably been set to a
different, unique value.
Postrequisites
To navigate to the Online menu, choose HART Application > Online. Most configuration,
maintenance, and troubleshooting tasks are performed from the Online menu.
Tip
You may see messages related to the DD or active alerts. Press the appropriate buttons to ignore the
message and continue.
Using the Field Communicator with the transmitter
198 Micro Motion
®
Fork Density Meters (FDM)

Emerson Micro Motion Specifications

General

Category	Measuring Instruments
Manufacturer	Emerson
Brand	Micro Motion
Type	Coriolis Flow Meter
Output	4-20 mA, HART, Foundation Fieldbus, Profibus, Modbus
Power Supply	24 V DC
Material	Stainless Steel, Hastelloy
Process Connection	Flanged, Threaded
Certifications	ATEX, IECEx, CSA, SIL
Pressure Rating	Varies by model; up to 10, 000 psi (690 bar)
Temperature Range	Varies by model; -400 to 750°F (-240 to 400°C)
