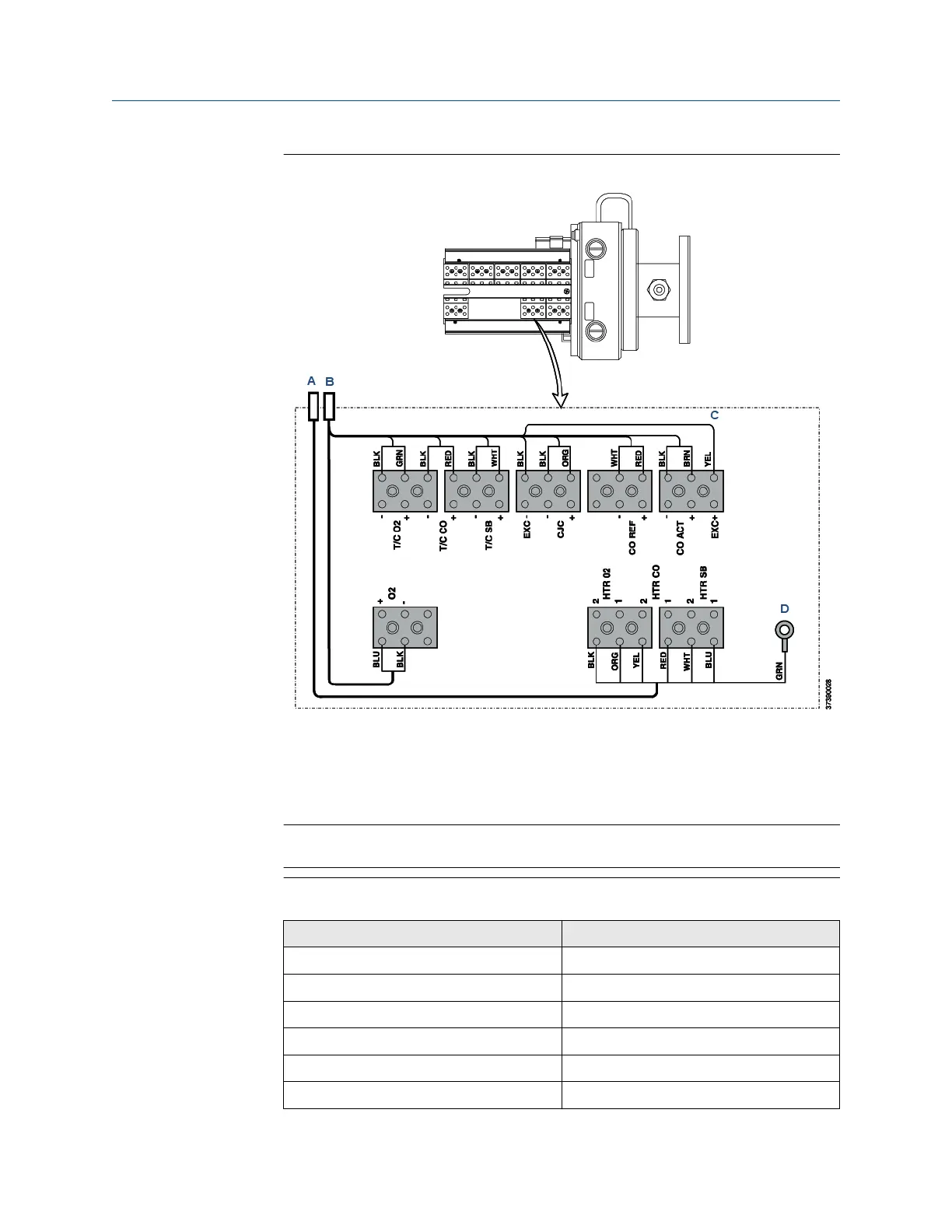

Figure 10-4: Sensor Housing Terminals
A. Heater power cable
B. Signal cable
C. Sensor housing
D. To ground screw
Note
Wire colors shown are for cables provided by Emerson.
Table 10-1: Sensor Housing Terminal Connections
Wire color Connects to
Black Thermocouple (T/C) O
2
-
Green T/C O
2
+
Black T/C CO-
Red T/C CO+
Black T/C sample block (SB)-
White T/C SB+
Manual Maintenance and service
00809-0500-4880 December 2022
Rosemount OCX8800A 243
