Drip loops minimize the possibility that moisture will damage the
electronics.

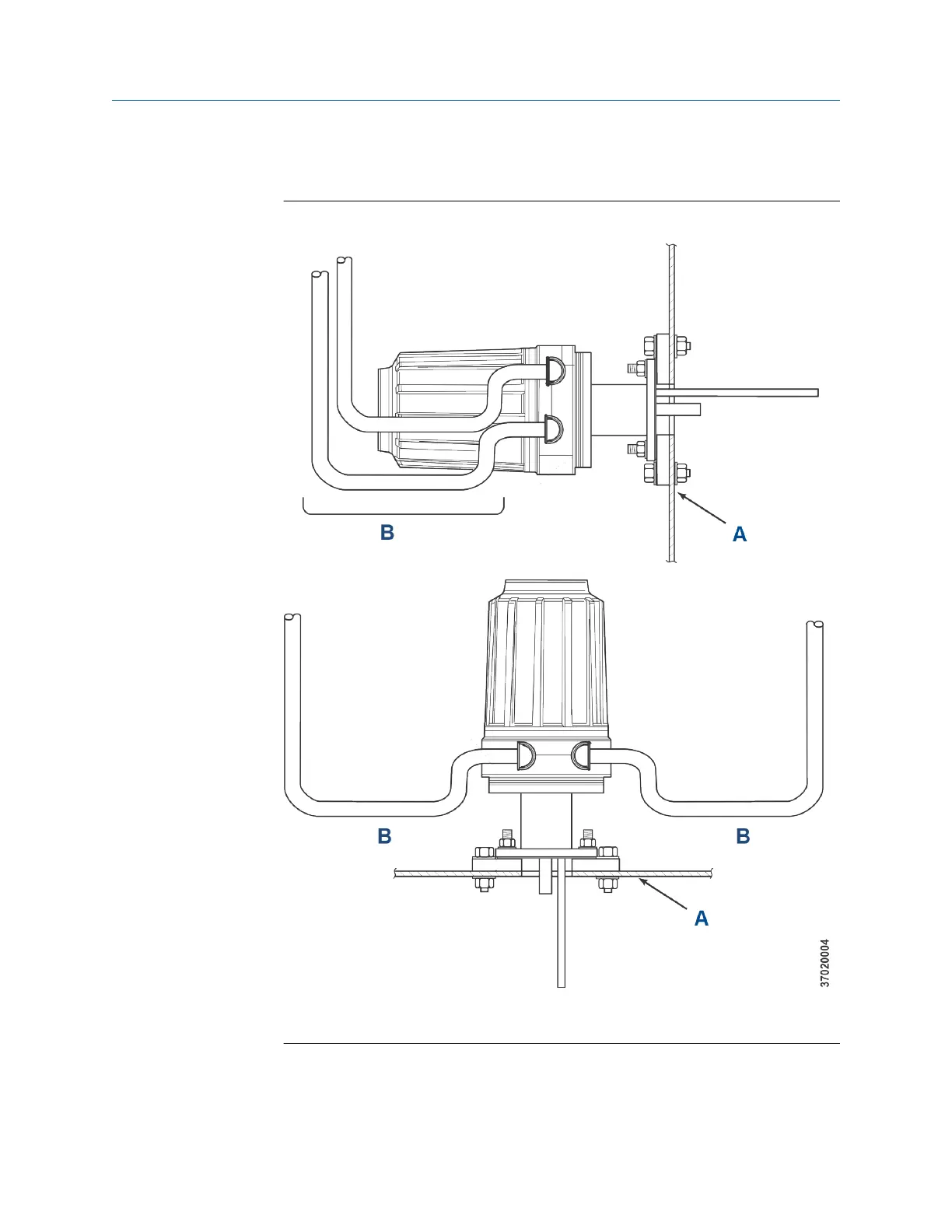

Figure 2-3: Installation with Drip Loops
A. Duct wall
B. Conduit drip loops
5. Where a positive stack pressure exists at the installation site, connect all
pneumatic lines prior to installing the transmitter in the stack or ductwork.
