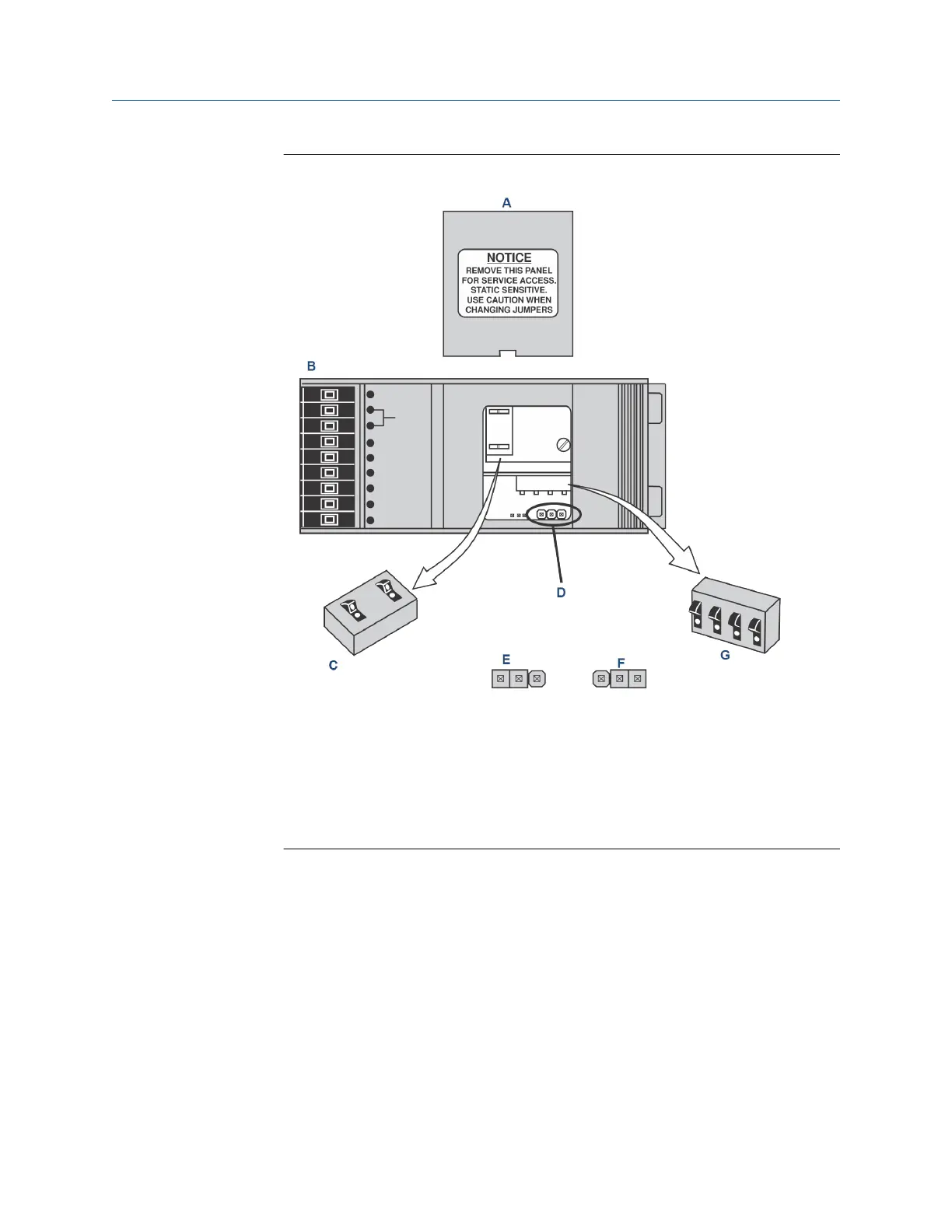

Figure C-3: SPA Jumper and Dip Switch Settings
A. Access cover
B. SPA - bottom view
C. Source current Dip switches (shown in correct position)
D. Password jumper pins
E. Password on
F. Password off
G. Failsafe Dip switches (shown in correct position)
2. Verify that the Password jumper is set to the Off position. If the jumper is in
the On position, reposition the jumper.
3. Check the position of the failsafe Dip switches. Position the Dip switches as
shown in Figure C-3.
4. Check the position of the source current Dip switches. Position the Dip
switches as shown in Figure C-3.
5. Reinstall the SPA access cover.
Manual SPA with HART
®
alarm
00809-0500-4880 December 2022
Rosemount OCX8800A 321
