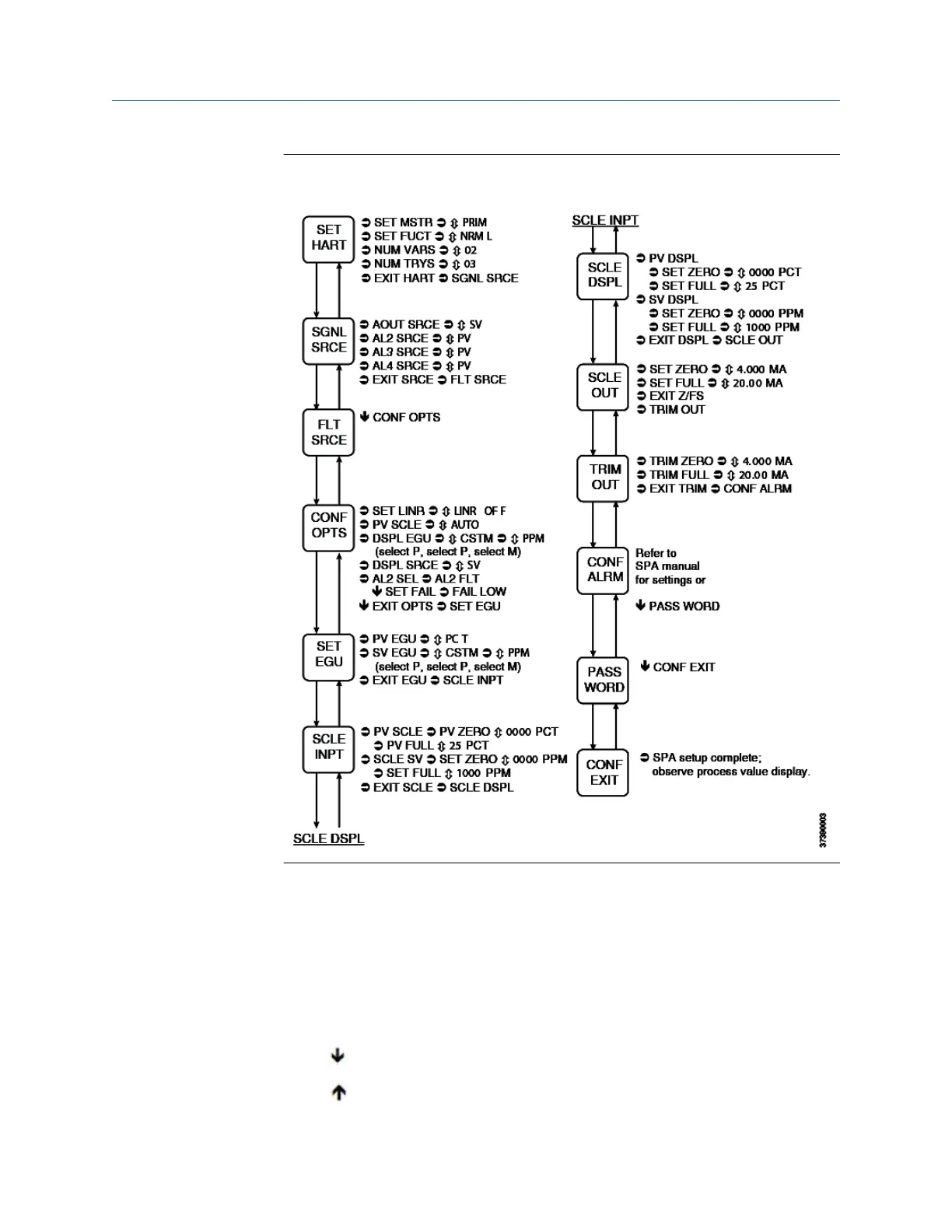

Figure C-5: SPA Configuration Menu for Rosemount OCX8800
Communication
a) Press SELECT.
Observe the display window on the SPA front panel. The display
window should read SET HART.
See the SET HART command in Figure C-5. The SET HART submenu
and related parameter values that must be selected via the front
panel buttons on the SPA are to the right of the command window.
In the submenu views shown:
means press down.
means press up.
SPA with HART
®
alarm Manual
December 2022 00809-0500-4880
324 Emerson.com/Rosemount
