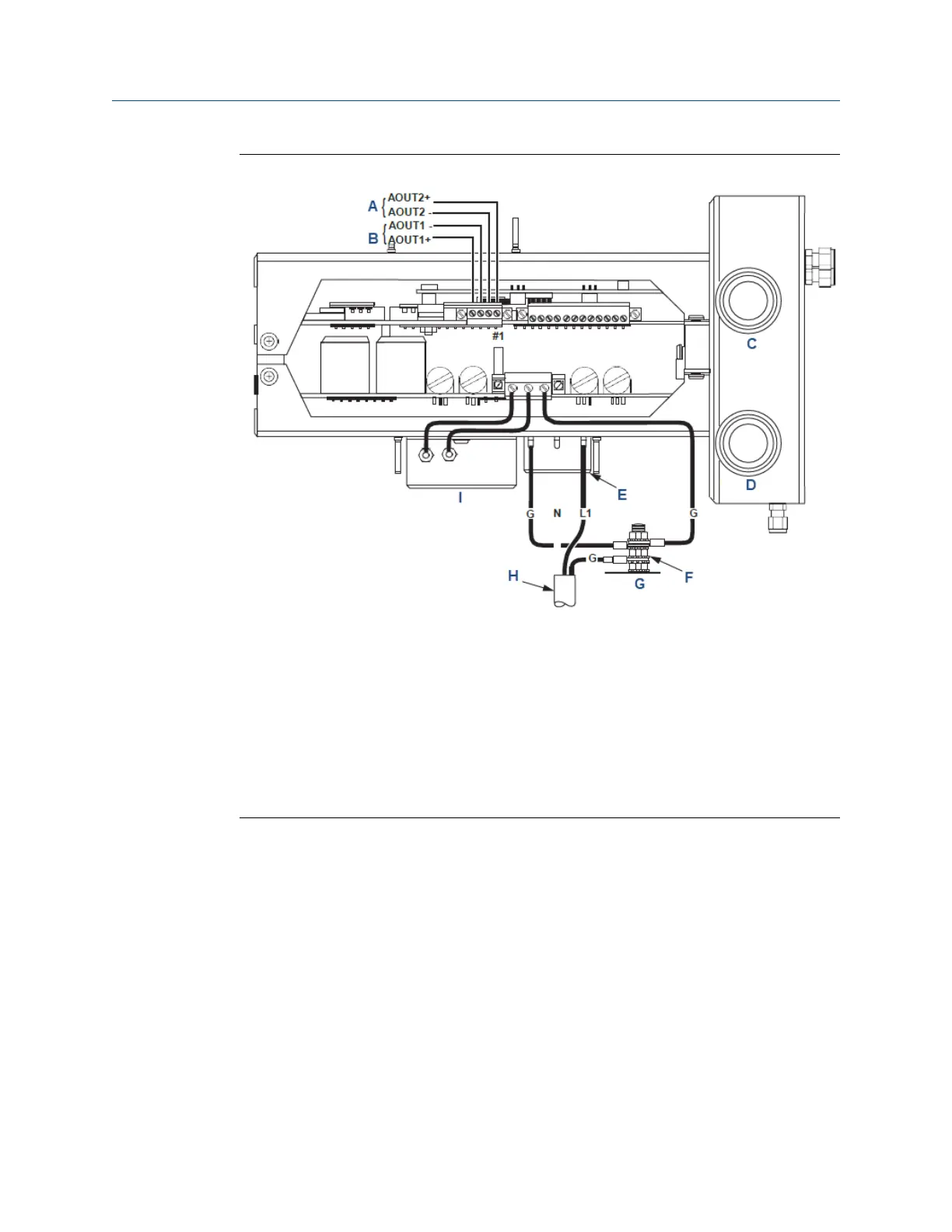

Figure 2-5: 4-20 mA Signal Output Terminal Block
A. COe signal
B. O
2
signal
C. Signal port ¾ national pipe thread (NPT)
D. Power port ¾ NPT
E. Terminal block
F. External tooth lockwasher
G. Ground stud
H. Customer wiring
I. EMI filter
Manual Install
00809-0500-4880 December 2022
Rosemount OCX8800A 37
