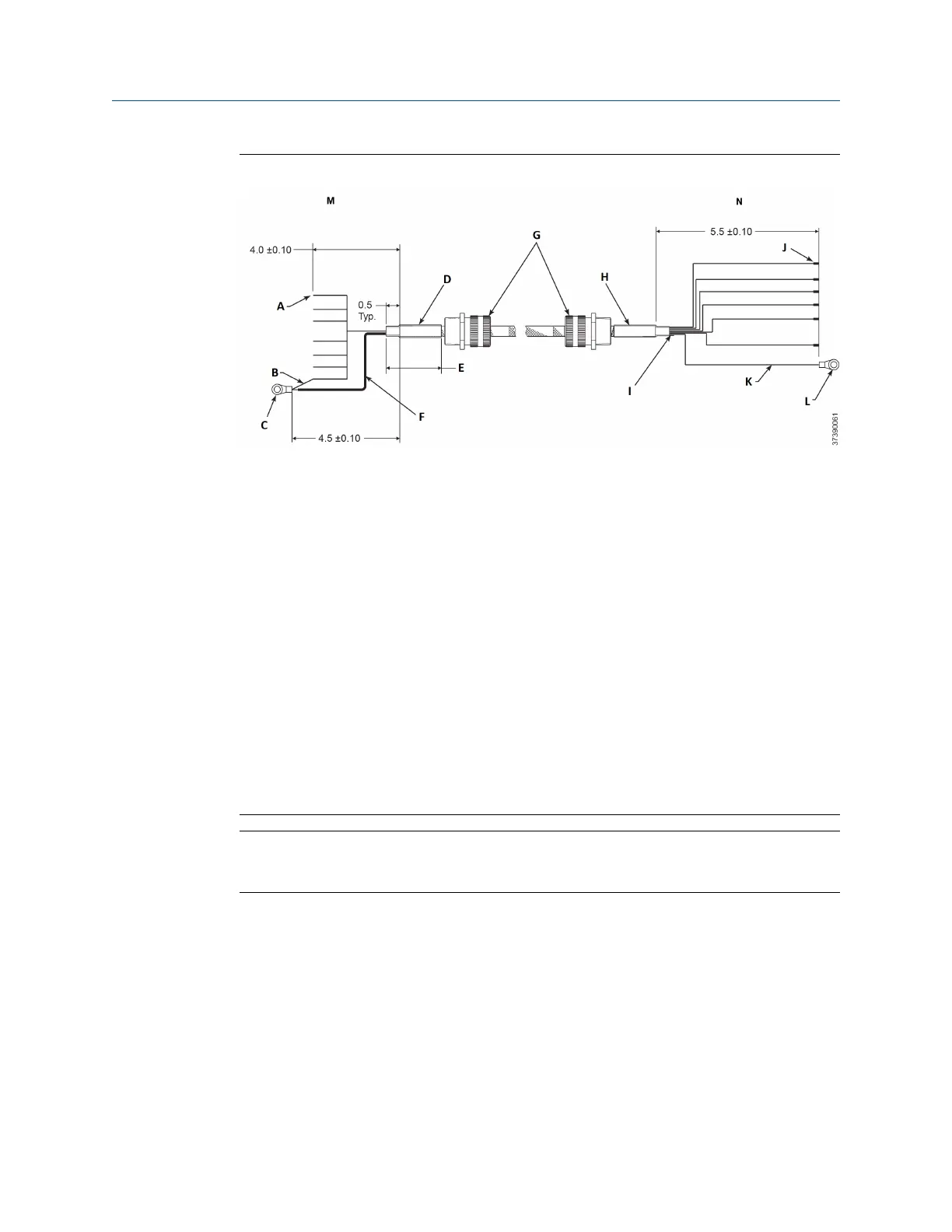

Figure 2-9: Heater Wiring or Cable
A. Strip wire ends 3/16 in. (4.8 mm) typical
B. Green, 16 AWG
C. Stud size #10
D. Heat shrink tubing 2 in. (50.8 mm) long ½ in. (12.7 mm) size
E. 2.0 ± .25 typical
F. 4.25-in. (108 mm) long PTFE tubing, 0.042-in. (1.1 mm) ID. (Cut off drain wire at
probe end of shield).
G. ¾ NPT hub size, liquid-tight strain relief connectors
H. Heat shrink tubing 2 in. (50.8 mm) long ½ in. (12.7 mm) size
I. 8 Conductors, 16 AWG, stranded, 400 °F (200°C), 600 volts. Braided shield -
tinned copper, 90% coverage with 18 AWG 24 tinned copper, uninsulated, drain
wire.
J. Ferrule, uninsulated
K. Green, 16 AWG
L. Stud size #6
M. Electronics end
N. Probe end
Note
For RFI/CE compliance, the connector must provide 360 degrees of electrical
contact to the cable shield.
2.3.9
Signal connections
Connect the electronics housing terminals to the corresponding terminals in the
sensor housing. The twisted wire pairs are numbered on the inner plastic
wrapper.
Keep twisted pairs together and match the numbers and wire colors.
