EDM01-36v10 DAG_9.2X2_Card_User_Guide - Introduction
4 ©2010 - 2012 Endace Technology Ltd. Confidential - Version 10 - May 2012

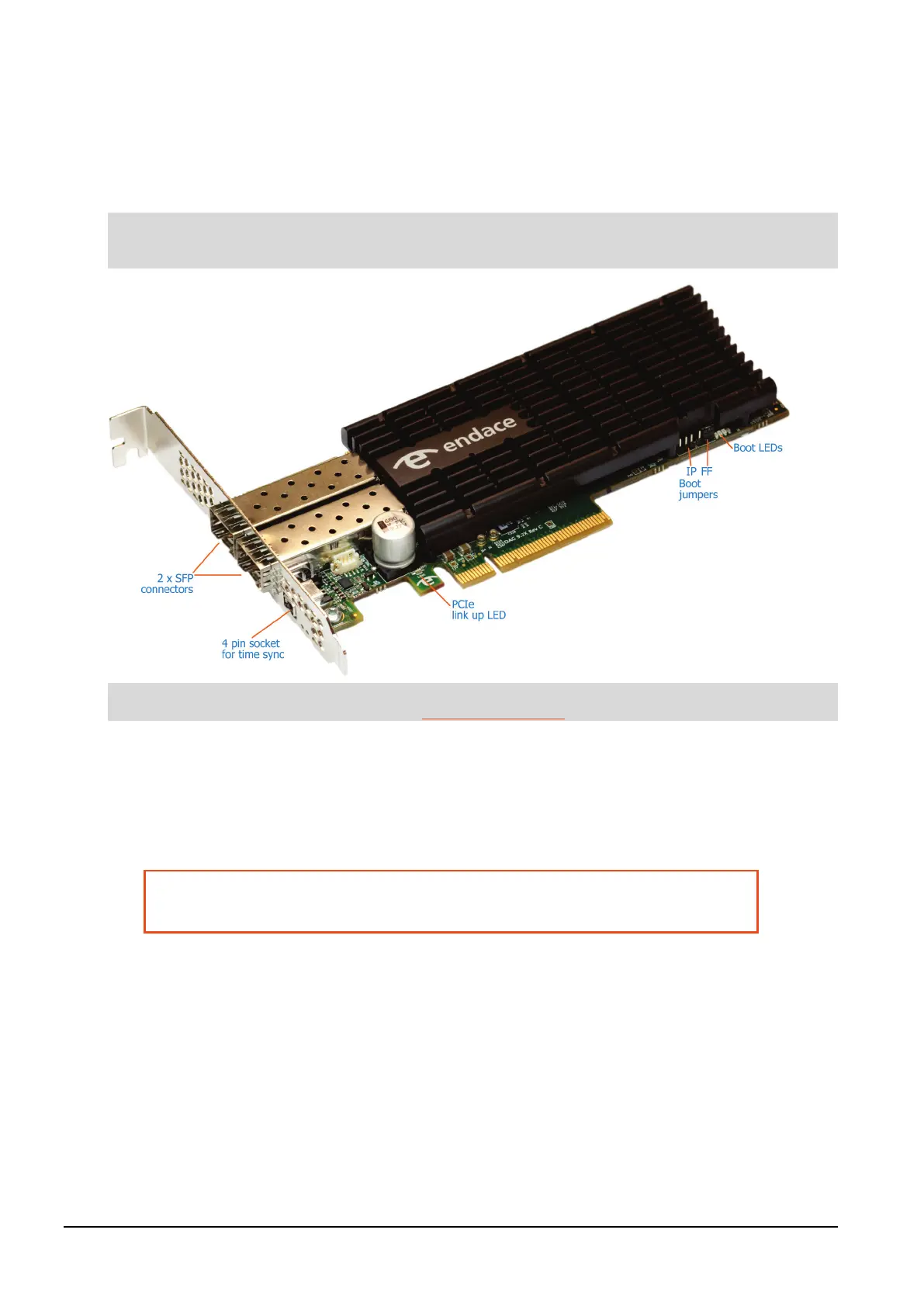

Card description
The DAG 9.2X2 has two optical 10 Gigabit Small Form Factor Pluggable (SFP+) interfaces. The two
transceivers can be operated simultaneously allowing a single card to monitor one or both directions of a
full-duplex link. SFP+ transceivers are also backwards compatible with standard SFP interfaces in 1GE
mode.
Performance will be reduced if the DAG 9.2X2 card is inserted in a PCIe Gen 1.0 slot, or if the 8 lane bus
has less than 8 lanes connected. Please check the host computer motherboard specifications.
For further information on Boot jumpers, see Boot jumper settings (page 11).
DO NOT REMOVE THE BATTERY
Removing the battery from a DAG card voids the DAG card warranty.
If battery is removed then the DAG card must be returned to Endace for servicing.
The battery in this product is expected to last a minimum of 10 years.
Caution:
Risk of explosion if the battery is replaced by an incorrect type.
Dispose of used batteries carefully.
