Ender 2 Pro - Troubleshooting: V-wheel Jamming; Adjusting Eccentric Isolation Columns

11
11. Solution for V-wheel Jamming V轮卡顿解决方案

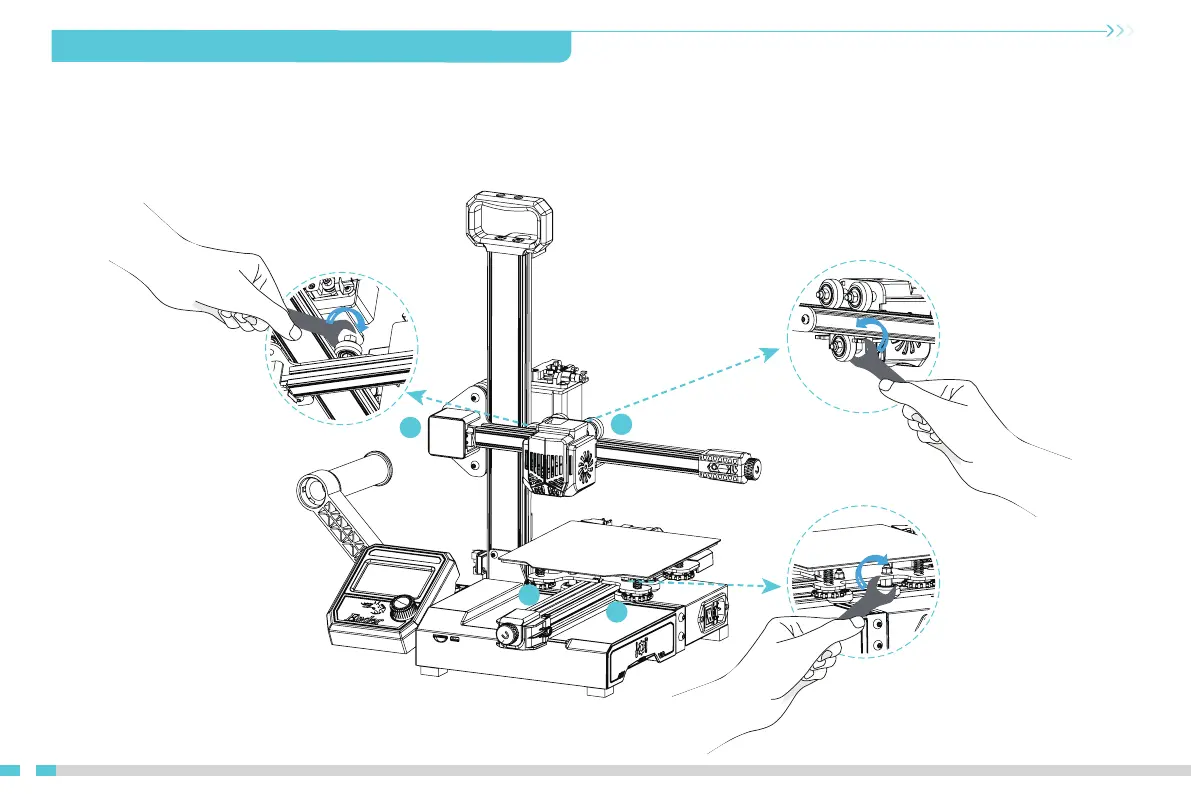

X/Y/Z axis V-wheel adjustment: After the machine is assembled gently dial the wheel to check whether it is idling or stuck. If this phenom-
enon occurs, use an open-end wrench to adjust the hexagonal eccentric isolation column to make it rotate smoothly.
X/Y/Z轴滑轮调节：机器组装完成后，用手轻拨滑轮，检查其是否有空转和卡顿，如有此现象请使用开口扳手调节六角偏心隔离柱，使其转动运动顺
畅。
Y
Y
Z
X
Hexagonal eccentric isolation column
六角偏心隔离柱
