HEATER-CONTROLLER CABLE CLAMP SYSTEM

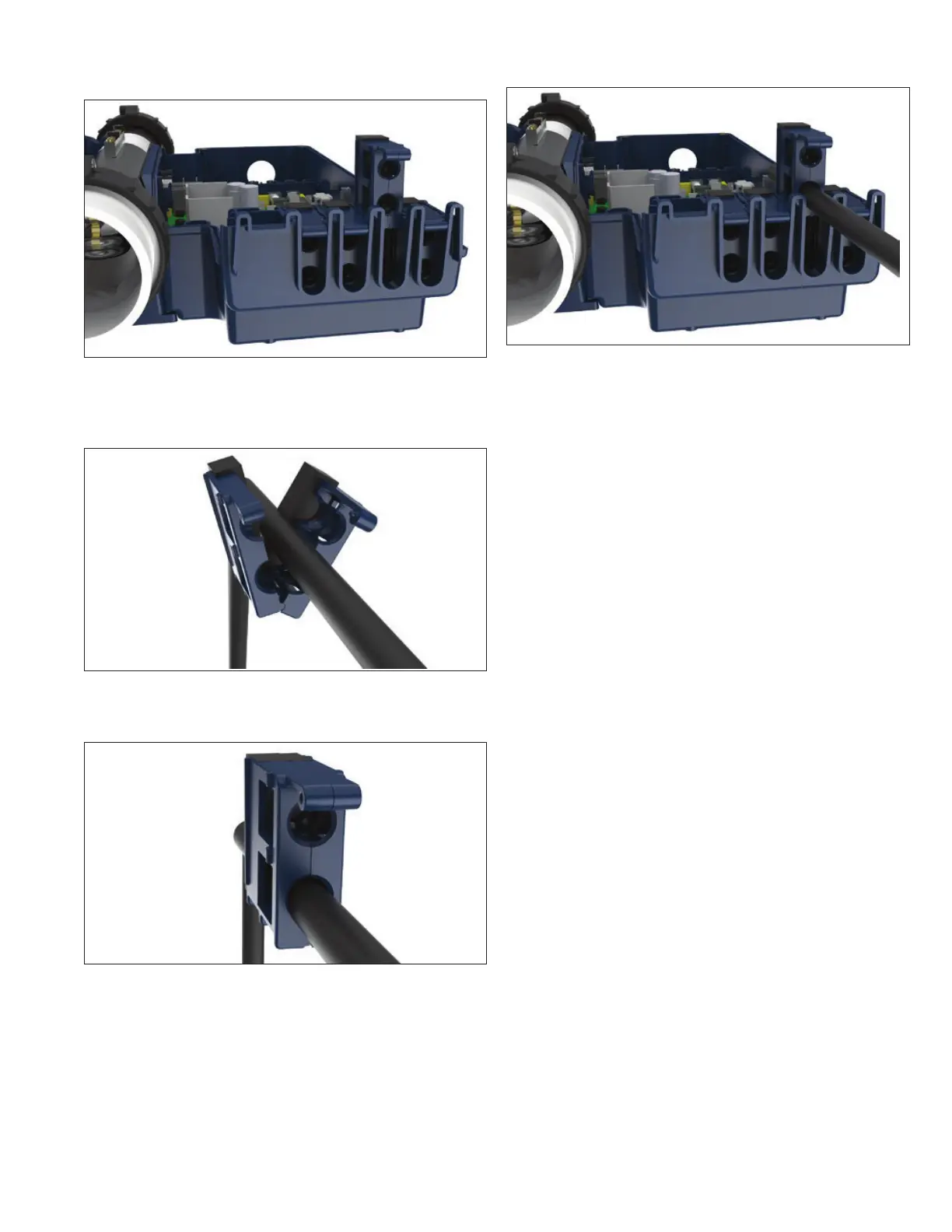

Remove the empty clamp from the enclosure (Fig. 48).
Fig. 48
Open the clamp and place the wire inside. Each clamp can
accept up to 2 cords (Fig. 49).
Fig. 49
Close the clamp on the wire (Fig. 50).
Fig. 50
Reinsert the clamp in its original position, pressing down on
either side of the cord (Fig. 51).
Fig. 51
Once all clamps are installed, reinstall the front cover
of the Heater-Controller. The cover screws should be
tightened to a max of 8lb.in (0.9 N.m).
