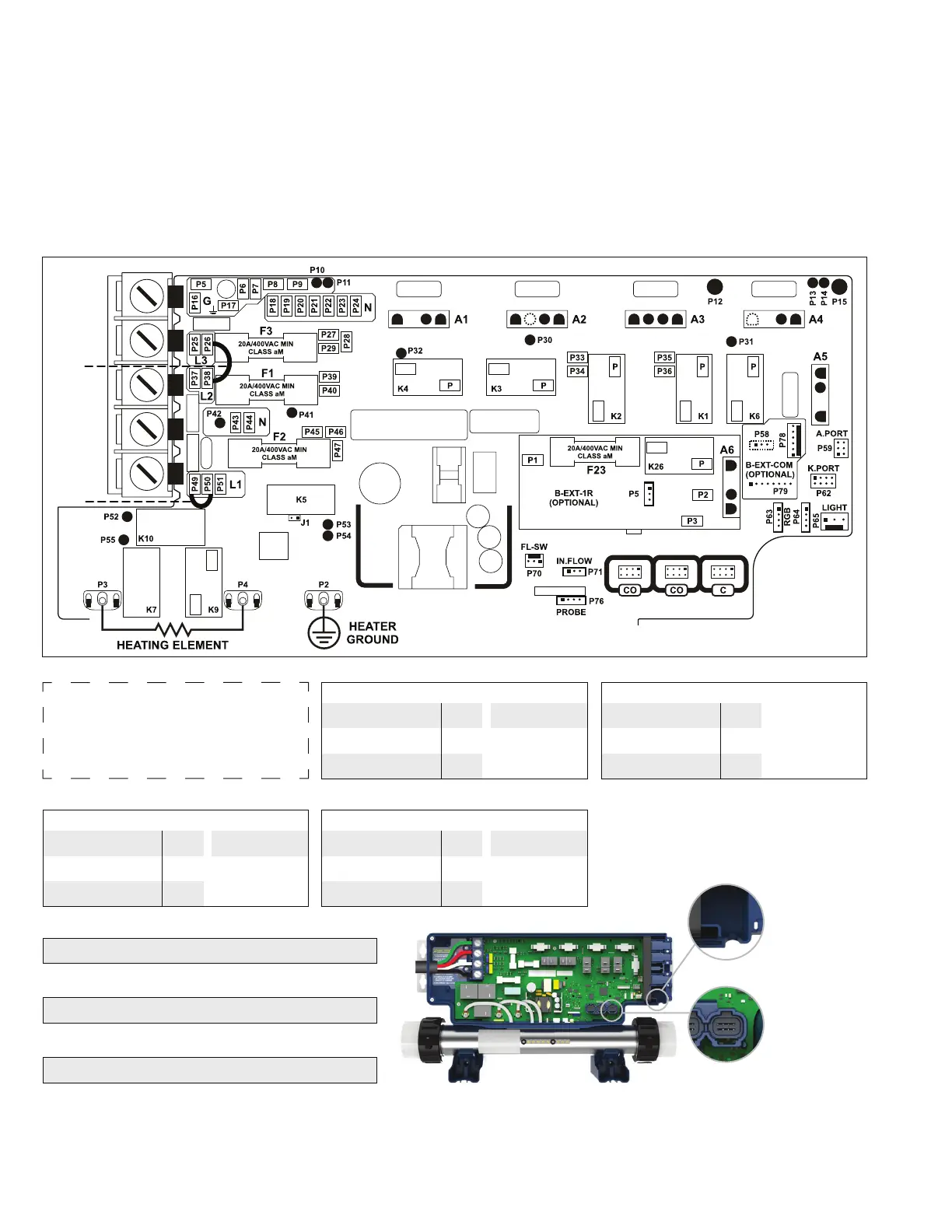

HEATER-CONTROLLER ACCESSORY WIRING
Power Jumper Wires (PJ1 & PJ2) MUST be removed and connected to the appropriate terminals. Each high voltage
accessory wired into the Heater-Controller has an electrical cord with connectors that correspond with the quick connect
terminals OR the AMP connectors inside the Heater-Controller. Route the cords from the accessories to the controller.
The cords for the Keypad, LED Lights, and optional Remote Pool Monitoring should be routed through the strain relief
channel at the bottom of the controller. Refer to the printed circuit of the controller and the appropriate accessory table
below to determine the location of each connection.
NOTE: If BOTH the Circulation Pump and optional UV/EZ50 have an AMP connector on the end of the cord, BOTH the
Circulation Pump and UV/EZ50 plug into the A4 AMP connection via the splitter cable provided with the optional UV/
EZ50. Plug the splitter into the A4 connector. Then, plug the Circulation Pump and UV/EZ50 into the ends of the splitter.
PJ 1
PJ 2
CIRCULATION PUMP
Green Wire/Ground P6 A4
Black/Brown Wire
Quick Connect Terminals AMP Connector
K6-P
White/Blue Wire P18
OPTIONAL SKIRTING CORNER LIGHTS
Black Wire K1-P
Black Wire
Quick Connect Terminals
P21
OPTIONAL HYDROTHERAPY JETS
Green Wire/Ground P8 A1
Black Wire
Quick Connect Terminals AMP Connector
K4-P
White Wire P20
Green Wire/Ground P7 A4 (splitter required)
Black Wire
Quick Connect Terminals AMP Connector
K6-P
White Wire P19
OPTIONAL REMOTE POOL MONITORING
(IN.TOUCH)
CO Connector
LED WALL/OPTIONAL LED BENCH LIGHTS
P65 Light Connector
(IN.XTEND)
C Connector
POWER JUMPERS (PJ) BROWN WIRES
Connect PJ1 between P49 & P50
Connect PJ2 between P38 & P26
Strain relief
channel
C Connector
