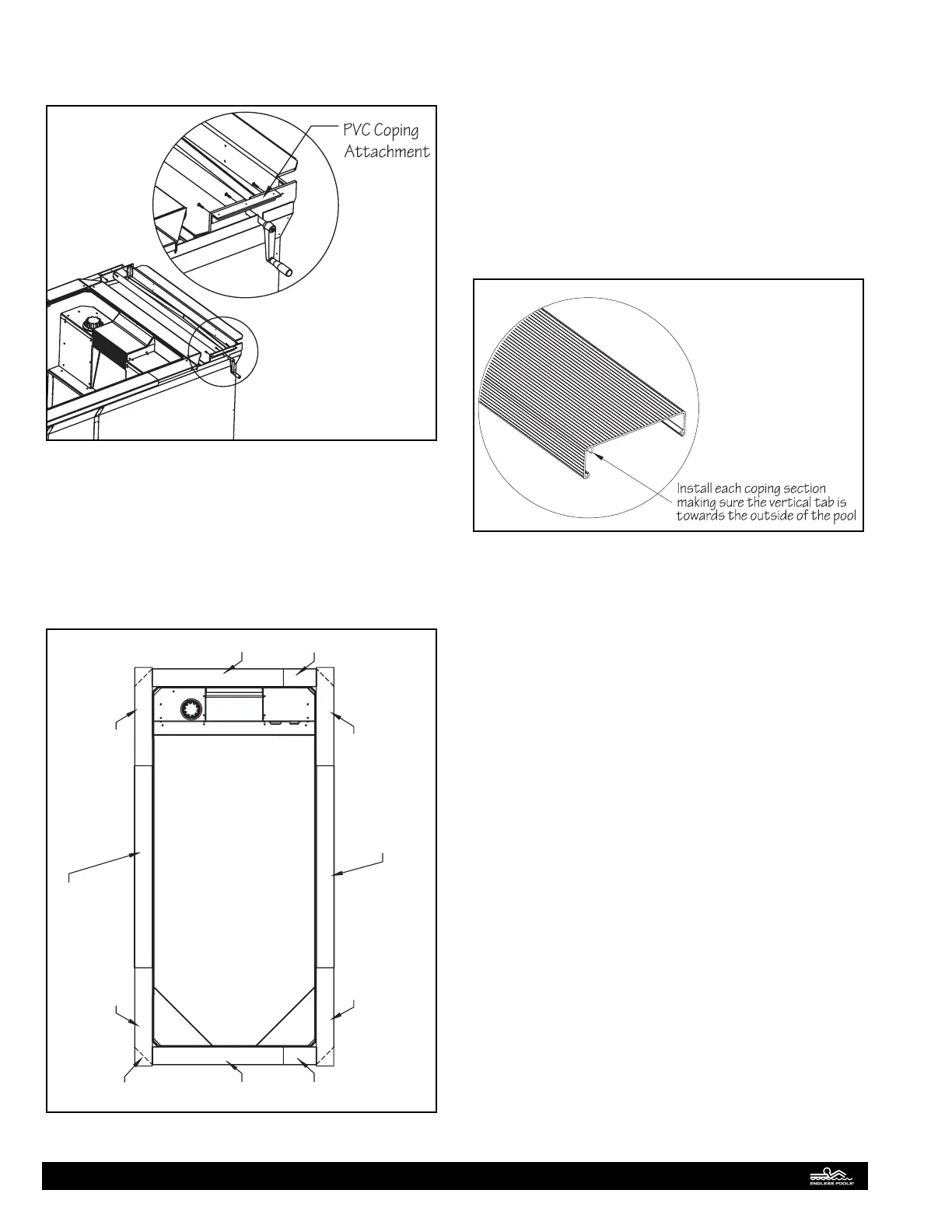

Attach a PVC coping attachment to each vertical support using
the 1" (25mm) truss head screws located in the support beam
attachment hardware bag. Fig. 67.
Fig. 67
Because the height of the reinforcing channels is slightly higher
than the surrounding top ange, sections of shim are included to
provide a level surface for the coping system.
Measure and cut the shim sections as shown in Fig. 68. e PVC
shim can be scored with a sharp utility knife and snapped. Once
the shim sections are scored, loosely position each section to level
the surrounding top ange to the reinforcing channels.
Shim A - 36" (91cm)
Shim B - 48" (122cm)
Shim C - 12" (30cm)
Shim A
Shim A
Shim B
Shim A
Shim A
Shim C
Shim B
Shim C
Score Line
Reinforcing
Channel
Reinforcing
Channel
Fig. 68
Once satised with placement of each shim, adhere each section
to the top ange of the pool with the provided clear silicone.
Make sure the shim DOES NOT cover the liner hanger.
Apply a thick bead of silicone between the liner hanger and
the pool panel around the perimeter of the pool to seal the gap.
THIS GAP MUST BE SEALED.
Apply silicone to the top side of the shim before seating each
coping section. Starting with the center sections, position the 52
7/8" (1.34m) front and rear sections on the front and rear pool
panels making sure they’re centered. e vertical tab on the un-
derside of each coping section MUST be towards the outside of
the pool. Fig. 69.
Fig. 69
When installing, angle the coping section towards the inside of
the pool so that lip of the coping extends over the liner hanger.
Once seated on the top ange, measure to ensure it’s centered.
Measure and mark the center points of each side wall. Apply
silicone to the top ange before seating the coping sections. Po-
sition the (2) 62 ¼" (1.58m) side sections along each side wall
so they meet at the center mark. Once the coping sections have
been seated on the top ange, measure to ensure they’re centered
on the side wall. Fig. 70.
27
