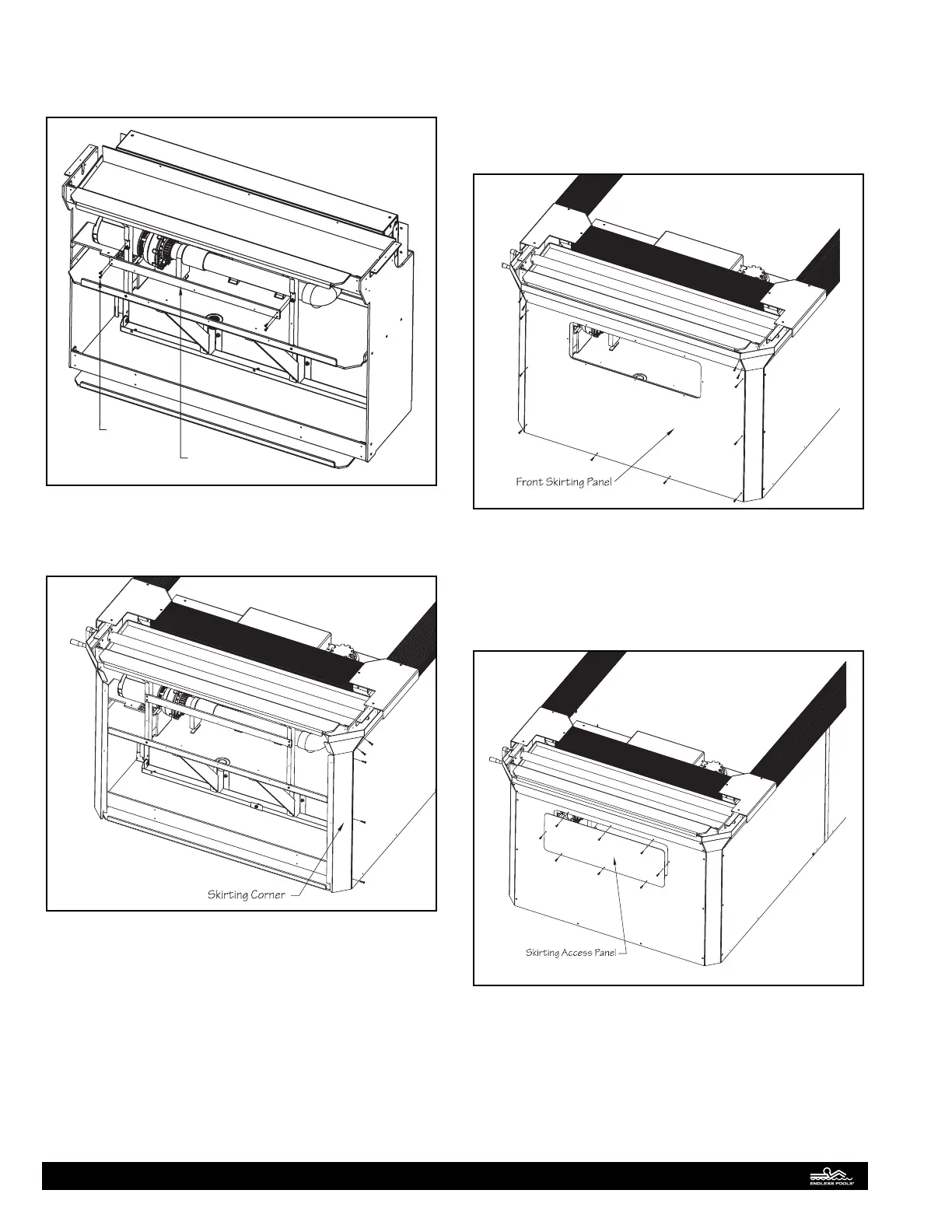

Position the horizontal brace in the notches of the vertical brac-
es. Attach the horizontal brace to each vertical brace with the
3/4"(19mm) at screws located in the access panel frame hard-
ware bag. Fig. 99.
Horizontal Brace
Flat Head
Screw
Fig. 99
Bend and attach the front skirting corners to the front side
skirting panels. Fig. 100.
Fig. 100
Position and attach the front skirting panel to each front skirting
corner. Make sure the pre-drilled holes around the perimeter of
the access port align with the holes in the vertical braces, hori-
zontal brace, and equipment tray before securing the bottom of
the front skirting panel to the lower support beam. Use a scratch
awl or temporary screw to ensure these holes align if necessary.
Fig. 101.
Fig. 101
Align the pre-drilled holes in the skirting access panel with the
pre-drilled holes around the perimeter of the access port on the
front skirting panel. Attach the access panel to the front skirting
panel using the 3/4" (19mm) truss head screws located in the
skirting trim hardware bag. Fig. 102.
Fig. 102
39
