Operation
20
5.2 Display and operating elements

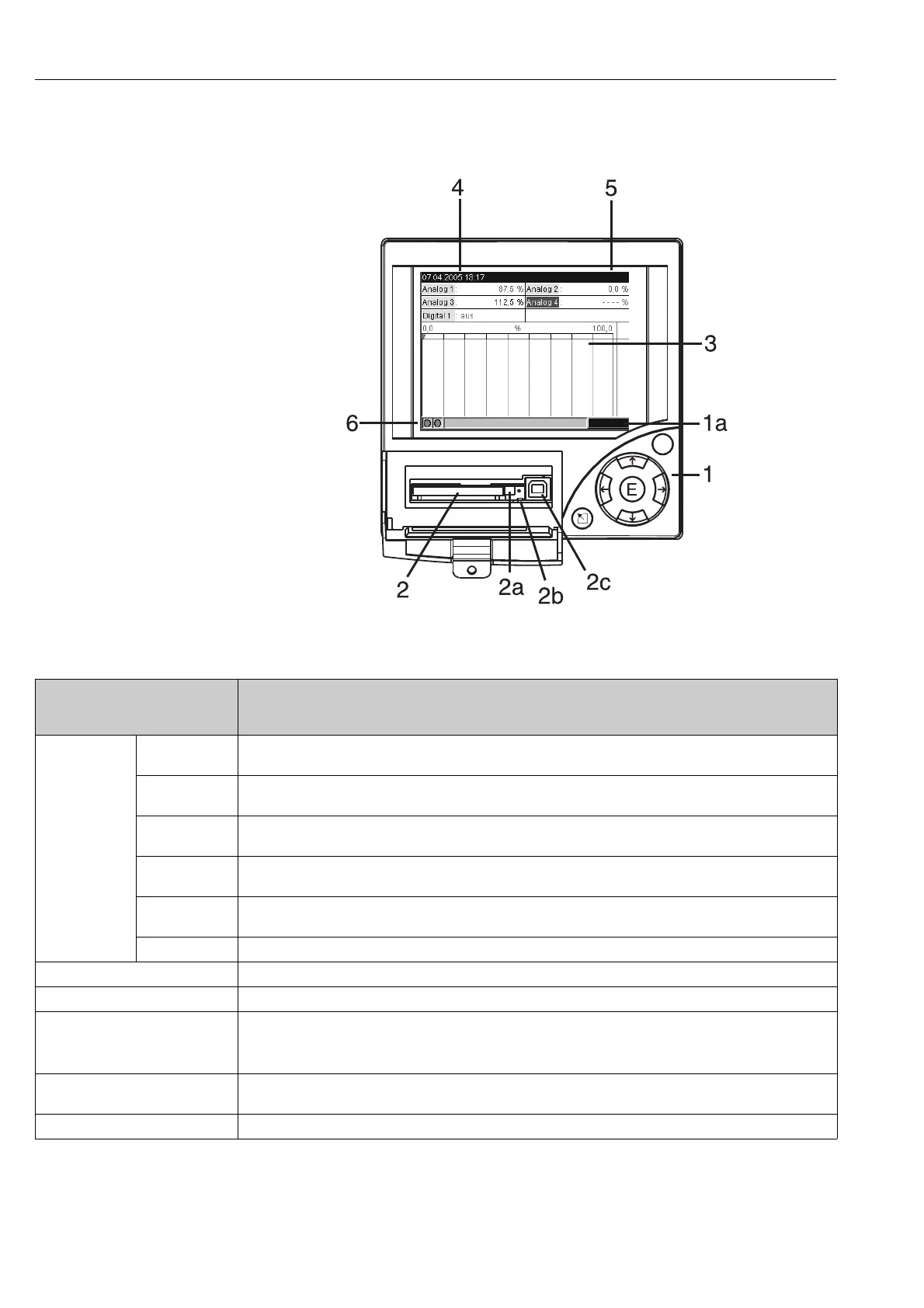

Fig. 11: Unit display / control units
Operating element (Item No.) Operating function
(Display mode = Signal display)
(Setup menu = Operation in the Setup menu)
1
Z
At display mode: Quick return to current time
At Setup menu: ESC key to abort the input and/or quick return to the preceding display.
UT
At display mode: Changes between the various display modes (e.g. bargraph,...)
At Setup menu: Moves the cursor to left or right
V
At display mode: Rewinds recording (history display - "remove paper")
At Setup menu: Moves the cursor bar upwards, changes parameter / signs
W
At display mode: Forwards recording to current time ("wind on paper")
At Setup menu: Moves the cursor bar downwards, changes parameter / signs
F
At display mode: Displays main menu
At Setup menu: ENTER key = Selection of the marked function, start the parameter change
Variable softkey (e.g. calling up internal Help function in the Setup menu)
1a Function indicator of the softkey
2 Slot for CF card
2a Key to eject the CF card
"
Caution!
Do not actuate if LED (2b) is lit! Risk of data loss!
2b LED at CF slot
LED lights up if the unit is reading or writing to the CF card.
2c USB socket
