5.3 Entering text and numbers
A virtual keyboard is available for entering text and numbers. This is opened automatically if
needed. Here, use the arrow keys to select the letters you need and confirm with the "E" key.

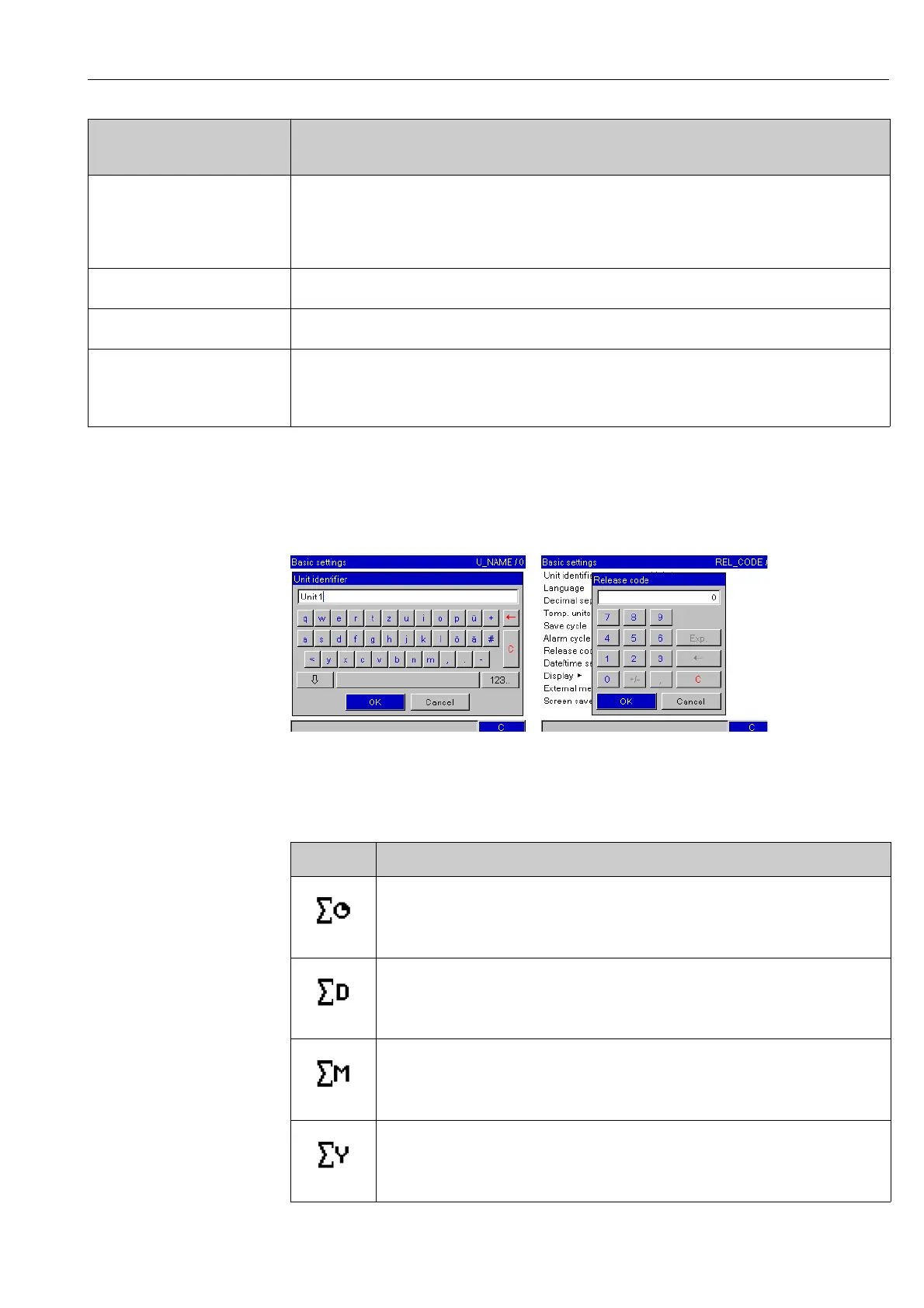

Fig. 12: Virtual keyboard
5.4 Overview of the symbols used
3 At display mode: Window for measured value display
Displays the current measured values depending on the signal display selected.
!
Note!
If a measuring point has limit value status, the corresponding channel identifier is displayed in red (quick detection of limit
values). When you are operating the unit, measured value acquisition continues to run without interruption.
4 At display mode: Displays the current date/time
At Setup menu: Displays the operating item
5 At display mode: Indicates what portion of the CF card is already written to (in %)
At Setup menu: Displays the operating code
6 At display mode: Functions of the LED displays on the display (as per NAMUR NE44:)
• Green LED lights up: power supply OK, unit working without faults
• Red LED flashes: need for maintenance if unit-external problem occurs (e.g. cable open circuit etc.) or a message /
note to be acknowledged is pending, calibration in progress.
Operating element (Item No.) Operating function
(Display mode = Signal display)
(Setup menu = Operation in the Setup menu)
Symbol Explanation
Intermediate statistics
Daily analysis
Monthly analysis
Annual analysis
To Next Page
