Installation
10
3.4 Mechanical locking
The CompactFlash card can be secured against unauthorized removal using the locking plate
supplied. For this purpose, insert the locking plate into the slit below the handle of the cover plate
(see Fig. 4). Now you can lead-seal or seal the cover plate with a suitable lock.

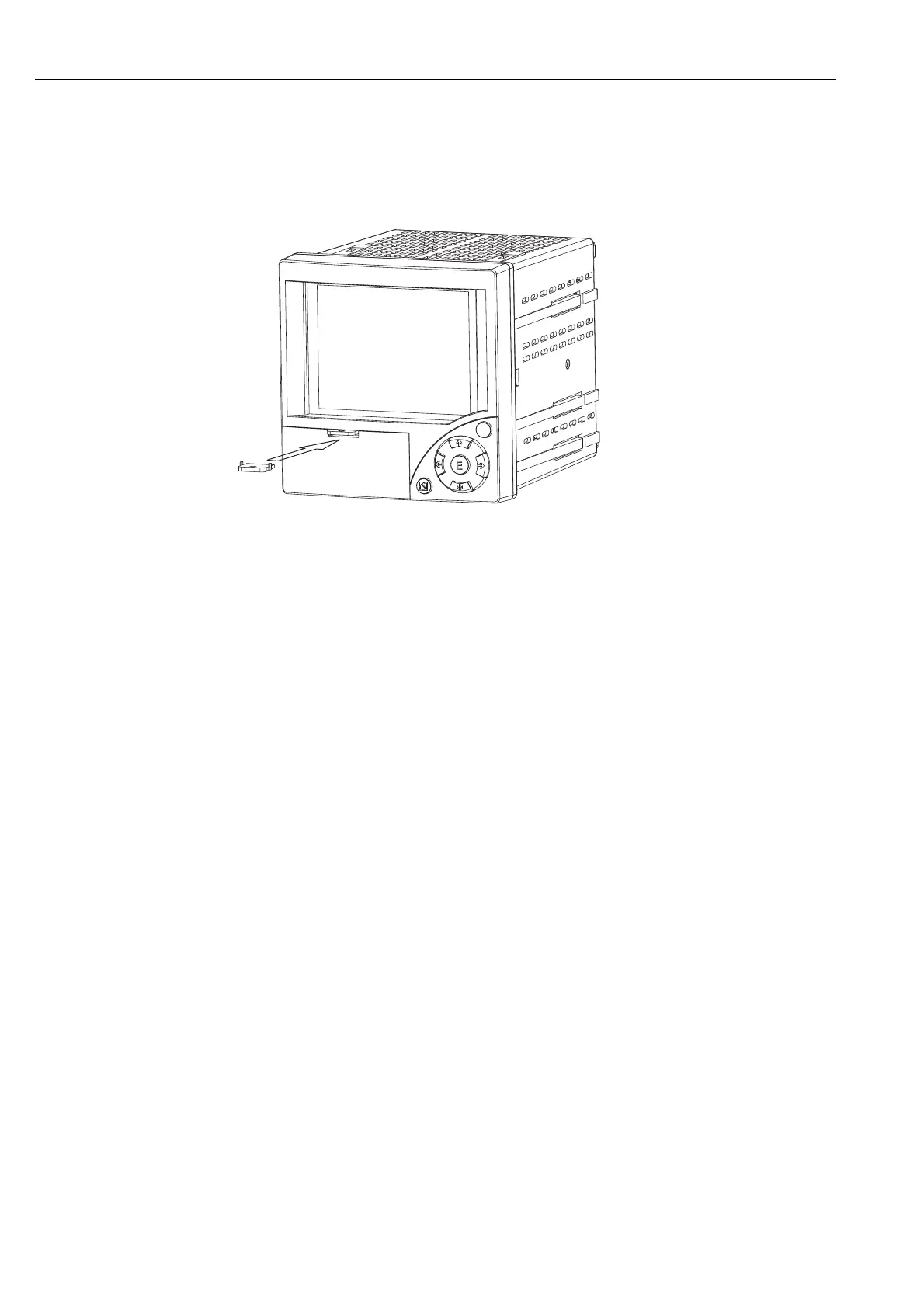

Fig. 4: Inserting the locking plate
3.5 Post-installation check
After installing the control panel, please check the following points:
• Is the unit fixed firmly in the center of the control panel cutout?
• Does the seal run all around the housing collar?
