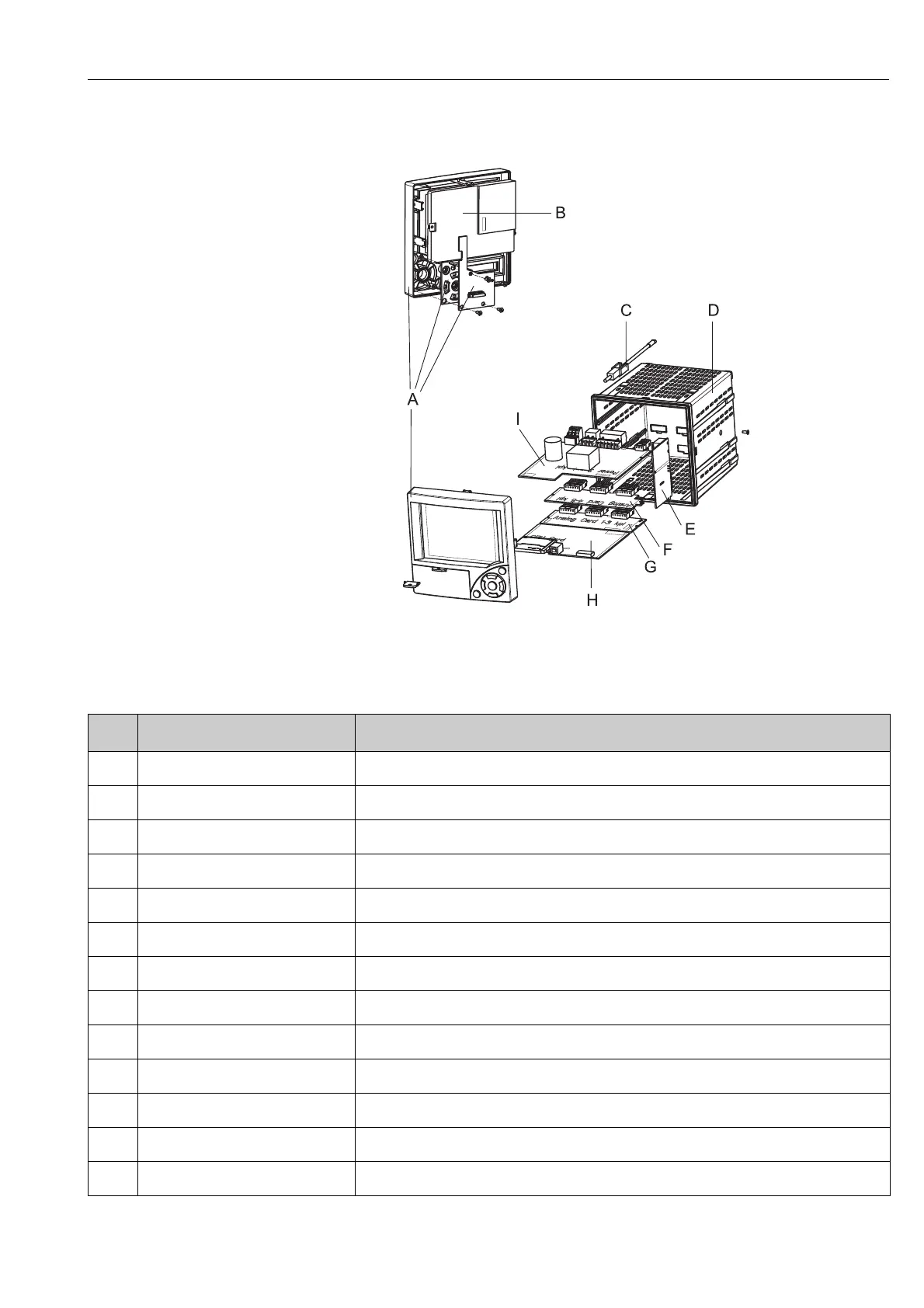

9.4.1 Spare parts diagram
Fig. 61: Spare parts diagram
9.4.2 Spare parts list
Pos. Order No. Description
A RSG30X-FA Front incl. key pad + board
RSG30X1-WA Spare connection cable display -> key board
B RSG30X-DA LCD Module
C 50084623 Securing unit for casing, 1 piece
D 51009281 Complete casing
E RSG30X-CA Communication board + plug for RS485
F RSG30X-A2 Analog board channel 4-6 with connector, board connector
G RSG30X-A1 Analog board channel 1-3
I RSG30X-NA Power supply 100-230 V AC (±10%); 1 x digital input up to device number 9B021C04267
I RSG30X-NB Power supply 100-230 V AC (±10%); 3 x digital input as of device number 9B021C04268
I RSG30X-NC Power supply 24 V AC/DC; 1 x digital input up to device number 9B022E04267
I RSG30X-ND Power supply 24 V AC/DC; 3 x digital input as of device number 9B022E04268
51009617 USB connecting cable (USB-A - USB-B, 1 m / 3.3 ft)
