Endress+Hauser Prosonic S FMU90 User Manual

Operating menu
176

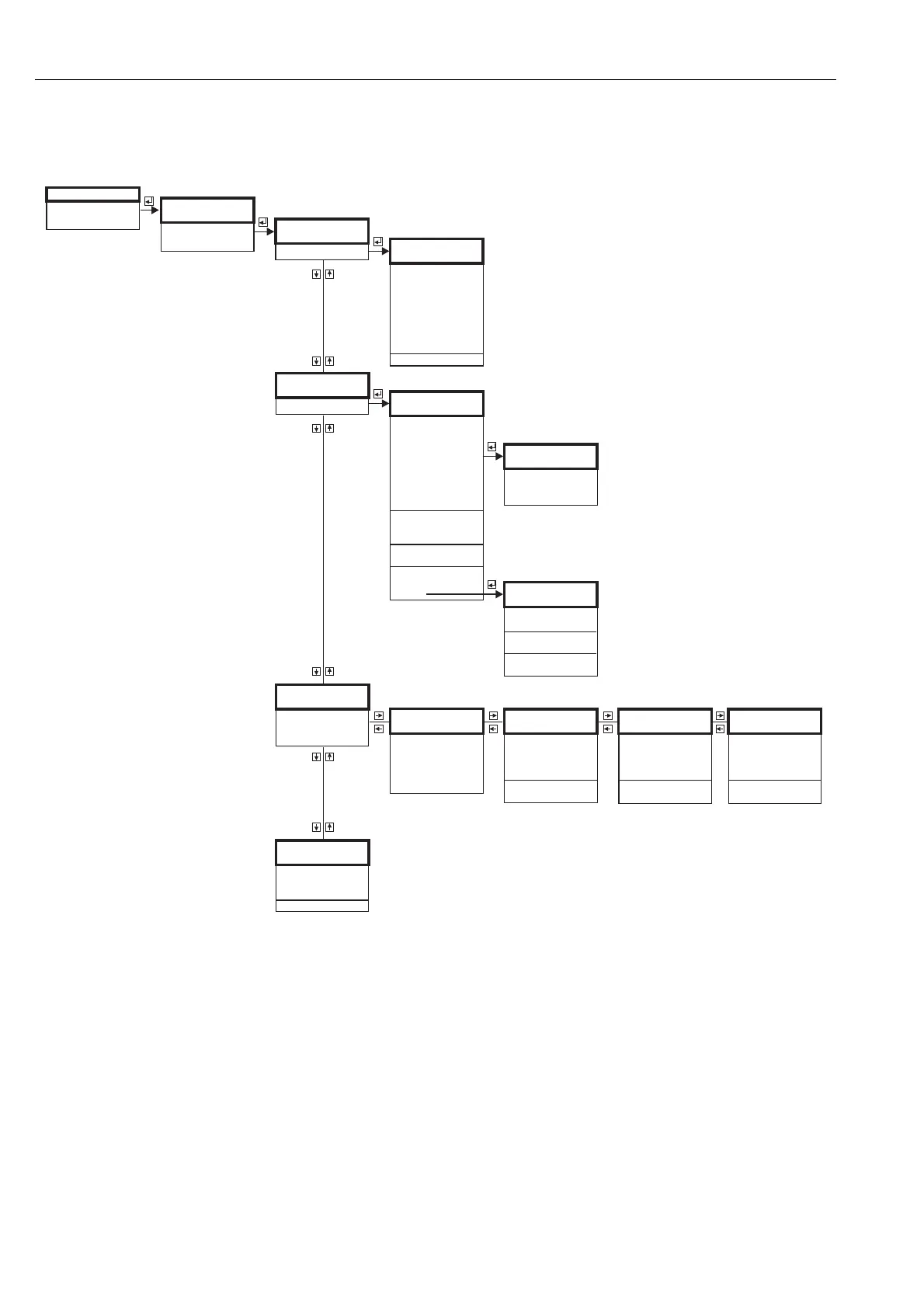

14.4 "output/calculations"
L00-FMU90xxx-19-05-01-en-106
output:
....
flow 1
…
average level
…
...
output current:
level 1
main menu
output/calculat
…
OX001
output/calculat
current output 1
(current output 2)
O1302
current oputput 1
O1201
allocat. curr. 1
allocat./calculat
O1302
current output 1
OX202
mode current 1
current span:
0...20mA
fix. curr. HART
4...20mA
extended calibr.
O1302
current output 1
O1203
HART settings
O2205
add. HART-value 2
HART settings
(not for
current output 2)
O3206
add. HART-value 3
O4207
add. HART-value 4
OX202
mode current 1
mA value:
default: 4mA
4mA threshold:
on
output damping:
curr. turn down:
off
off
default: 2 s
on
Ox202
mode current 1
…
curr. turn down: on
turn down 0/4mA:
turn down 20mA:
default: 0%
default 100%
HART address:
no.of preambels:
short TAG HART:
default: 0
default: 5
measured value 3:
level 1
…
output damping 3:
no sensor
default: 0 s
measured value 4:
no sensor
level 1
…
output damping 4:
default: 0 s
O1302
current output 1
simulation:
on
simulation value:
off
measured value 2:
level 1
…
output damping 2:
no sensor
default: 0 s

Endress+Hauser Prosonic S FMU90 Specifications

General

Measurement Principle	Ultrasonic
Protection Class	IP68
Process Temperature	-40 to +80 °C
Process Pressure	-1 to +3 bar
Output Signal	4-20 mA, HART, PROFIBUS PA, FOUNDATION Fieldbus
Power Supply	24 V DC
Communication	HART, PROFIBUS PA, FOUNDATION Fieldbus
Housing Material	stainless steel
Display	LCD
