Soliwave FQR56/FDR56
2
Endress+Hauser
Technical Information
Soliwave FQR56/FDR56
Microwave Barrier
Your benets
• Flush-mounted installation, non-contact installation
possible
• Easy installation using R 1½ or 1½ NPT thread or
suitable installation brackets
• Electronics housing can be rotated by 360°, allowing
orientation into optimum position after installation
• Mechanical robustness
- No wear
- Process-wetted ceramic sensor diaphragm (optional)
- Long service life
- Maintenance-free
• Indication of the signal strength on the transceiver
• Adjustable sensitivity
• Direct connection of the supply voltage
(emitter and transceiver separately or together)
• Mechanically compatible to FQR50/FDR50 microwave
barrier, existing process connections can continue to be
used; likewise, accessories such as adapter anges, instal-
lation brackets and sight glasses can still be used.
• Conforms to ATEX, CSA and IECEx
Application
The Soliwave microwave barrier uses a contact-free
procedure for detection. It can be installed in contai-
ners, conduits, shafts or on free fall shafts. It is possible
to take a measurement through non-metallic container
materials from the outside.
Suitable as level limit switch for controlling and counting all
types of bulk solids or piece goods (such as bags or boxes).
Typical bulk solids include:
• Wood chips, wood dust or our
• Plaster, cement, ash
• Paper or cardboard shred
• Gravel, sand
• Dried powders in general
The FQR56 emitter and FDR56 transceiver are compact
transmitters with integrated power unit, and the transceiver
has an additional integrated switching amplier, which ena-
bles easy electrical installation onsite.
The microwave barrier has an optional analog output
(4 – 20 mA current output) for analysis of build-up, fouling
etc. This allows, for example, the progress of fouling to be
evaluated from "uncontaminated" to "contaminated" (the
limits can be configured individually).
FQR56 emitter
FDR56 transceiver
TI00443F/97/EN/16.16
Technical Information
Soliwave FQR56/FDR56
Microwave Barrier
Your benets
• Flush-mounted installation, non-contact installation
possible
• Easy installation using R 1½ or 1½ NPT thread or
suitable installation brackets
• Electronics housing can be rotated by 360°, allowing
orientation into optimum position after installation
• Mechanical robustness
- No wear
- Process-wetted ceramic sensor diaphragm (optional)
- Long service life
- Maintenance-free
• Indication of the signal strength on the transceiver
• Adjustable sensitivity
• Direct connection of the supply voltage
(emitter and transceiver separately or together)
• Mechanically compatible to FQR50/FDR50 microwave
barrier, existing process connections can continue to be
used; likewise, accessories such as adapter anges, instal-
lation brackets and sight glasses can still be used.
• Conforms to ATEX, CSA and IECEx
Application
The Soliwave microwave barrier uses a contact-free
procedure for detection. It can be installed in contai-
ners, conduits, shafts or on free fall shafts. It is possible
to take a measurement through non-metallic container
materials from the outside.
Suitable as level limit switch for controlling and counting all
types of bulk solids or piece goods (such as bags or boxes).
Typical bulk solids include:
• Wood chips, wood dust or our
• Plaster, cement, ash
• Paper or cardboard shred
• Gravel, sand
• Dried powders in general
The FQR56 emitter and FDR56 transceiver are compact
transmitters with integrated power unit, and the transceiver
has an additional integrated switching amplier, which ena-
bles easy electrical installation onsite.
The microwave barrier has an optional analog output
(4 – 20 mA current output) for analysis of build-up, fouling
etc. This allows, for example, the progress of fouling to be
evaluated from "uncontaminated" to "contaminated" (the
limits can be configured individually).
FQR56 emitter
FDR56 transceiver
TI00443F/97/EN/16.16

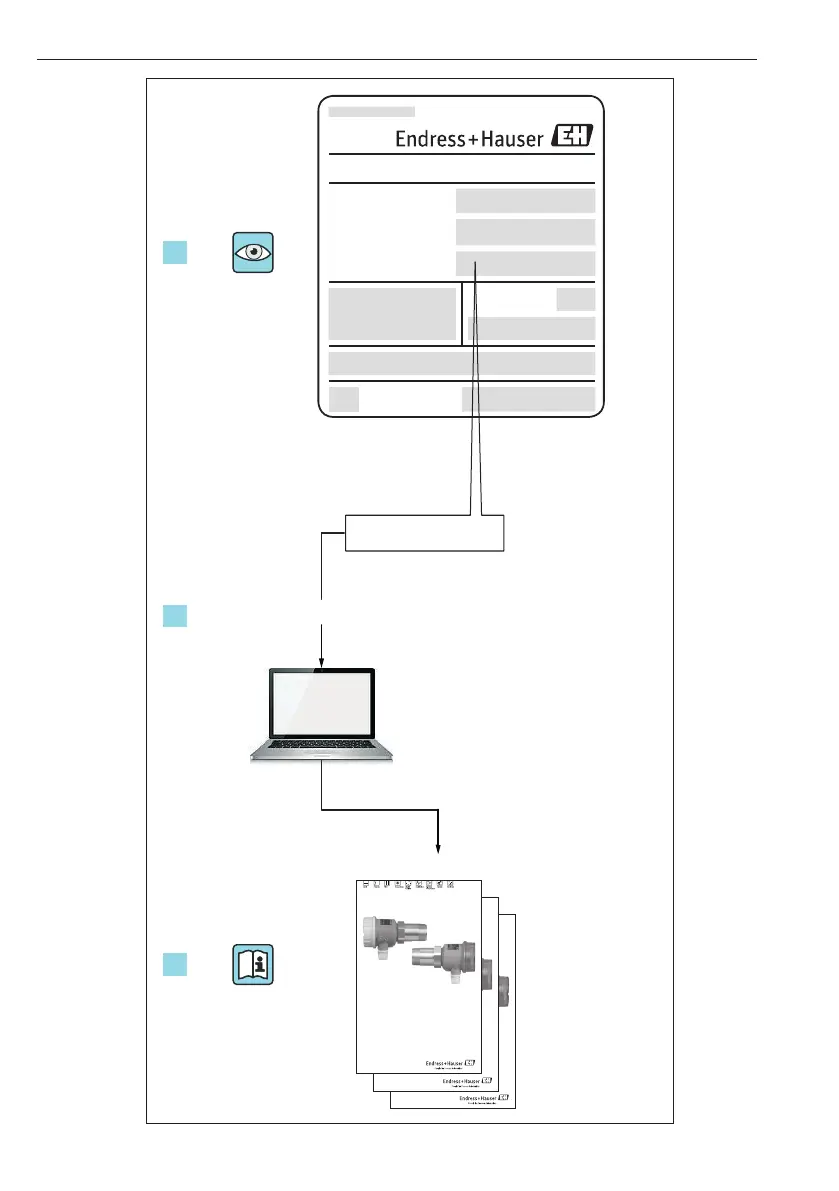

Soliwave FDR56/FQR56
Order code:
Ext. ord. cd.:
Ser.-No.:
→
1.
Order code:
Ext. ord. cd.:
Ser. no.:
www.endress.com/deviceviewer Endress+Hauser Operations App
XXXXXXXXXXXX
XXXXX-XXXXXX
XXX.XXXX.XX
Serial number
2.
3.
1.
Order code:
Ext. ord. cd.:
Ser. no.:
www.endress.com/deviceviewer Endress+Hauser Operations App
XXXXXXXXXXXX
XXXXX-XXXXXX
XXX.XXXX.XX
Serial number
2.
3.
1.
Order code:
Ext. ord. cd.:
Ser. no.:
www.endress.com/deviceviewer Endress+Hauser Operations App
XXXXXXXXXXXX
XXXXX-XXXXXX
XXX.XXXX.XX
Serial number
2.
Technical Information
Soliwave FQR56/FDR56
Microwave Barrier
Your benets
• Flush-mounted installation, non-contact installation
possible
• Easy installation using R 1½ or 1½ NPT thread or
suitable installation brackets
• Electronics housing can be rotated by 360°, allowing
orientation into optimum position after installation
• Mechanical robustness
- No wear
- Process-wetted ceramic sensor diaphragm (optional)
- Long service life
- Maintenance-free
• Indication of the signal strength on the transceiver
• Adjustable sensitivity
• Direct connection of the supply voltage
(emitter and transceiver separately or together)
• Mechanically compatible to FQR50/FDR50 microwave
barrier, existing process connections can continue to be
used; likewise, accessories such as adapter anges, instal-
lation brackets and sight glasses can still be used.
• Conforms to ATEX, CSA and IECEx
Application
The Soliwave microwave barrier uses a contact-free
procedure for detection. It can be installed in contai-
ners, conduits, shafts or on free fall shafts. It is possible
to take a measurement through non-metallic container
materials from the outside.
Suitable as level limit switch for controlling and counting all
types of bulk solids or piece goods (such as bags or boxes).
Typical bulk solids include:
• Wood chips, wood dust or our
• Plaster, cement, ash
• Paper or cardboard shred
• Gravel, sand
• Dried powders in general
The FQR56 emitter and FDR56 transceiver are compact
transmitters with integrated power unit, and the transceiver
has an additional integrated switching amplier, which ena-
bles easy electrical installation onsite.
The microwave barrier has an optional analog output
(4 – 20 mA current output) for analysis of build-up, fouling
etc. This allows, for example, the progress of fouling to be
evaluated from "uncontaminated" to "contaminated" (the
limits can be configured individually).
FQR56 emitter
FDR56 transceiver
TI00443F/97/EN/16.16
