Turbimax CUS51D Mounting
Endress+Hauser 21
This type of installation is particularly suitable for strong or turbulent flow
(> 0.5 m/s (1.6 ft/s)) in basins or channels.

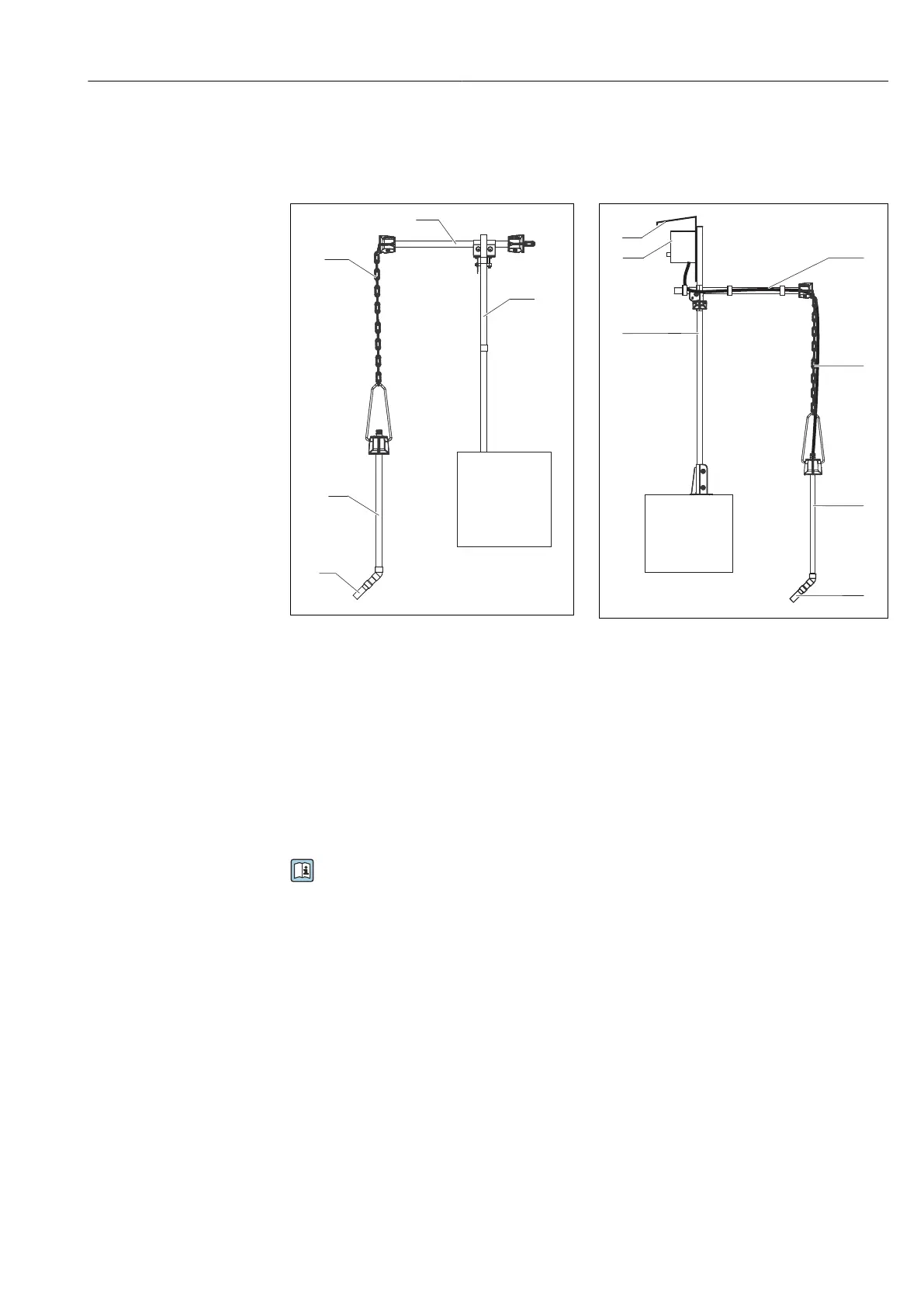

Installation with chain retainer
1
2
3
4
5
A0013384
 18 Chain retainer on railing
1 Turbimax CUS51D turbidity sensor
2 Wastewater assembly Flexdip CYA112
3 Chain of Flexdip CYH112 holder
4 Transverse pipe, Flexdip CYH112 holder
5 Main pipe, Flexdip CYH112 holder
1
2
3
4
5
6
7
A0051208
 19 Chain retainer on upright post
1 Main pipe, Flexdip CYH112 holder
2 Liquiline CM44x multi-channel transmitter
3 Weather protection cover
4 Transverse pipe, Flexdip CYH112 holder
5 Chain of Flexdip CYH112 holder
6 Wastewater assembly Flexdip CYA112
7 Turbimax CUS51D turbidity sensor
The chain retainer is particularly suitable for applications that require a sufficient distance
between the mounting location and the wall of the aeration basin. As the assembly is
freely suspended, any vibration of the upright post is avoided. The swinging of the chain
enhances the self-cleaning effect of the optics.
For detailed information on mounting with the wastewater assembly, see the
Operating Instructions BA00432C
