Mounting Turbimax CUS51D
22 Endress+Hauser
Mounting the cleaning unit
A0031105

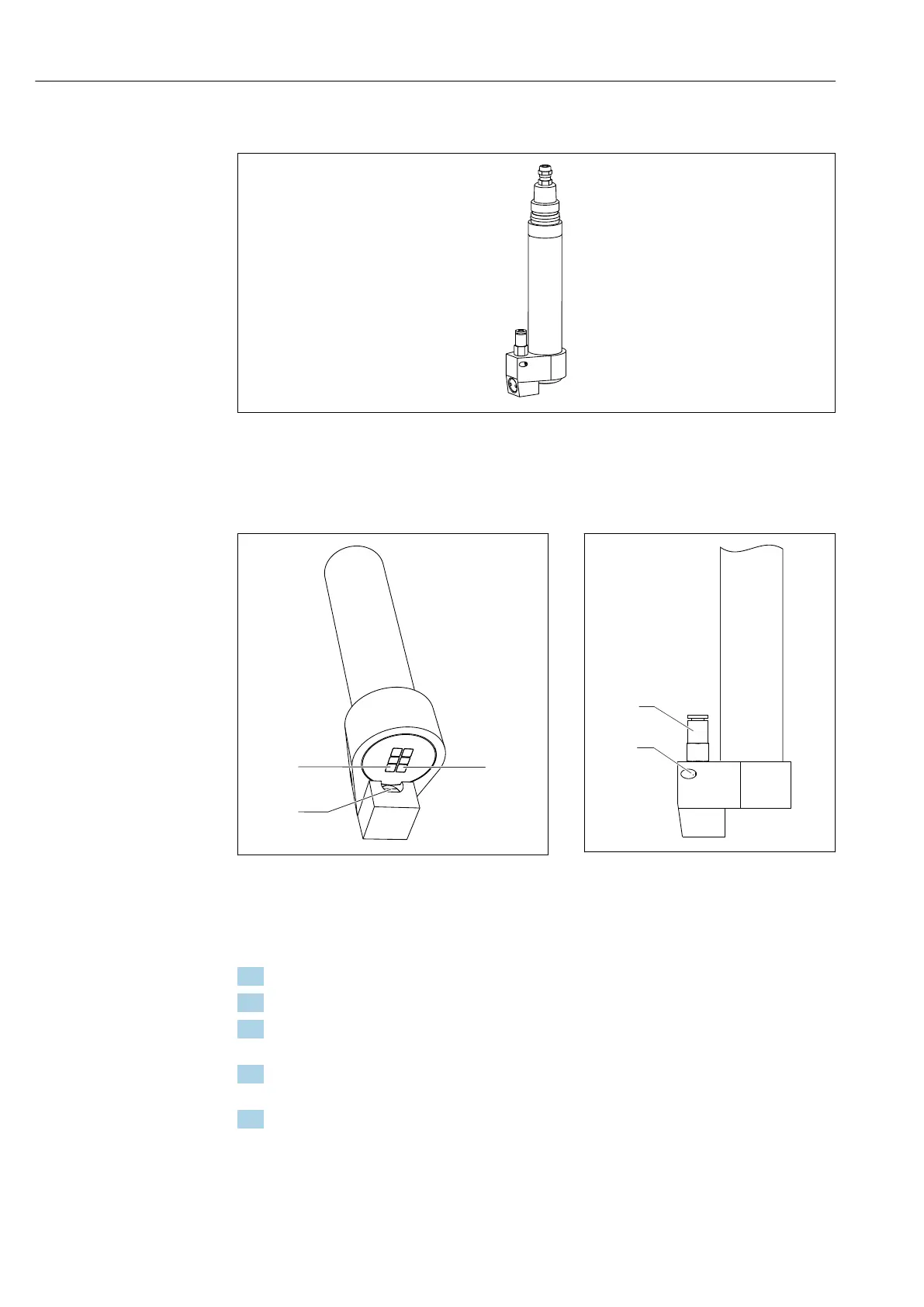

20 Turbimax CUS51D sensor with cleaning unit
The cleaning unit is particularly suitable for clear water or media with a high fat content
that tend to cause heavy buildup.
A0030860
21 Aligning the cleaning unit
1 LEDs
2 Nozzle
A0030861
22 Fixing the cleaning unit
1 Hose connection
2 Fixing screw
Mount the cleaning unit as follows:
1. Fit the cleaning unit onto the sensor as far as possible.
2. Locate the two LEDs (they are installed at an angle and have a bright background).
3. Position the cleaning unit in such a way that the nozzle is located at the side of the
two LEDs (→ 21).
4. Fix the cleaning unit in place with the securing screw using an Allen key
2.5 mm (0.1 in) (max. torque: 0.5 Nm (0.37 lbf ft).
5. Insert the compressed air hose of the compressor into the hose connection.
