90922001-J0 Rev A
Cordex® CXPS-E105 Edge Power Systems
User Guide
2. Introduction
2.1 Document scope
This document covers the features, options, installation, and startup of Cordex® CXPS-E105 edge power systems.
Images contained in this document are for illustrative purposes only and may not exactly match your installation.
To assist with installation, refer to the drawings at the end of this document.
In addition to this document, the following may be included in the documentation package that ships with
Cordex® CXPS-E105 edge power systems:
• Cordex® CXC HP controller software user guide (0350058-J0)
• Cordex® CXDM-E1 DC distribution panel user guide (0200066-J0)
• Cordex® HP 2.4/3.0 kW rectifier and shelf user guide (0100037-J0)
2.2 Product overview
Cordex® CXPS-E105 edge power systems are complete integrated 48 Vdc power systems. Each system uses the
advanced Cordex® CXCi HP controller and Cordex® HP 2.4 kW or 3.0 kW rectifier modules. The Cordex® CXDM-E1
1RU 225 A distribution panel provides front access for DC distribution circuit breakers.
Cordex® HP rectifier modules use a high frequency, switched mode conversion technique to provide a fully
regulated and isolated DC output from the AC mains. The rectifier input accepts a wide range of input voltages,
allowing the flexibility to connect to supply mains rated 120/208-277 Vac and 50/60 Hz. The system has derated
output below 187 Vac input.
The rectifier power modules are hot swappable meaning they can be inserted or removed from the shelf without
cutting power to or from the system or the load. Rectifier modules are not included with the base system, but
may be purchased along with the system at the time of ordering or added after the shelf has been installed. The
shelf rectifier system includes the system controller.
The system controller allows the user to configure, monitor, and control the entire DC power system locally or
remotely via a web browser. Features of the unit include temperature compensation, auto equalization, remote
access, email alarm notification, battery diagnostics, as well as web server and SNMP support for configuration
and monitoring.
Details of the controller operation are provided in the software documentation.

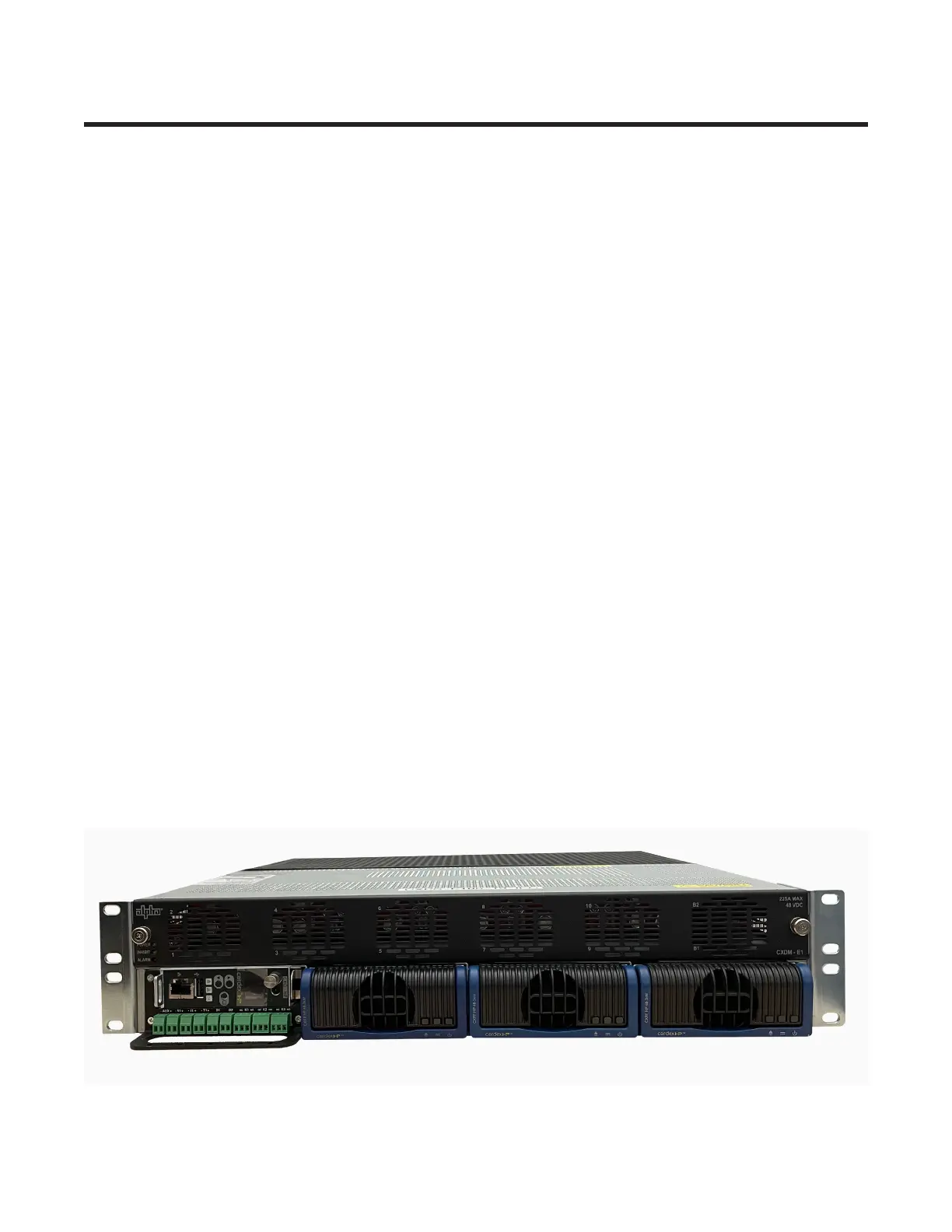

Figure 1: Front view of the Cordex® CXPS-E105 225 A edge power system (19-inch)
