4.1.3 Low voltage battery disconnect
A 225 amp low voltage battery disconnect (LVBD) is installed in series with the batteries. The LVBD override
switch is located behind the front panel, which can be removed by loosening the thumbscrews. The switch can
then be used to override LVBD contactor operation as a safeguard during controller maintenance.
Battery breaker
connections
Load breaker
connections

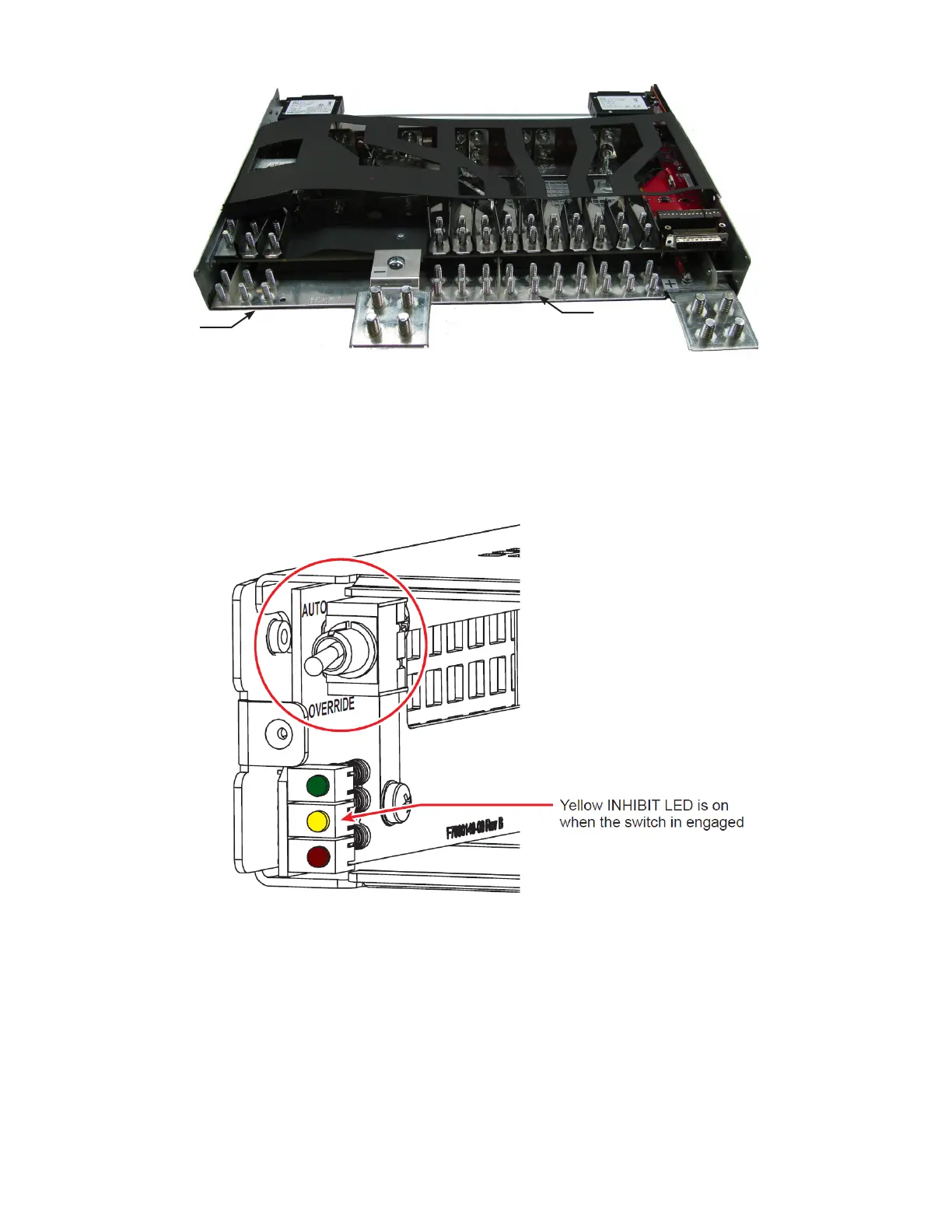

Figure 3: Cordex® CXDM-E1 distribution panel rear output connections
Figure 4: LVBD override switch (front cover removed)
