4. Features
4.1 Cordex® CXDM-E1 DC distribution panel
The Cordex® CXDM-E1 DC distribution panel is an integrated 1RU DC system distribution panel designed for
small to mid-sized power applications.
All distribution cables are connected with two-hole termination lugs. The system has 10 positions for mid-trip type
load breakers, at up to 100 amps per position, and two positions for series-trip type plug-in battery breakers at
125 amps maximum per single pole position or one 200 amp two pole.
A battery current shunt and low voltage battery disconnect are factory installed. A terminal block is provided
on the rear of the distribution panel to communicate with the Cordex® CXCi HP controller integrated in the
Cordex®HP 2.4/3.0 kW rectifier shelf.
The distribution panel has rear busbars for rectifier input for either cabling or busbar connections for system
integration with Cordex® HP rectifier shelves.
4.1.1 Distribution panel status indicators
The LEDs, located on the front panel, indicate the following information:
Table C — Status indicators
POWER (green) Power to the shelf
INHIBIT (yellow) LVD switch in override
ALARM (red) Breaker tripped
4.1.2 Distribution configurations
The Cordex® CXDM-E1 distribution panel contains 12 plug-in breaker positions with two-hole lug connection
points for both breaker output and the return bus. The breaker distribution is configured as 10 load breaker
positions and two battery breaker positions.

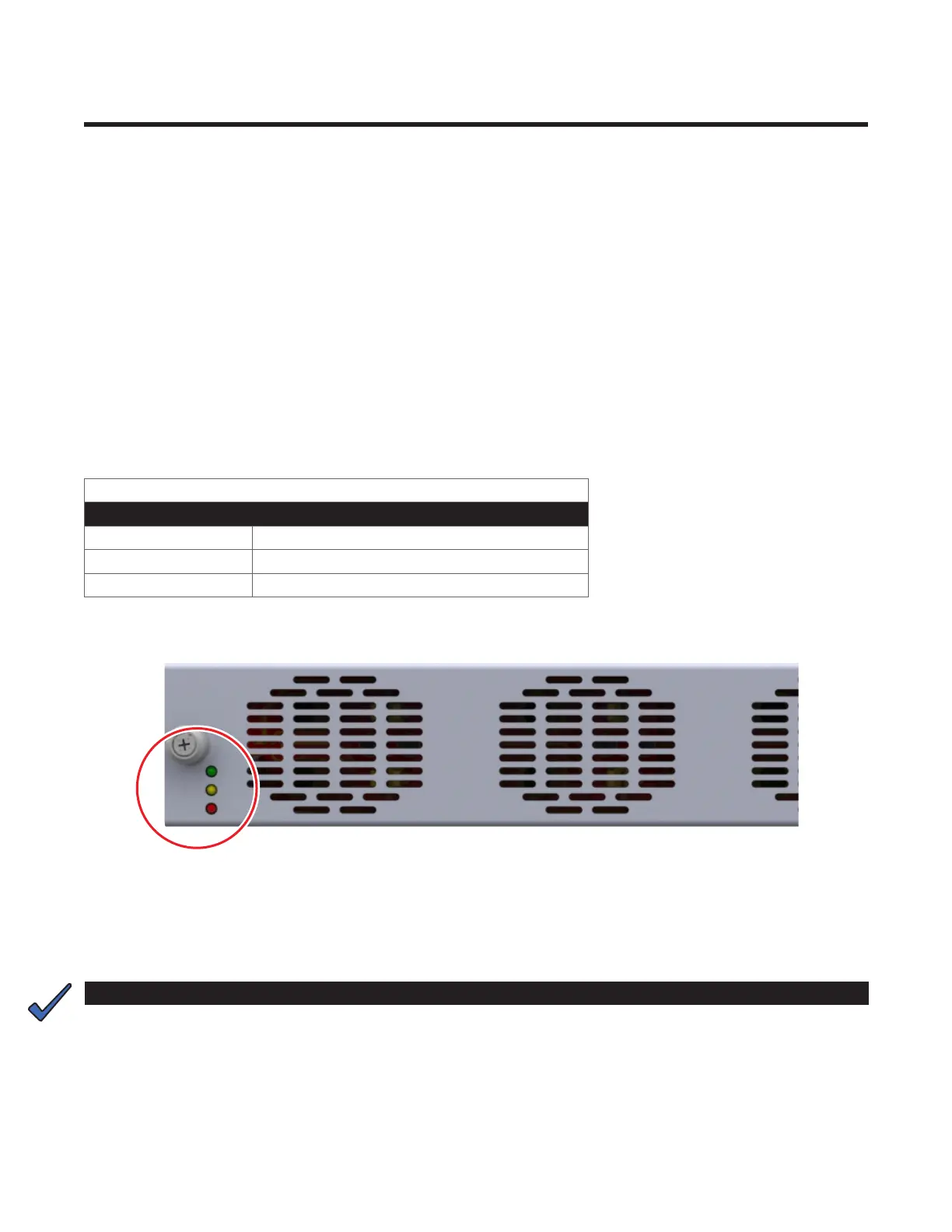

Figure 2: Front panel status indicators
POWER
INHIBIT
ALARM
NOTICE
Use mid-trip plug-in bullet style breakers as load breakers, and series-trip plug-in bullet style
breakers as battery breakers.
