170922001-J0 Rev A
Cordex® CXPS-E105 Edge Power Systems
User Guide
4.2 Cordex® CXCi HP controller
The Cordex® CXCi HP controller is mounted in the power system shelf and brings advanced monitoring
technology to the power system. This compact system controller is equipped with the complete range of
software features, including the following:
• Ethernet port for local and remote communications
• User definable alarms
• Daily logging of power system events and system statistics.
Cordex® CXCi HP in-shelf controllers have an OLED display. This display shows 30 characters total (five lines high,
six characters wide) and the controller has three navigation buttons and one reset button.

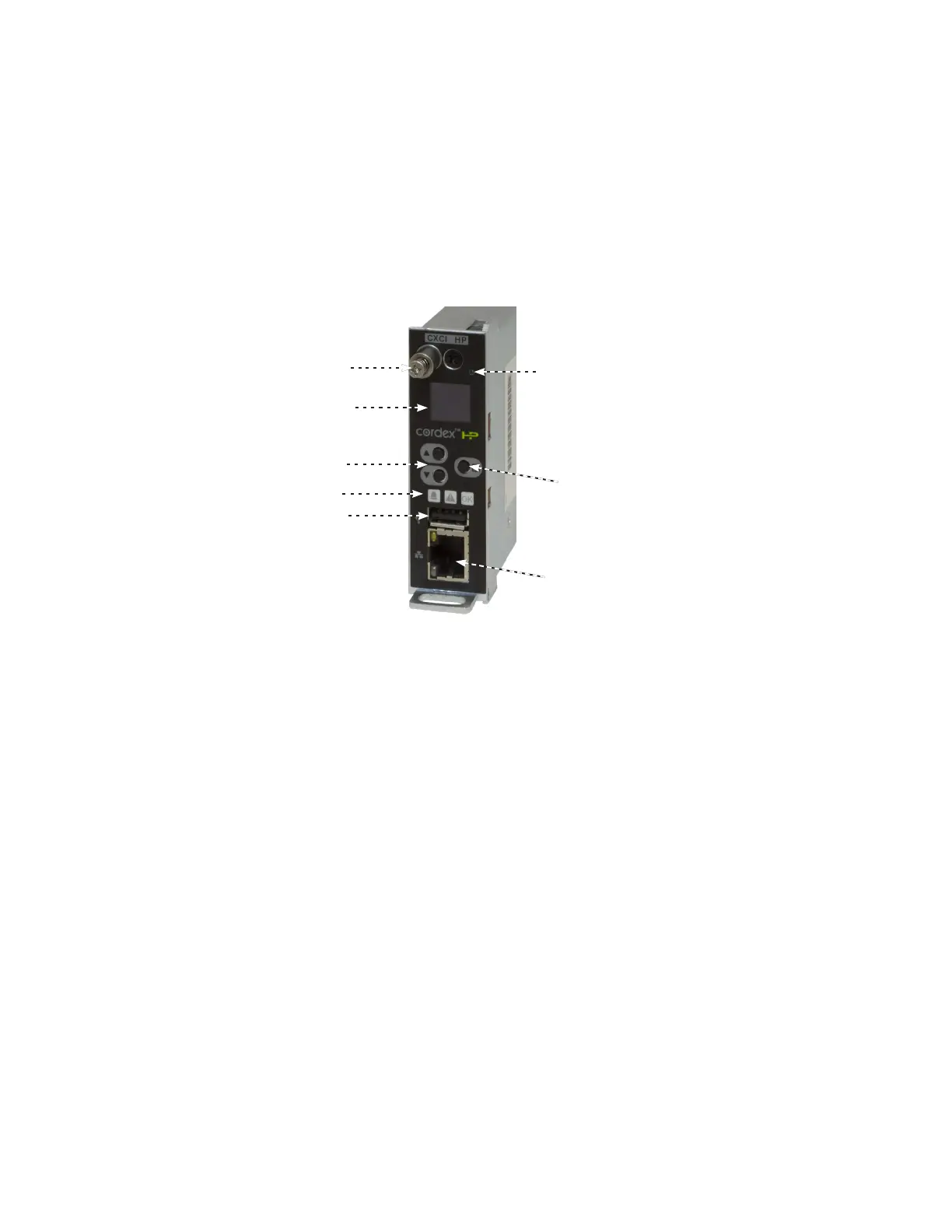

Ethernet port
OLED display
Select button
System status LEDs
Figure 5: Cordex® CXCi HP controller front panel
Thumbscrew
Reset button
USB port
Forward and back
menu buttons
The in-shelf display has three main operating modes: dashboard, menu, and screen saver. After 20 minutes with
no activity, the in-shelf controller goes into screen saver mode and the display shuts o. From screen saver mode,
select any of the three navigation buttons to re-activate the screen and enter dashboard mode.
4.2.1 Display
In dashboard mode, the in-shelf display shows the key operating parameters of a system. For example, output
voltage and load current. If more than one system is defined, you can cycle between systems using the Forward
and Back buttons. With multiple systems, you can specify a default system, which is then displayed first.
