OF
SHEET
CUSTOMER CONNECTION,
CXPS-E105,19",CX48-2.4/3.0kW,
CXCI-HP
0922001-08
32
C

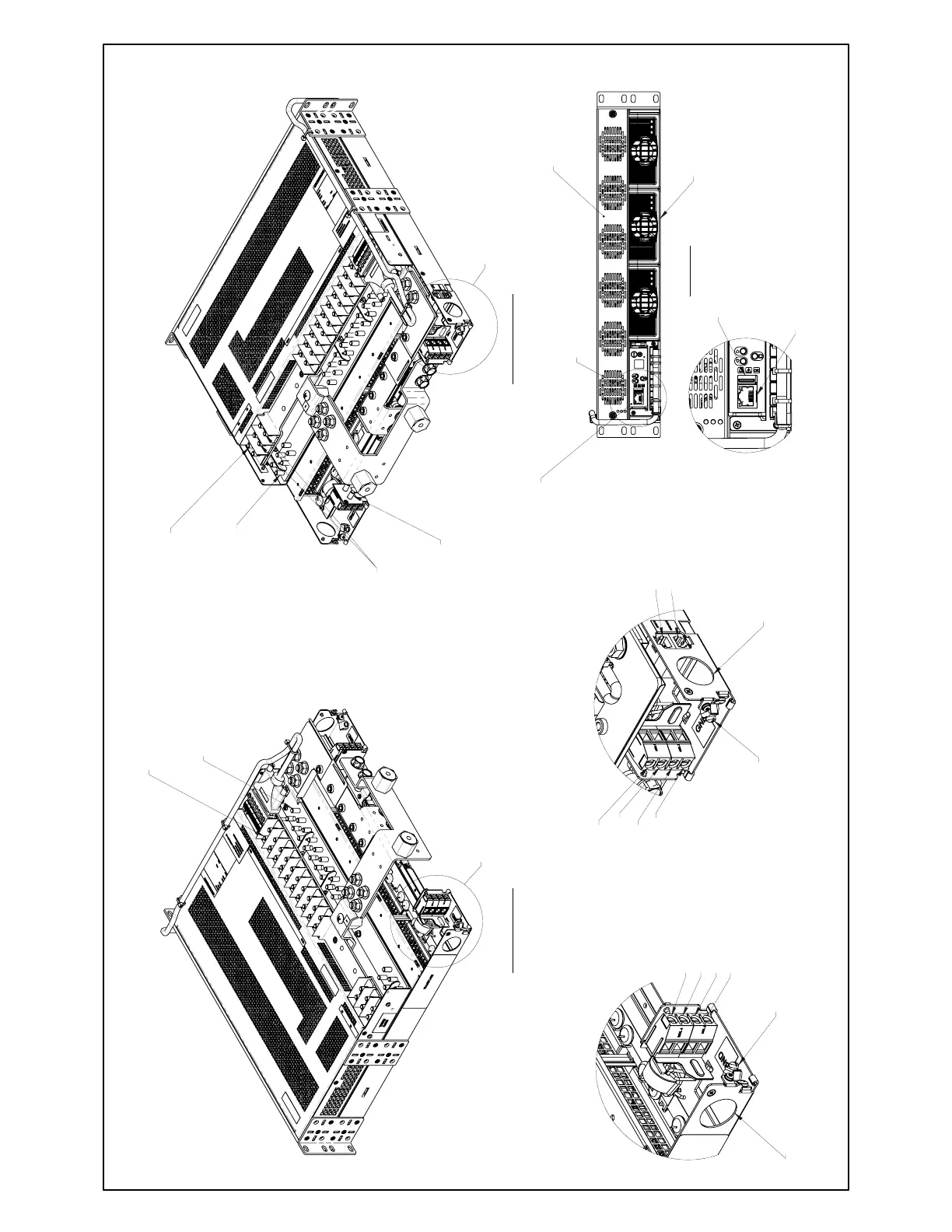

LEFT-REAR ISO VIEW
(SOME COVERS ARE HIDDEN FOR CLARITY)
LOAD BREAKER OUTPUT TERMINATIONS
1/4"-20 STUDS ON 5/8" CENTRES
10 SETS
BREAKER RETURNS
1/4"-20 STUDS ON 5/8" CENTRES
10 SETS
D
RIGHT-REAR ISO VIEW
(SOME COVERS ARE HIDDEN FOR CLARITY)
CHASSIS GROUND
2-HOLE LUG 1/4" Ø ON 5/8" CENTERS.
1 SET
SYSTEM GROUND
1/4"-20 STUDS ON
5/8" CENTRES
1 SET
BATTERY BREAKER
OUTPUT TERMINATIONS
1/4"-20 STUDS ON 5/8" CENTRES
2 SETS
CHASSIS GROUND
1/4"-20 STUDS ON
5/8" CENTRES
1 SET
E
FRONT VIEW
CXDM-E1 MODULAR BREAKER
DISTRIBUTION ASSEMBLY
CORDEX 48V-2.4/3.0kW
19" RECTIFIER SHELF
w/ CXCI-HP SYSTEM CONTROLLER
RECTIFIERS ARE SHOWN
FOR REFERENCE ONLY.
NOT INCLUDED IN THE SYSTEM
DETAIL C
L1 (AC FEED FOR RECTIFIER SLOT 4)
L2/N (AC FEED FOR RECTIFIER SLOT 4)
L1 (AC FEED FOR RECTIFIER SLOT 3)
L2/N (AC FEED FOR RECTIFIER SLOT 3)
PROTECTIVE EARTH TERMINAL
AC WIREWAY, 1.02" HOLE
FOR CUSTOMER SUPPLIED 3/4" TRADE SIZE
CONDUIT FITTING.
DETAIL D
AC WIREWAY, 1.02" HOLE
FOR CUSTOMER SUPPLIED 3/4" TRADE SIZE
CONDUIT FITTING.
RJ12, CAN 1
RJ12, CAN 2
NOTE: DAISYCHAIN CAN BUS
FROM ONE SHELF TO THE NEXT,
INSERT TERMINATOR P/N 5450228-001
IN LAST POSITION.
L1 (AC FEED FOR RECTIFIER SLOT 1)
L2/N (AC FEED FOR RECTIFIER SLOT 1)
L1 (AC FEED FOR RECTIFIER SLOT 2)
L2/N (AC FEED FOR RECTIFIER SLOT 2)
PROTECTIVE EARTH TERMINAL
DETAIL E
LAN/ETHERNET PORT
USB PORT
