Battery Installation Manual
Pubication No: US-DDM-IM-AA - June 2016
FRAME ASSEMBLY AND INSTALLATION
To assemble and install the frame for the PowerSafe
®
DDm
battery system, follow the procedure below using the system
layout determined in the “System Layout” section.
Base Beams
1. LEVEL with customer-supplied floor shims, and anchor in
place. Do NOT torque anchor bolts until frame assembly is
complete.
2. Install ALL base beams before continuing.
Vertical Channels
1. Insert vertical channels into base beams.
See Figure 9.
2. Bolt vertical channels to base beams. Refer to below list
for hardware order and Figure 10:
Serrated Hex Bolt (M10x1.5 – 100mm)
Rack Frame
External Tooth Washer
Flat Washer
Lock Washer
Hex Nut
3. Torque all connections (except anchor bolts) to 40 ft-lbs.

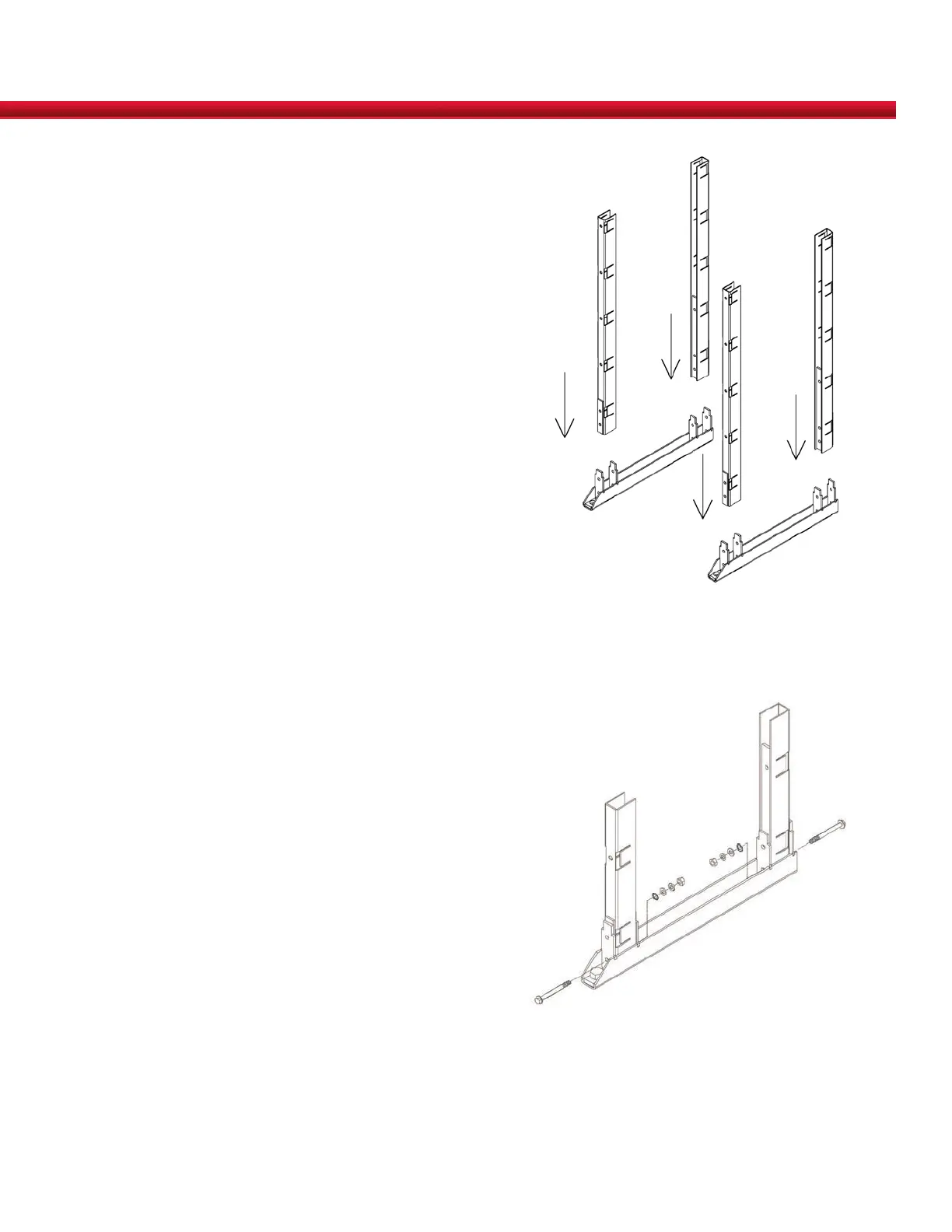

VERTICAL CHANNEL TO BASE
BEAM HARDWARE DETAIL
FIGURE 10
INSTALL VERTICALS
FIGURE 9
