Cell Support Shelves
Starting at the bottom of the rack:
1. Place shelves over horizontals. See Figure 15.
2. Align holes of shelf with holes of horizontal channels.
Bolt the shelf to the REAR horizontal using (two)
M10x1.5 – 25mm Serrated Hex Bolts in the two OUTSIDE
holes of the shelf. See Figure 16.
3. Torque these bolts to 20 ft-lbs.
4. After ALL shelves for the rack are in place, position the
vertical channels so that the front and rear horizontals fit
tightly against the shelves. See Figure 17.
5. Torque ALL bolts connecting the horizontals to the
verticals to 20 ft-lbs.
NOTE:
MULTI-STACK WITH ZERO SEPARATION systems are
fastened together at the top front and top rear with a
steel tie bar/plate.
6. Torque all anchor bolts according to system design and
manufacturer’s recommendations.

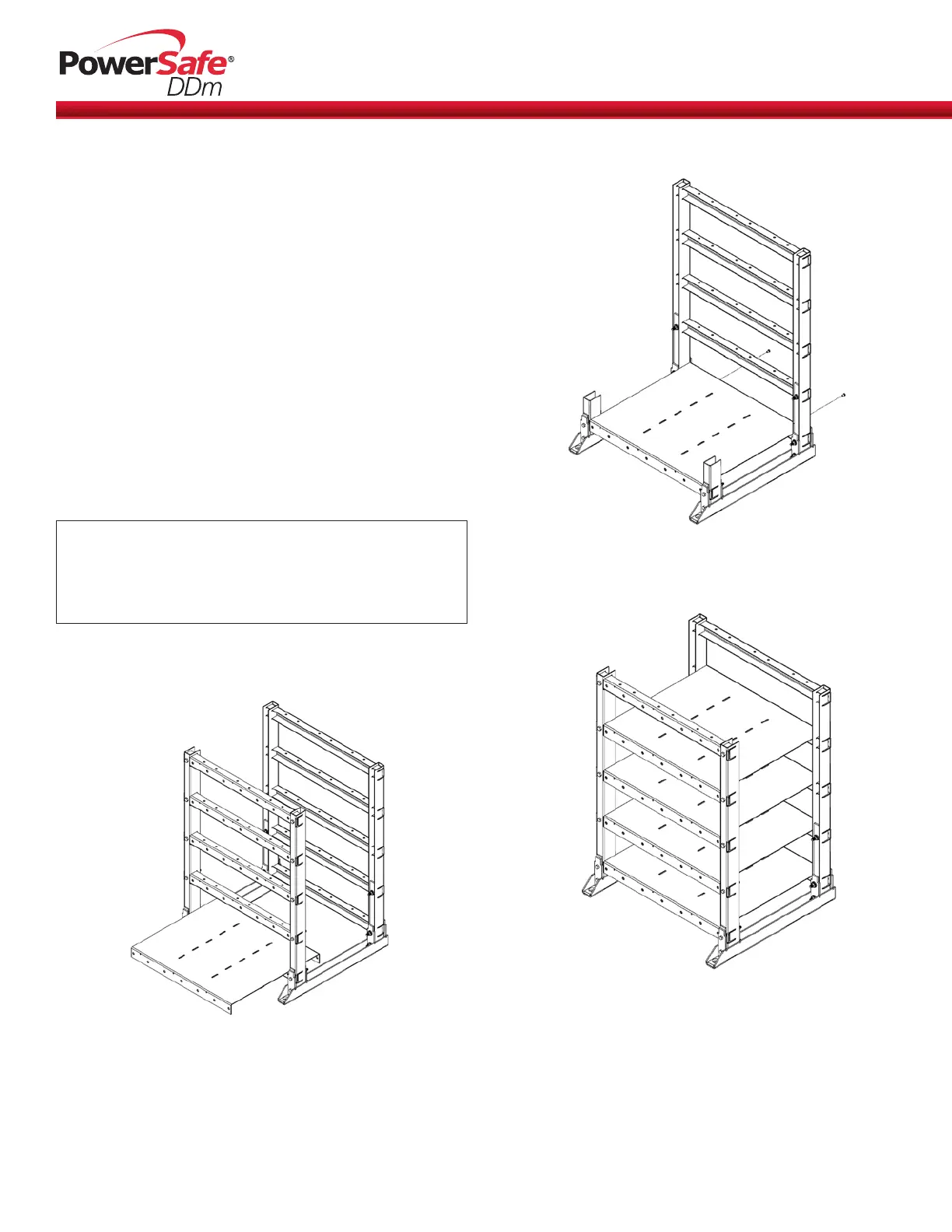

INSTALL BOTTOM CELL SUPPORT SHELF
FIGURE 15
CELL SUPPORT SHELF REAR HARDWARE DETAIL
FIGURE 16
INSTALL CELL SUPPORT SHELVES
FIGURE 17
