Horizontal Channels
Starting at the bottom of the rear verticals:
1. Insert horizontal channels into the vertical channels.
Center the horizontals between the verticals. See Figures
11A and 11B.
2. Bolt horizontal channels to vertical channels.
Refer to below list for hardware order and Figure 12:
NOTE:
The bottom two horizontal channels require full thread
longer bolts at the vertical channel.
Bottom horizontal channel:
• Serrated Hex Bolt (M10x1.5 – 100mm Full Threads)
• Rack Frame
• External Tooth Washer
• Flat Washer
• Lock Washer
• Hex Nut
Second from bottom horizontal channel:
• Serrated Hex Bolt (M10x1.5 – 75mm Full Threads)
• Rack Frame
• External Tooth Washer
• Flat Washer
• Lock Washer
• Hex Nut
All other horizontals:
• Serrated Hex Bolt (M10x1.5 – 25mm)
3. Finger-tighten connections.
4. Install all rear horizontal channels before continuing.

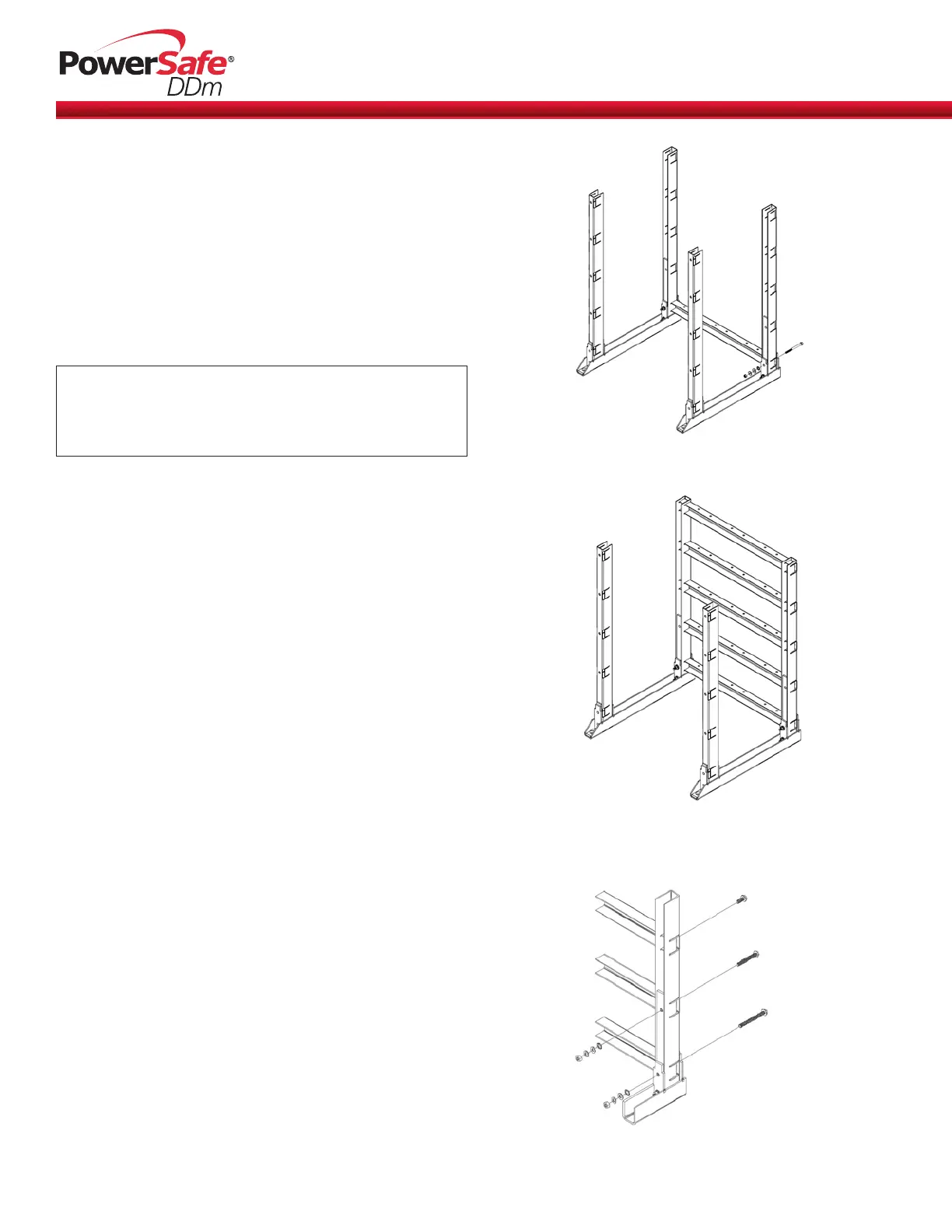

INSTALL REAR HORIZONTAL CHANNELS
FIGURE 11B
REAR HORIZONTAL CHANNEL HARDWARE DETAIL
FIGURE 12
INSTALL REAR HORIZONTAL CHANNELS
FIGURE 11A
12
To Next Page
