Battery Installation Manual
Pubication No: US-DDM-IM-AA - June 2016
Terminal Bars
Terminal bars are supplied with the battery system to provide
a cell terminal-to-terminal plate connection.
1. Inspect the system to be assured that all cells are
connected correctly – POSITIVE to NEGATIVE and
according to the ASSEMBLY DRAWING.
2. Clean the terminal bar contact area with a stiff-bristle
nonmetallic brush/pad until the plated surface is bright.
Be careful not to remove the plating with excessive
brushing.
3. Apply a light coat of heated NO-OX-ID grease to the
terminal bar contact area with a small paintbrush.
4. Install terminal bars as shown in Figure 26.
5. Torque bolts to 85 in-lbs.
6. Apply a light coat of heated NO-OX-ID grease to the bolted
connections with a small paintbrush

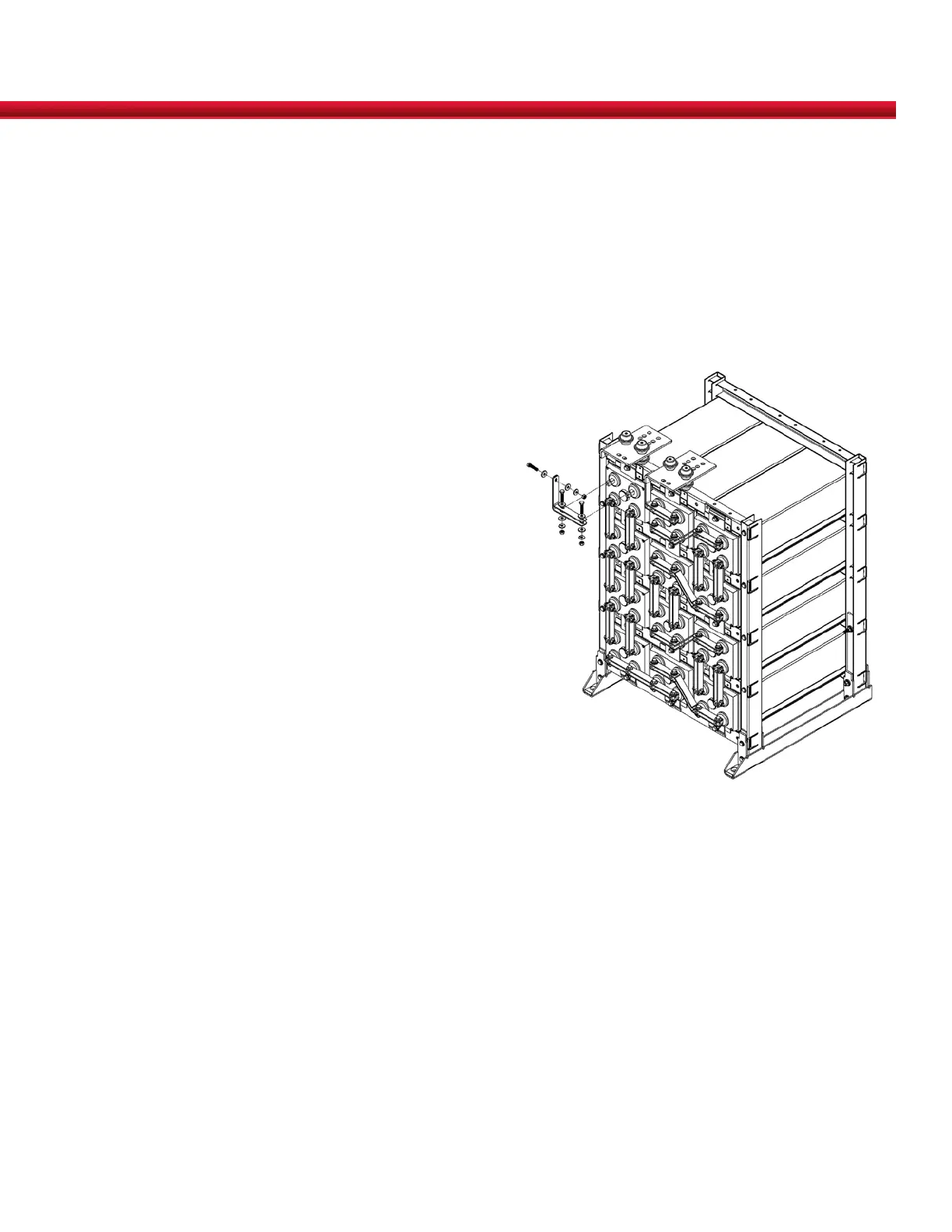

INSTALL TERMINAL BARS
FIGURE 26
19
