Battery Installation Manual
Pubication No: US-DDM-IM-AA - June 2016
Starting at the bottom of the front verticals:
1. Insert horizontal channels into the vertical channels.
Center the horizontals between the verticals. See Figures
13A and 13B.
2. Bolt horizontal channels to vertical channels.
Refer to below list for hardware order and Figure 14.
NOTE:
The bottom two horizontal channels require full thread
longer bolts at the vertical channel.
Bottom horizontal channel:
• Serrated Hex Bolt (M10x1.5 – 100mm Full Threads)
• Rack Frame
• External Tooth Washer
• Flat Washer
• Lock Washer
• Hex Nut
Second from bottom horizontal channel:
• Serrated Hex Bolt (M10x1.5 – 75mm Full Threads)
• Rack Frame
• External Tooth Washer
• Flat Washer
• Lock Washer
• Hex Nut
All other horizontals:
• Serrated Hex Bolt (M10x1.5 – 25mm)
3. Finger-tighten connections.
4. Install all front horizontal channels before continuing.

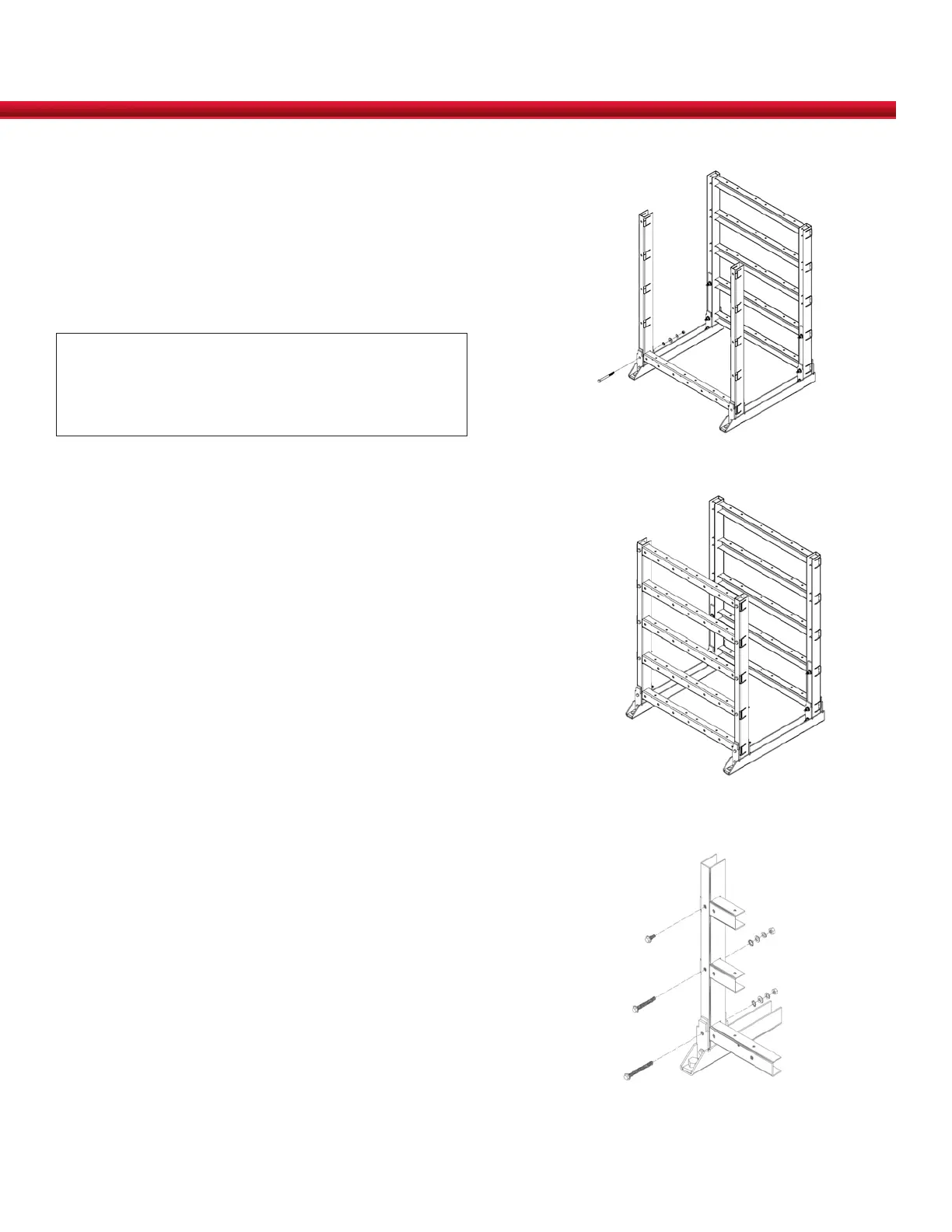

INSTALL FRONT HORIZONTAL CHANNELS
FIGURE 13A
INSTALL FRONT HORIZONTAL CHANNELS
FIGURE 13B
FRONT HORIZONTAL CHANNEL HARDWARE DETAIL
FIGURE 14
13
