INSTALLATION

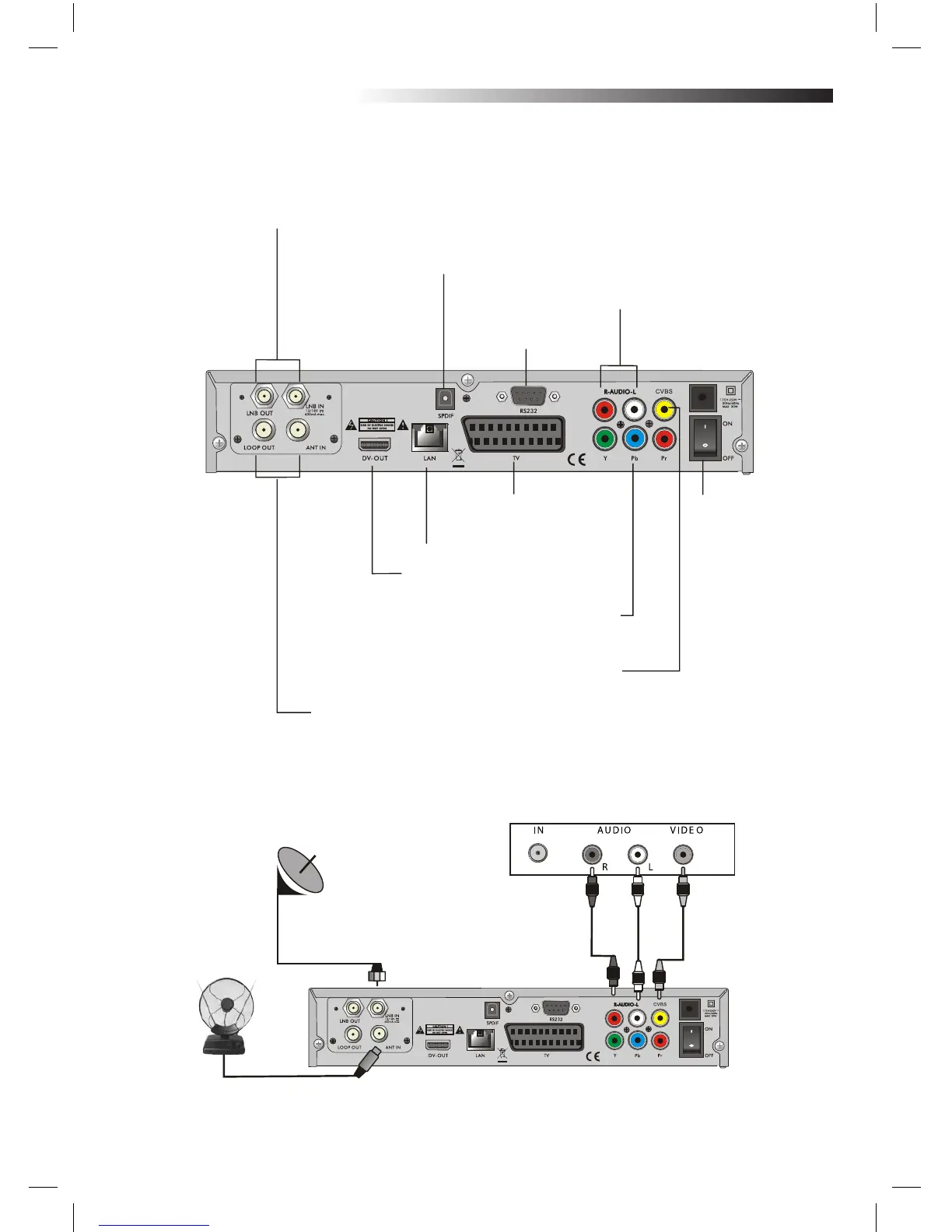

LNB IN: CONNECT TO SATELLITE ANTENNA
LNB OUT:CONNECT TO THE OTHER RECEIVER
CONNECT TO A DIGITAL AMPLIFIER
ANT IN: CONNECT TO ANTENNA
LOOP OUT: CONNECT TO ANOTHER RECEIVER
DIGITAL OUTPUT TO CONNECT
THE RECEIVER TO A DIGITAL AMPLIFIER
Satellite Dish
Terrestrial
Antenna
TV
CONNECT TO TV SET OR VIDEO PROJECTOR
YPbPr OR COMPONENT INPUTS
CONNECT TO TV
SET DV-OUT INPUT
CONNECT
TO THE INTERNET
CONNECT TO TV
USING A SCART CABLE
POWER ON/OFF
CONNECT TO AUDIO R/L TO
TV OR AUDIO TUNER
CONNECT TO A PC
FOR S/W UPGRADE
Rear Panel
Connecting to TV using SCART support
