Chapter 8—Insert Effect Parameters
To access the Parameters described on this page (unless otherwise noted):
Press Effects, turn the Parameter knob to select Insert Effect, and press Enter. Turn the Parameter
knob to select the parameter, and use the Value knob to change the parameter's Setting.
10 ENSONIQ MR-Rack Musician’s Manual
Mid 1 Gain Off, -49.5dB to +24dB Sets the amount of boost or cut applied to this mid frequency shelf.
EQ Output Off, -49.5dB to +24dB Controls the gain coming out of the parametric EQ.
Dry Blend Full Dry to Full Wet Controls the dry to wet mix of the chorus .
HPF Cutoff 10Hz to 10.9kHz Controls the cutoff frequency of the high pass filter frequency applied to
the input signal.
LFO Rate 1/1 Sys to 1/32 Sys, 0.0Hz
to 7.0Hz
Controls the rate of pitch modulation applied to the delays.
Chorus Depth 0.0ms to 300ms Controls the excursion of modulation.
ChorusCenter 0.0ms to 300.0ms Controls the nominal delay time of the chorus about which the delay
modulation occurs. Adjusting this parameter will change the tonal
character of the chorus.
Center Offset 0% to 100% Controls the relative spacing in nominal delay time among the eight
voices.
Chorus Phase -180deg to +180deg Controls the relative phase between left and right LFOs.
Chorus Feedback -99% to +99% Controls the amount of feedback applied to the chorus. Positive settings
are in-phase, negative values are out-of-phase, and impart a different
tonality to the chorus.

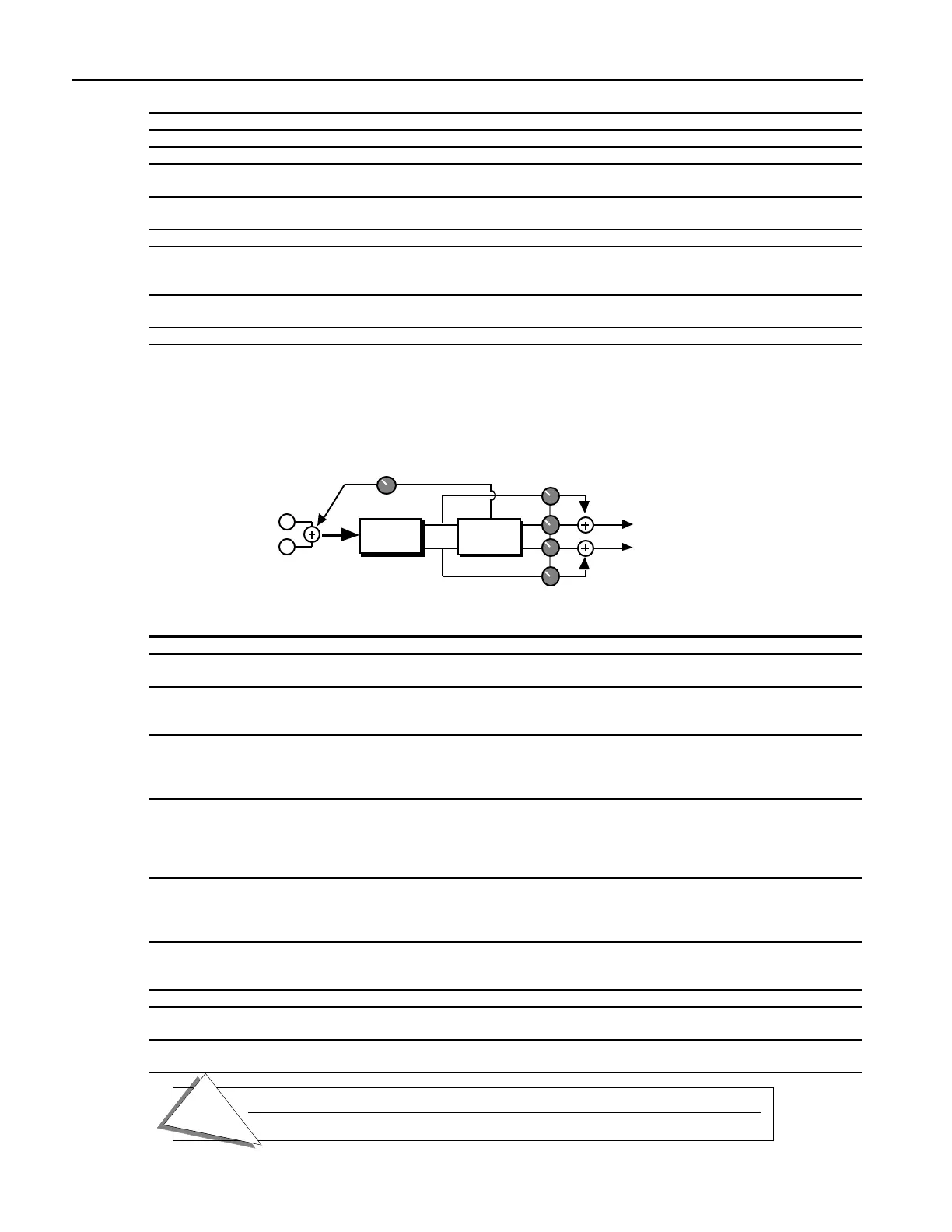

12 Rev→Chorus
Chorus Mix
Output
L
R
Chorus
Right
Left
Reverb
System Feedback
C
o
m
b
i
n
e
s
a
p
l
a
t
e
r
e
v
e
r
b
w
i
t
h
a
s
t
e
r
e
o
c
h
o
r
u
s
.
Parameter Range Description
Decay 0.0sec to 10.0sec Controls the amount of time it takes for the reverberation to decay after
the input signal stops.
HF Damping 100Hz to 21.2kHz Controls the rate of attenuation of high frequencies in the decay of the
reverberation. Increasing the value of this parameter will gradually filter
out (dampen) more and more high frequency energy.
HF Bandwidth 100Hz to 21.2kHz The high frequency bandwidth acts as a low pass filter on the signal
going into the reverb, controlling the amount of high frequencies that will
pass into the effect. The higher the setting, the more high frequencies are
allowed to pass.
Diffusion 1 0 to 100 Smears the input signal transients, to diffuse and smooth the sound.
Lower values will cause impulse sounds to appear as a series of discrete
echoes, while higher values tend to increase the smear (smoother
sounding with fewer discrete echoes). We recommend settings of 50 for
starters.
Diffusion 2 0 to 100 This parameter, similar to and in series with Diffusion1, performs the
same way but controls lower frequency ranges. Experiment with different
levels between the diffusion parameters to find the settings that are right
for your source.
Definition 0 to 100 Controls the rate at which echo density is increased with time. Setting
this parameter too high can cause the echo density to build at a rate which
exceeds the decay rate.
Chorus Mix Full Dry to Full Wet Controls the Dry/Wet mix of the chorus.
LFO Rate 1/1 Sys to 1/32 Sys, 0.0Hz
to 20.0Hz
Controls the rate of pitch modulation to the chorus.
LFO Shape Triangle, Sine, Sawtooth,
Square, Asym, Step
Determines the shape that the LFO will use for pitch modulation.
