Chapter 8—Insert Effect Parameters
To access the Parameters described on this page (unless otherwise noted):
Press Effects, turn the Parameter knob to select Insert Effect, and press Enter. Turn the Parameter
knob to select the parameter, and use the Value knob to change the parameter's Setting.
16 ENSONIQ MR-Rack Musician’s Manual

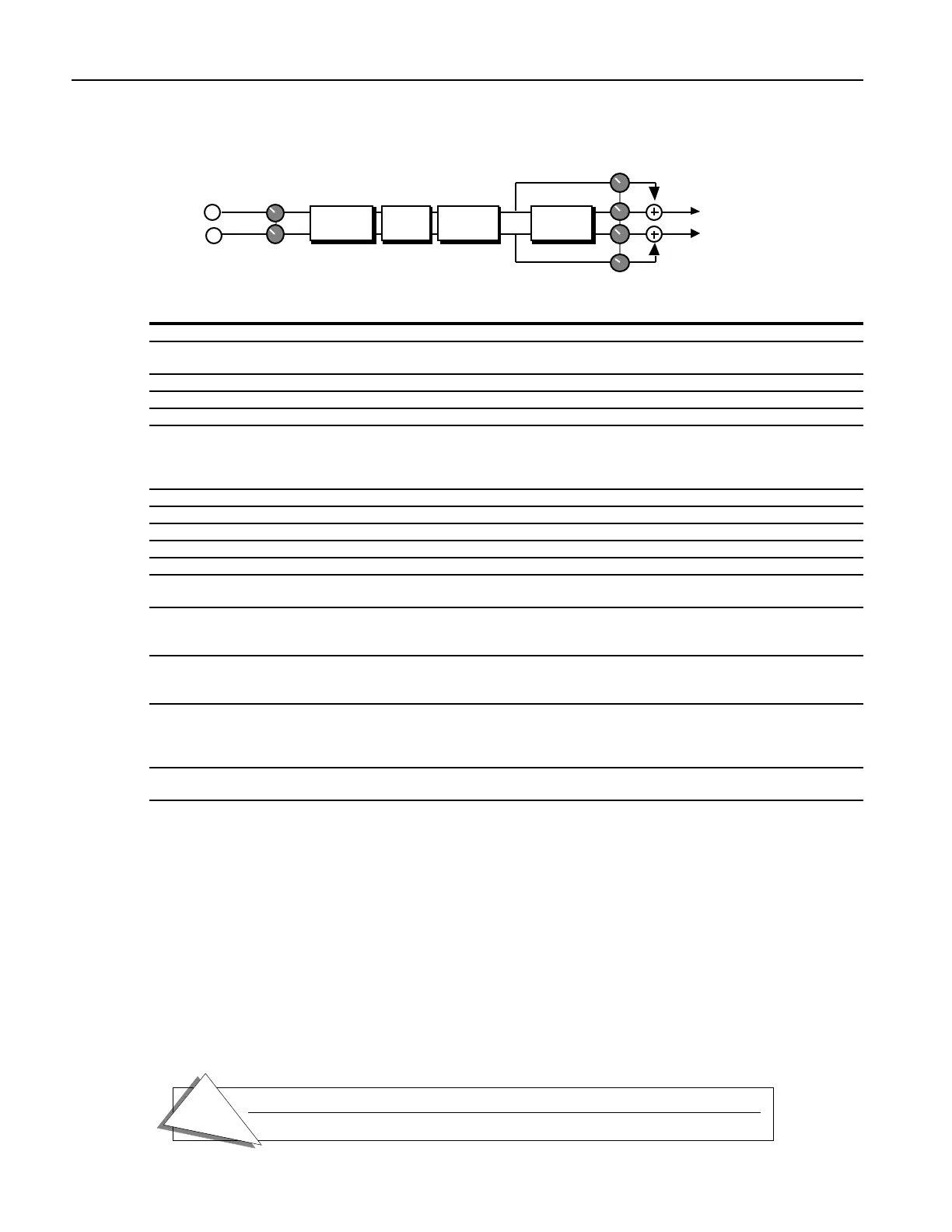

18 EQ→Reverb
Reverb Mix
Output
L
R
Right
Left
ReverbLo Shelf Mid Hi Shelf
EQ Input
A
p
a
r
a
m
e
t
r
i
c
E
Q
w
i
t
h
r
e
v
e
r
b
.
Parameter Range Description
EQ Input Off, -49.5dB to +24dB Adjusts the input level trim to the EQs to eliminate the possibility of
clipping boosted signals.
LoShelf Fc 10Hz to 20.0kHz Sets the center of the low frequency EQ.
LoShelf Gain Off, -49.5dB to +24dB Sets the amount of boost or cut applied to this low frequency shelf.
Mid 1 Fc 10Hz to 20.0kHz Sets the center of the mid frequency parametric.
Mid 1 Q 1.0 to 40.0 This parameter is a bandwidth control that determines the width of the
resonant peak at the center frequency band. This parameter is equal to the
cutoff frequency divided by the bandwidth. By raising the value, you can
produce a narrower bandwidth.
Mid 1 Gain Off, -49.5dB to +24dB Sets the amount of boost or cut applied to this high frequency shelf.
HiShelf Fc 10Hz to 20.0kHz Sets the center frequency of the high frequency shelf.
HiShelf Gain Off, -49.5dB to +24dB Sets the amount of boost or cut applied to this shelf.
EQ Output Off, -49.5dB to +24dB Controls the gain coming out of the parametric EQ.
Rev Mix Full Dry to Full Wet Controls the reverb mix.
Decay 0.0sec to 10.0sec Controls the amount of time it takes for the reverb to decay after the input
signal stops.
HF Damping 100Hz to 21.2kHz Controls the rate of attenuation of high frequencies in the decay of the
reverb. Increasing the value of this parameter will gradually filter out
(dampen) more and more high frequency energy.
HF Bandwidth 100Hz to 21.2kHz Acts as a low pass filter on the signal going into the reverb, controlling the
amount of high frequencies that will pass. The higher the setting, the more
high frequencies are allowed to pass.
Diffusion 1 0 to 100 Smears the input signal transients, to diffuse and smooth the sound. Lower
values will cause impulse sounds to appear as a series of discrete echoes,
while higher values tend to increase the smear (smoother sounding with
fewer discrete echoes). We recommend settings of 50 for starters.
Diffusion 2 0 to 100 This parameter, similar to and in series with Diffusion1, controls lower
frequency ranges.
Definition 0 to 100 Controls the rate at which echo density is increased with time. Setting this
too high can cause the echo density to build at a rate which exceeds the
decay rate.
