Chapter 8—Insert Effect Parameters
To access the Parameters described on this page (unless otherwise noted):
Press Effects, turn the Parameter knob to select Insert Effect, and press Enter. Turn the Parameter
knob to select the parameter, and use the Value knob to change the parameter's Setting.
ENSONIQ MR-Rack Musician’s Manual 17

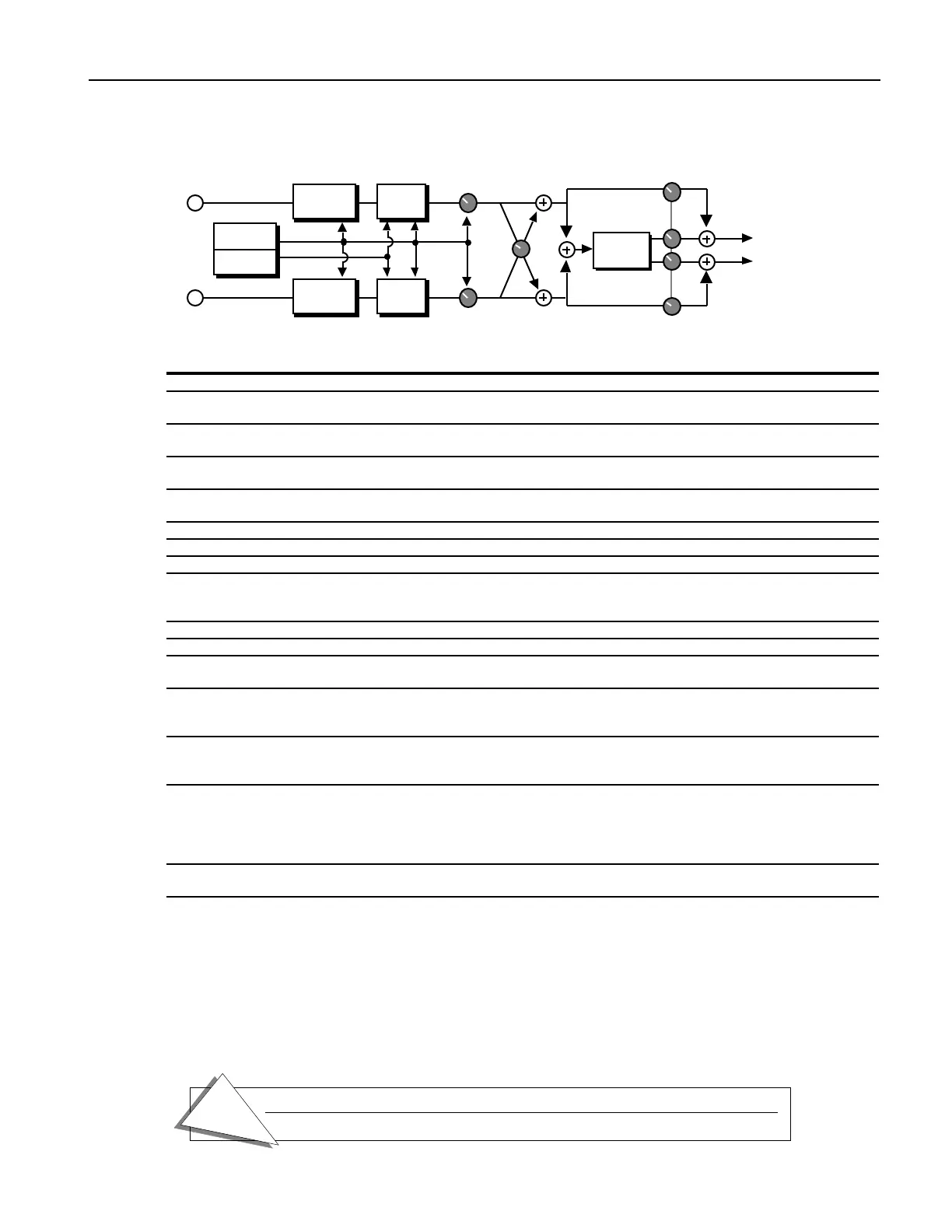

19 SpinnerRev
DDL LPF
DDL LPF
Gain Center
Gain Center
L/R LFO
F/B LFO
+
+ +
+
- - -
-
Cancellation
Reverb Mix
Output
L
R
Reverb
Right
Left
C
o
m
b
i
n
e
s
a
p
s
e
u
d
o
-
t
h
r
ee
d
i
m
e
n
s
i
o
n
a
l
p
a
nn
e
r
w
i
t
h
t
h
e
s
t
a
n
d
a
r
d
r
e
v
e
r
b
.
Parameter Range Description
LFO Rate 1/1 Sys to 1/32 Sys, 0.0Hz
to 20.0Hz
Controls the rate of modulation applied to the spinner.
LFO Shape Triangle, Sine, Sawtooth,
Square, Asym, Step
Determines the shape that the LFO will use for modulation.
LFO Phase -180deg to +180deg Controls the relative phase between the left and right and front and back
LFOs. Set this to ±90 deg for circular motion.
DDL Mod Depth 0.0ms to 10.0ms Controls the left to right mod depth to delay time. Try setting this to 0.3
ms for average head size.
DDL ModCenter 0.0ms to 50.0ms Fixed delay time.
Level Mod 0% to 100% Left to right LFO mod depth to level.
L-to-R Mod 0% to 100% Left to right LFO mod depth to filter.
F-to-B Mod 0% to 100% Front to back LFO mod depth to filter. If the sum of the L-to-R Mod and
F-to-B Mod is greater than 100%, the filter can “thump” as it closes
down.
Cancellation -99% to +99% Sets the depth and phase of the opposite speaker cancellation signal.
Rev Mix Full Dry to Full Wet Controls the Dry/Wet mix of the reverb.
Decay 0.0sec to 10.0sec Controls the amount of time it takes for the reverb to decay after the input
signal stops.
HF Damping 100Hz to 21.2kHz Controls the rate of attenuation of high frequencies in the decay of the
reverberation. Increasing the value of this parameter will gradually filter
out (dampen) more and more high frequency energy.
HF Bandwidth 100Hz to 21.2kHz Acts as a low pass filter on the signal going into the reverb, controlling
the amount of high frequencies that will pass. The higher the setting, the
more high frequencies are allowed to pass.
Diffusion 1 0 to 100 Smears the input signal transients, to diffuse and smooth the sound.
Lower values will cause impulse sounds to appear as a series of discrete
echoes, while higher values tend to increase the smear (smoother
sounding with fewer discrete echoes). We recommend settings of 50 for
starters.
Diffusion 2 0 to 100 This parameter, similar to and in series with Diffusion1, controls lower
frequency ranges.
Definition 0 to 100 Controls the rate at which echo density is increased with time. Setting
this too high can cause the echo density to build at a rate which exceeds
the decay rate.
