Chapter 8—Insert Effect Parameters
To access the Parameters described on this page (unless otherwise noted):
Press Effects, turn the Parameter knob to select Insert Effect, and press Enter. Turn the Parameter
knob to select the parameter, and use the Value knob to change the parameter's Setting.
ENSONIQ MR-Rack Musician’s Manual 19

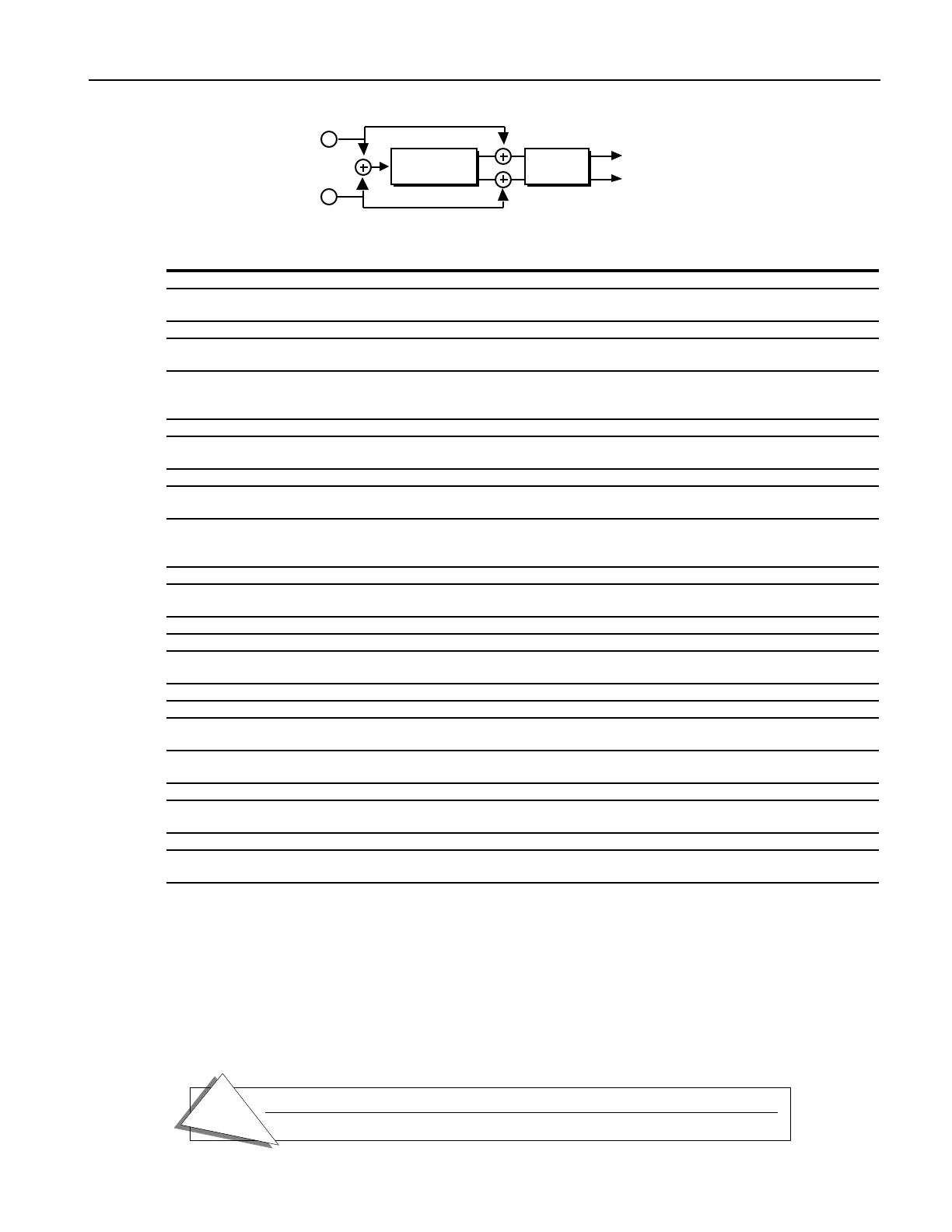

4-Tap DDL
Right
Left
Output
Flanger
L
R
C
o
m
b
i
n
e
s
f
o
u
r
i
n
d
e
p
e
n
d
e
n
t
c
o
n
t
r
o
ll
a
b
l
e
d
i
g
i
t
a
l
d
e
l
a
y
s
w
i
t
h
a
f
l
a
n
g
e
r
.
Parameter Range Description
Dly1 Time 1/1 Sys to 1/32 Sys, 0ms to
630ms
Sets the amount of delay time for the first independent delay.
Dly1 Level Off, -49.5dB to +12.0dB Adjusts the volume of the delayed signal against the original dry signal.
Dly1 Feedback -99% to +99% Determines the amount of signal that will be fed from the output back
into the input, increasing the number of repeats in the delay.
Dly1 Damping 100Hz to 21.2kHz Controls the cutoff of a low pass filter on the feedback signal, which
adjusts the amount of damping to the feedback signals. The higher the
number, the more the signals are damped.
Dly1 Pan Full <L to Full >R Determines the location of the delay in the stereo spectrum.
Dly2 Time 1/1 Sys to 1/32 Sys, 0ms to
630ms
Sets the amount of delay time for the second independent delay.
Dly2 Level Off, -49.5dB to +12.0dB Adjusts the volume of the delayed signal against the original dry signal.
Dly2 Feedback -99% to +99% Determines the amount of signal that will be fed from the output back
into the input, increasing the number of repeats in the delay.
Dly2 Damping 100Hz to 21.2kHz Controls the cutoff of a low pass filter on the feedback signal, which
adjusts the amount of damping to the feedback signals. The higher the
number, the more the signals are damped.
Dly2 Pan Full <L to Full >R Determines the location of the delay in the stereo spectrum.
Dly3 Time 1/1 Sys to 1/32 Sys, 0ms to
630ms
Sets the amount of delay time for the third independent delay.
Dly3 Level Off, -49.5dB to +12.0dB Adjusts the volume of the delayed signal against the original dry signal.
Dly3 Pan Full <L to Full >R Determines the location of the delay in the stereo spectrum.
Dly4 Time 1/1 Sys to 1/32 Sys, 0ms to
630ms
Sets the amount of delay time for the fourth independent delay.
Dly4 Level Off, -49.5dB to +12.0dB Adjusts the volume of the delayed signal against the original dry signal.
Dly4 Pan Full <L to Full >R Determines the location of the delay in the stereo spectrum.
LFO Rate 1/1 Sys to 1/32 Sys, 0.0Hz
to 20.0Hz
Controls the rate of the modulation applied to the flange effect.
LFO Shape Triangle, Sine, Sawtooth,
Square, Asym, Step
Determines the shape that the LFO will use for pitch modulation.
LFO Phase -180deg to +180deg Controls the relative phase between left and right LFOs.
Flanger Depth 0.0ms to 25.0ms Controls the range of the high-to-low frequency sweep in the flanger
effect.
FlangerCenter 0.0ms to 50.0ms Sets the sweep mid-point of the flanger effect.
Notch Depth 0% to 100% Controls the depth of the peaks and notches produced by the flanger. This
parameter should be set to 100% for maximum effect.
Feedback -99% to +99% Controls the amount of feedback applied to the flanger. Positive or
negative values will impart a different tonality to the flange effect, either
accenting the peaks or the notches.
