Chapter 8—Insert Effect Parameters
To access the Parameters described on this page (unless otherwise noted):
Press Effects, turn the Parameter knob to select Insert Effect, and press Enter. Turn the Parameter
knob to select the parameter, and use the Value knob to change the parameter's Setting.
12 ENSONIQ MR-Rack Musician’s Manual

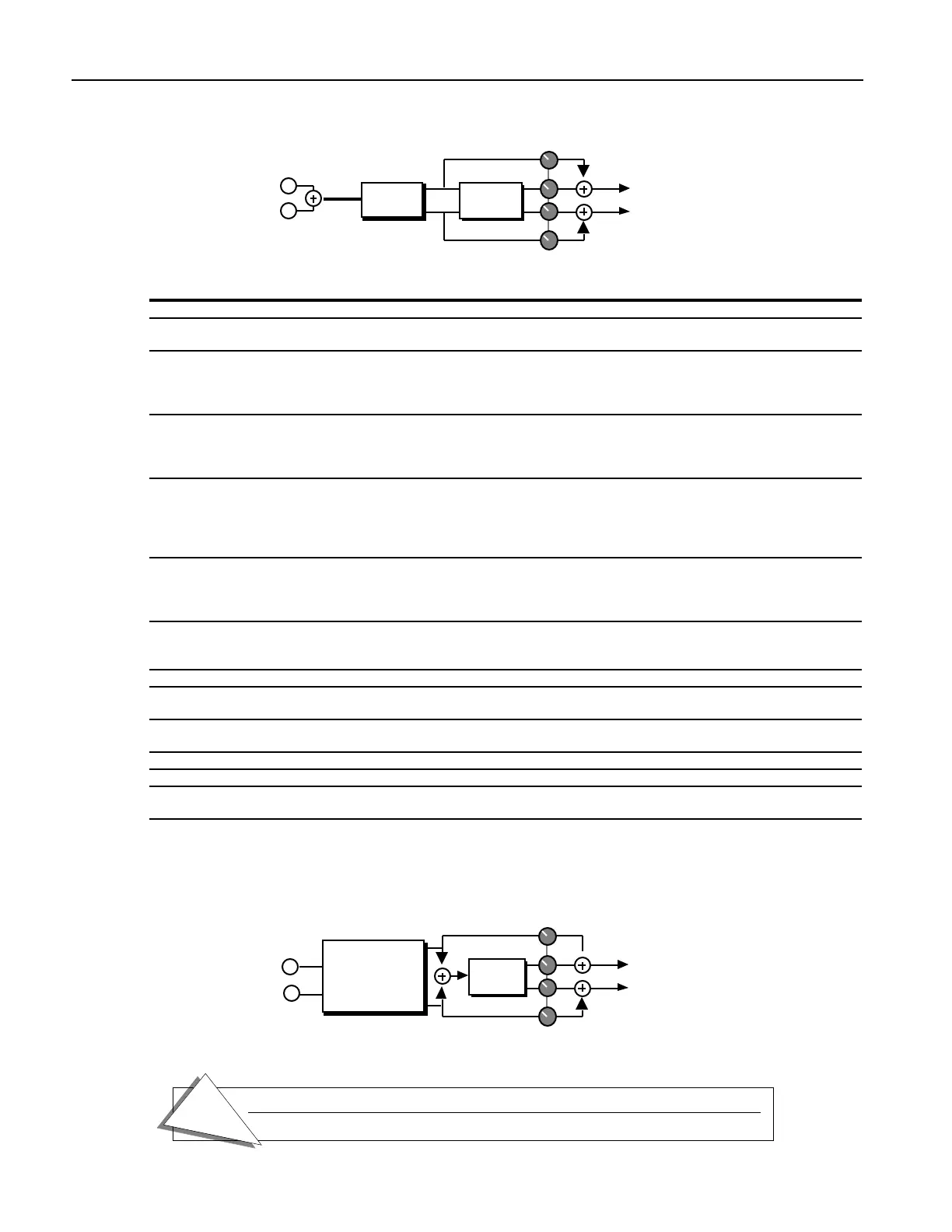

14 Rev→Phaser
Phaser Mix
Output
L
R
PhaserReverb
Right
Left
C
o
m
b
i
n
e
s
a
p
l
a
t
e
r
e
v
e
r
b
w
i
t
h
a
12
-
p
o
l
e
p
h
a
s
e
s
h
i
f
t
e
r
.
Parameter Range Description
Decay 0.0sec to 10.0sec Controls the amount of time it takes for the reverberation to decay away
to a very low level after the input signal stops.
HF Damping 100Hz to 21.2kHz Controls the rate of attenuation of high frequencies in the decay of the
reverberation. As natural reverb decays, some high frequencies tend to
get absorbed by the environment. Increasing the value of this parameter
will gradually filter out (dampen) more and more high frequency energy.
HF Bandwidth 100Hz to 21.2kHz The high frequency bandwidth acts as a low pass filter on the signal
going into the reverb, controlling the amount of high frequencies that will
pass into the effect. The higher the setting, the more high frequencies are
allowed to pass. This functions like a tone control on a guitar.
Diffusion 1 0 to 100 Smears the input signal transients, to diffuse and smooth the sound.
Lower values will cause impulse sounds to appear as a series of discrete
echoes, while higher values tend to increase the smear (smoother
sounding with fewer discrete echoes). We recommend settings of 50 for
starters.
Diffusion 2 0 to 100 This parameter, similar to and in series with Diffusion1, performs the
same way but controls lower frequency ranges. Experiment with different
levels between the diffusion parameters to find the settings that are right
for your source.
Definition 0 to 100 Controls the rate at which echo density is increased with time. Setting
this parameter too high can cause the echo density to build at a rate which
exceeds the decay rate.
Phaser Mix Full Dry to Full Wet Controls the Dry/Wet mix of the phaser.
LFO Rate 1/1 Sys to 1/32 Sys, 0.0Hz
to 20.0Hz
Controls the rate of the modulation applied to the phaser.
LFO Shape Triangle, Sine, Sawtooth,
Square, Asym, Step
Determines the shape that the LFO will use for pitch modulation.
Phaser Depth 0 to 100 Controls the amount of modulation applied to the phaser.
Phaser Center 0 to 100 This parameter controls the mid-point of the phaser.
Notch Depth 0% to 100% Controls the depth of the peaks and notches produced by the phaser. This
parameter should normally be set to 100%.
Feedback -99% to +99% Controls the amount of feedback applied to the phaser. Positive or
negative values will impart a different tonality to the phaser effect, either
accenting the peaks or the notches.
15 Chorus→Rev
Reverb Mix
Output
L
R
Right
Left
Stereo Chorus Reverb
C
h
o
r
u
s
→
R
e
v
c
o
m
b
i
n
e
s
a
r
i
c
h
s
o
u
n
d
i
n
g
c
h
o
r
u
s
w
i
t
h
t
h
e
s
t
a
n
d
a
r
d
r
e
v
e
r
b
.
