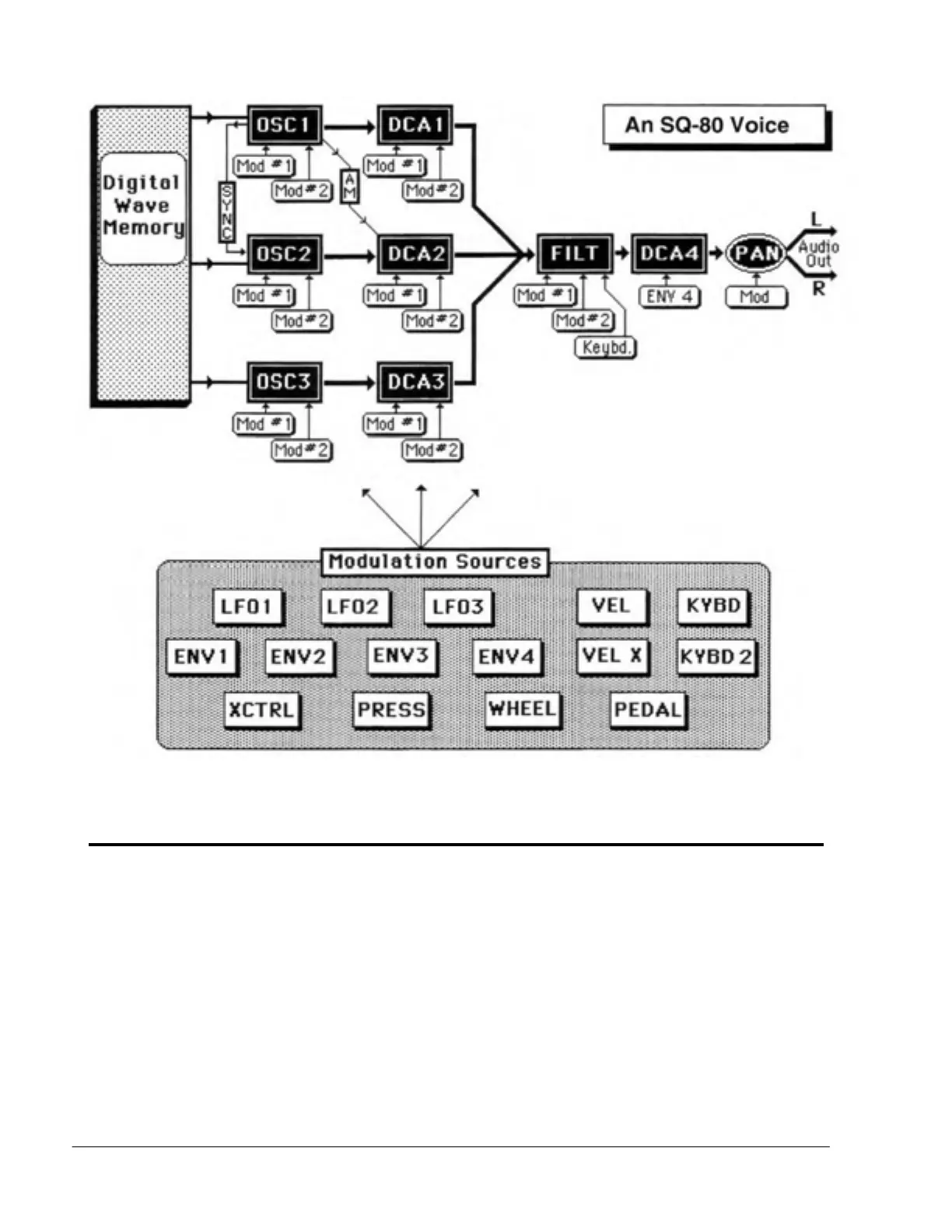

Any of 'these 15 Modulation Sources can be independently
assigned wherever a MOD is indicated above.
For each of the SQ-80's 8 voices:
....Each Oscillator plays a Wave from the Digital Wave Memory;
-->The output of each Oscillator passes through the same-numbered
DCA (Digitally Controlled Amplifier);
-
-
>The output of the 3 DCA's passes through the Four-Pole Low Pass Filter;
-The output of the Filter goes to the final DCA - DCA 4.
-->The output of DCA 4 goes to the Panner, which pans the Program
between the Left and Right Audio Outputs.
-->Wherever a "Mod" is indicated in the above diagram, any of the 15
available Modulators may be assigned to vary the "Manual" setting.
28 Section 3 — Voice Programming
