SQ-80 — Musician's Manual

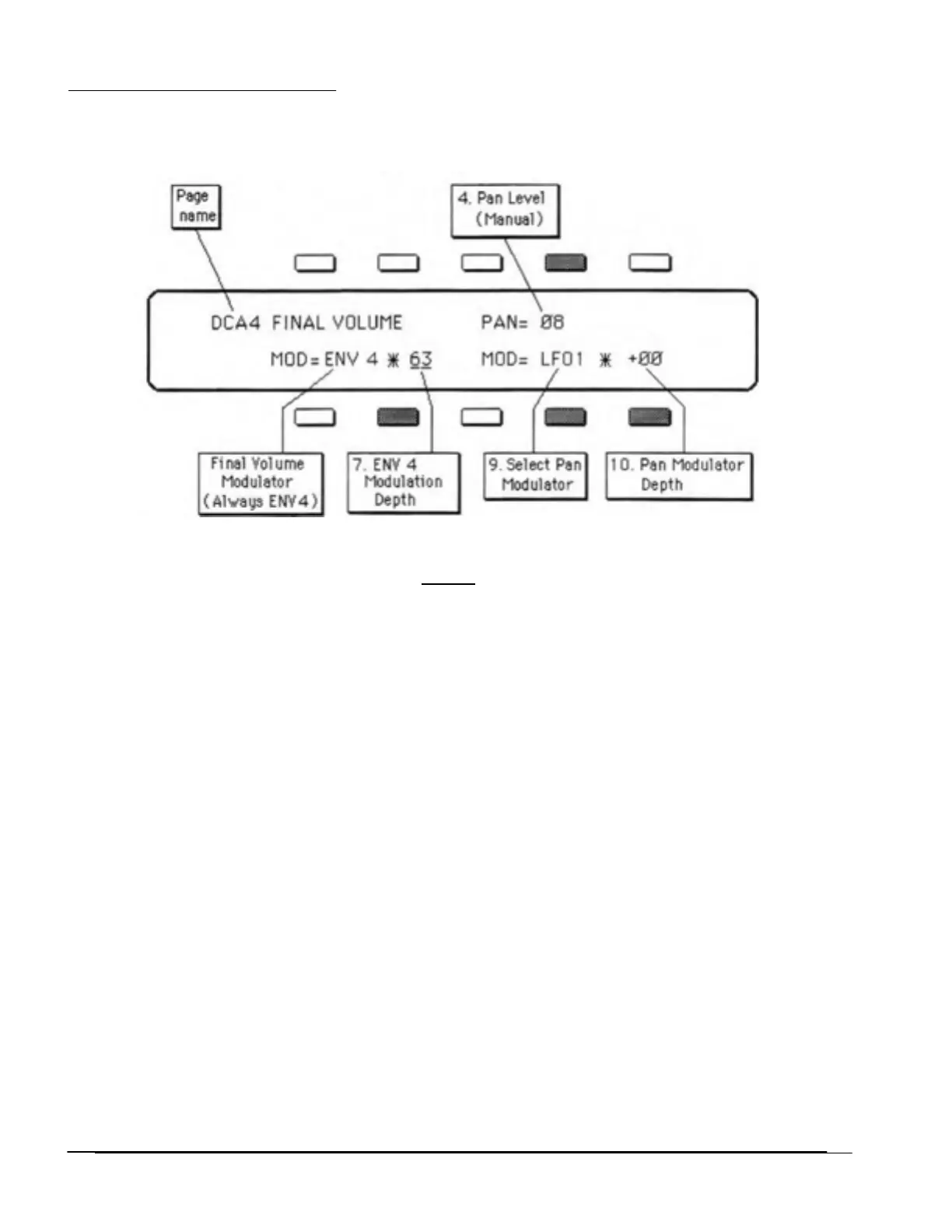

[DCA 4] FINAL VOLUME PAGE
Controls Program Volume and Panning.
( I nactive Buttons appear in White)
Note: The Modulation Source for [DCA 4] is alwa
y
s [ENV 4].
The outputs of the three Oscillators, after passing through the Filter, go to [DCA4]. This Final DCA
(Digitally Controlled Amplifier), together with [ENV4], which is fixed as its Modulator, determines the
overall volume envelope of the Program. You will always hear the effect of Envelope 4 on the Program
it is "hard wired" to DCA 4 and always controls the final volume of the Program.
Use this page to:
1) Adjust the amplitude of the entire Program;
2)
Pan the Program left, right or center; and
3) Modulate the Program Pan using any of the 15 available Modulation Sources.
ACTIVE CONTROLS:
4. PAN — Manual Level
Pans the Program the between the Left and Right Outputs. Possible Values range from 00 (all
the way to the Left), to
15 (all the way Right.) A value of 08 will pan the Program to Center. Note
that the
SQ-80's audio outputs must be connected in Stereo for this parameter to have any effect.
Range:
00 to 15.
7. ENV 4 MOD. DEPTH — Final Volume
Determines the amount by which DCA 4 will be Modulated by ENV 4, which is fixed as its
Modulator. The net effect of this parameter is to increase or decrease the Volume of the entire
Program. This is useful for matching the levels of different Programs, to avoid radical volume
54 Section 3 — Voice Programming
