Section 7 — Effect Parameters TS-12 Musician’s Manual
32
PAN Range: -99 to +99
This parameter allows you to assign the location of Voice-1 in the stereo field. A value of -99
would be far left, and +99 would be far right.
VC-2 FINE Range: -99 to +99
This parameter allows you to fine tune the pitch of Voice-2.
LEVEL Range: 00 to 99
This parameter allows you to adjust the volume of Voice-2. A setting of 00 would eliminate any
audible pitch shift.
PAN Range: -99 to +99
Allows you to assign the location of Voice-2 in the stereo field. A value of -99 would be far left,
and +99 would be far right.
LFO RATE Range: 00 to 99
Controls the rate of pitch modulation that creates a chorusing effect. To achieve chorusing, this
rate must be very low.
WIDTH Range: 00 to 99
Controls the excursion of pitch modulation. Since the rate is usually very low, then the width is
usually very large.
59 PITCH SHIFTER + DELAY
PITCH SHIFTER + DELAY combines a pitch shifter with a digital delay. PITCH SHIFTER +
DELAY uses a continual crossfading technique of pitch shifting. This technique maintains the
stereo field exactly. This pitch shifter works best for large pitch shift ratios, in some
circumstances. Another feature of this algorithm is a digital delay that feeds back into the pitch
shift. This feature allows spiraling upward or downward pitch shifts. The EFFECT MIX FX-1
and FX-2 parameters can be routed into the effect with different Dry/Wet mixes. This algorithm
sounds best with a Mix of wet and dry. Try using a modulation controller for this parameter to
fade in or fade out the pitch shifted signal.

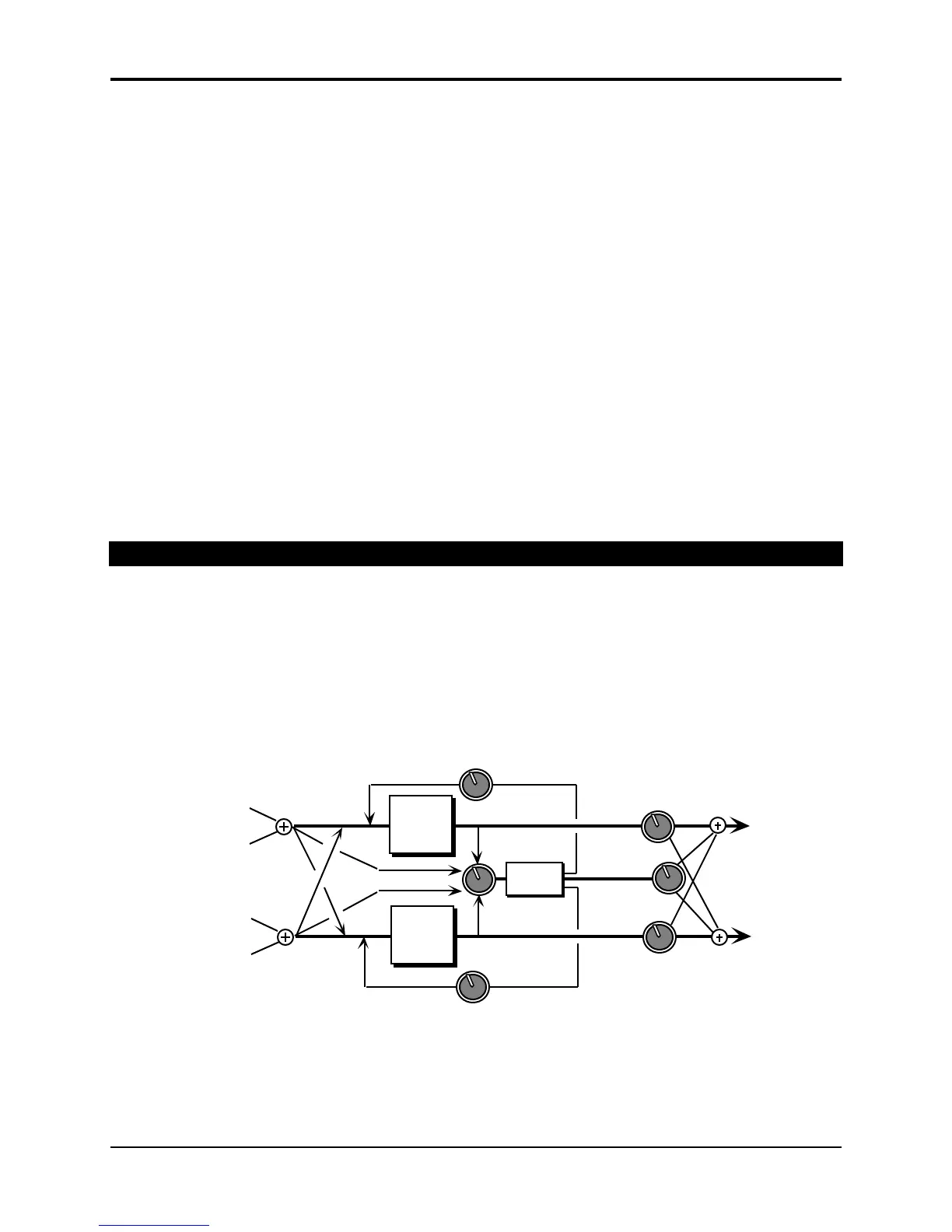

PITCH SHIFTER + DELAY Signal Routing
FX-1 Left
FX-2 Left
FX-1 Right
FX-2 Right
Delay Mix
Dry Level
Pan
L
R
Vc 2
Stereo
Shifter
Pan
Main
Outputs
Vc 1
Stereo
Shifter
Regen
Regen
Delay
VOICE-1 SEMI Range: -12 to +12
Allows you to adjust the pitch of Voice-1 up to an octave above or below the original pitch in
semi-tones.
